2. InformatIon

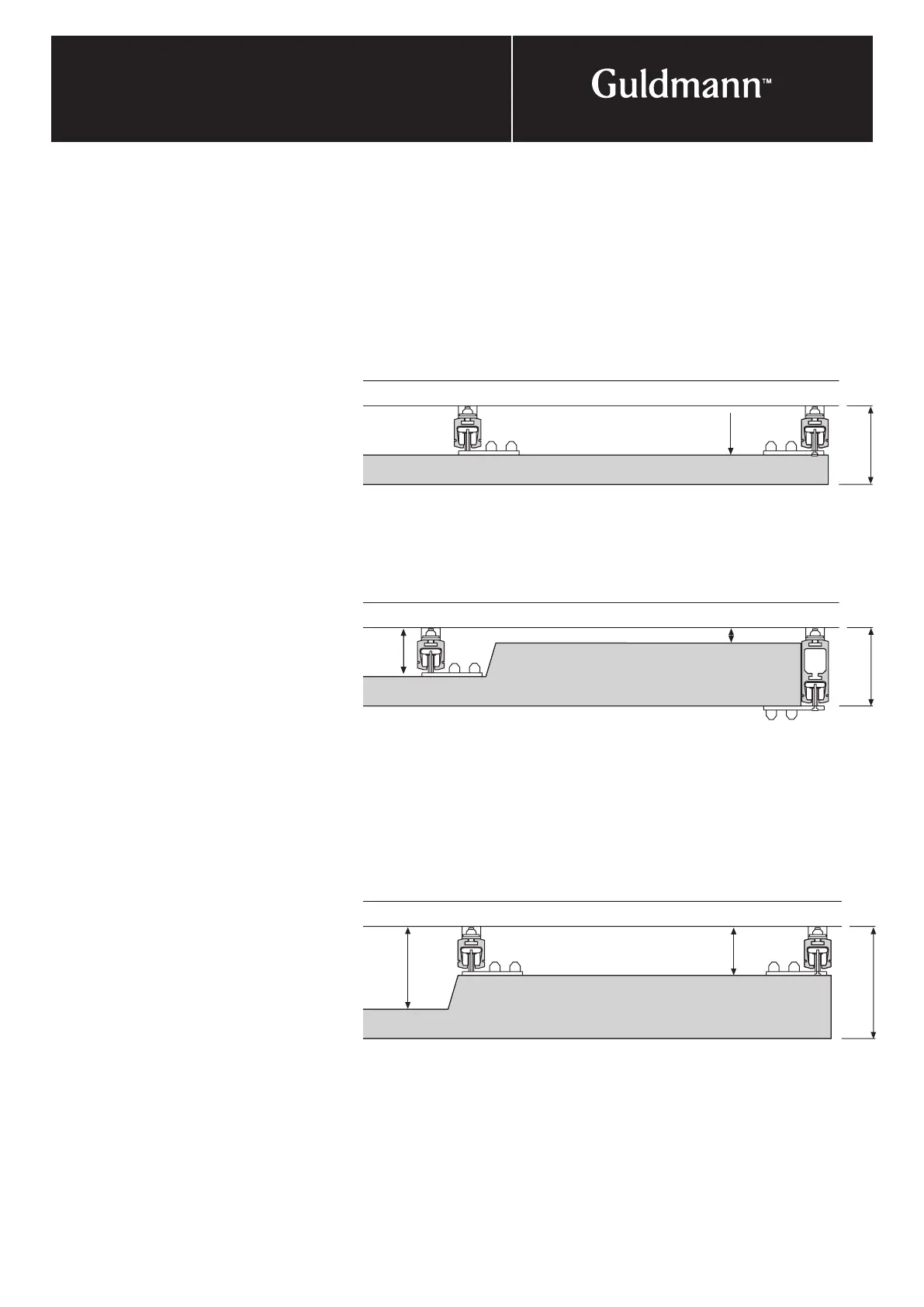

Rail combinations in room-covering systems
– intermediate suspension underhanging traverse rail
L. Mini parallel rails with
underhanging mini traverse
rail, to a combination system
The rails can be cut to size so that room-covering and
single-track systems can be combined, even though
different rail types are used in the two systems.
M. Mini/maxi parallel rails with
underhanging maxi traverse
rail /intermediate suspension,
cut-out to a combination
system.
This solution is the most fre-
quently used of the combination
solutions and, thanks to the solu-
tion with intermediate suspensi-
on, it has a harmonious appe-
arance. In addition the height of
the combined system can be
minimised with the help of a mini-
rail facing the combination side.
N. Mini parallel rails with
underhanging cut-out maxi-rail
to a combination system
