4. electrIcal connectIon

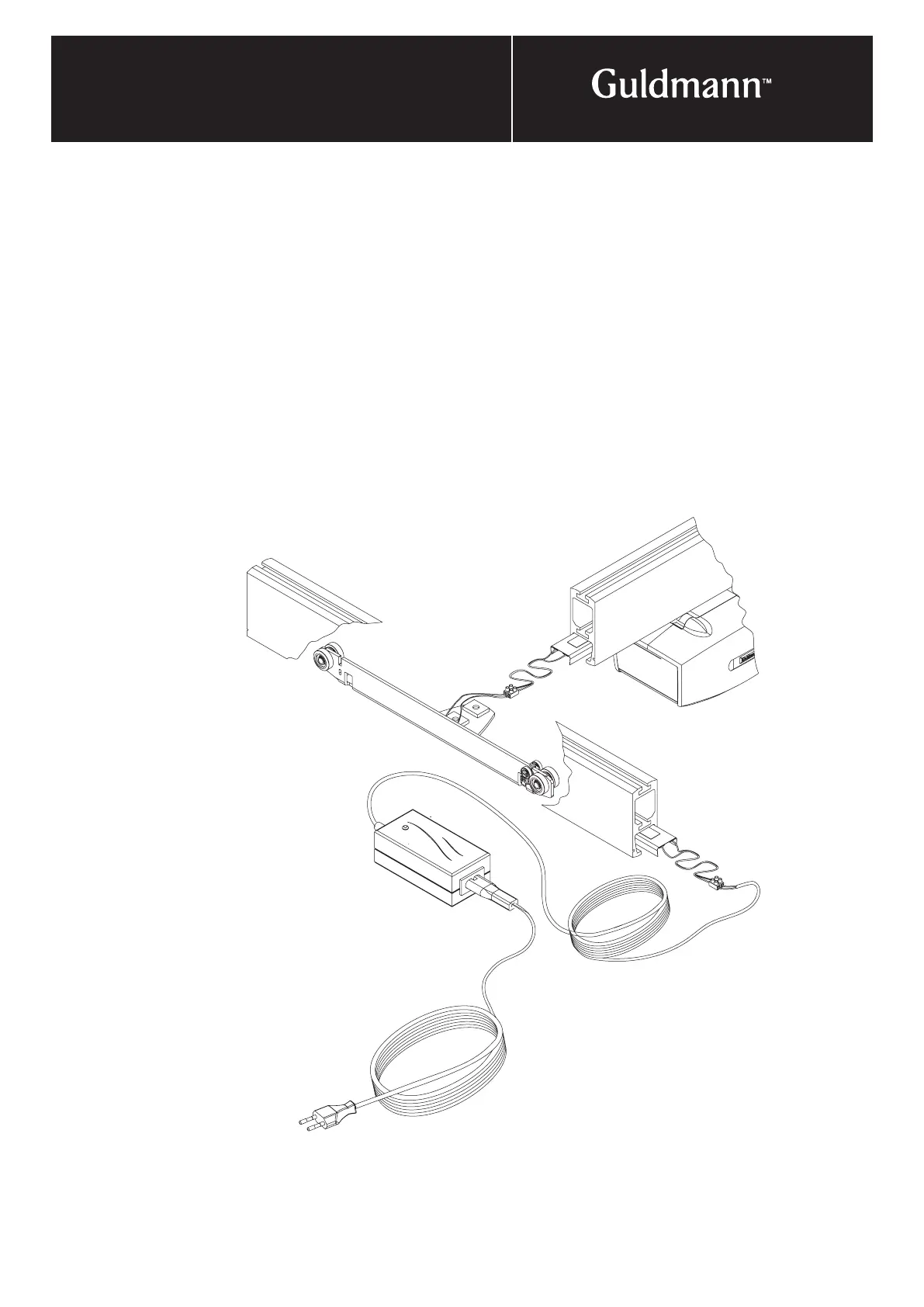

Charging kit for room-covering
mini-maxi-jumbo rail with GH2
1. Prepare the travelling trolley with power pick-up.
2. Fit the charging house in the parallel rail and connect
it to the charger via the cable connector.
3. Install the charging house/station on the traverse rail.
4. Fit the wire from the power pick-up on the travelling
trolley to the cable connector from the charging house
on the traverse rail.
Note: When using DC/charger the polarity + to + must be
respected. (+ is the right side when the hoist is run
into
the charging station).
5. Mark the charging station with red battery labels.
6. Size the power pick-up to fit the mini-, maxi- and
jumbo-rails.
7. Adjust the length of the 110-240 V wire.
