3. InstallatIon
When installing a GH2 HD Twin DC, two charging stations
must be used: item number 12385 – Charging kit station,
and item number 123865 – through going charging
station. Please note that a charger must be used for each
charging house, i.e. two of item number 123753.
One transformer must be used when installing GH2 HD
Twin AC.

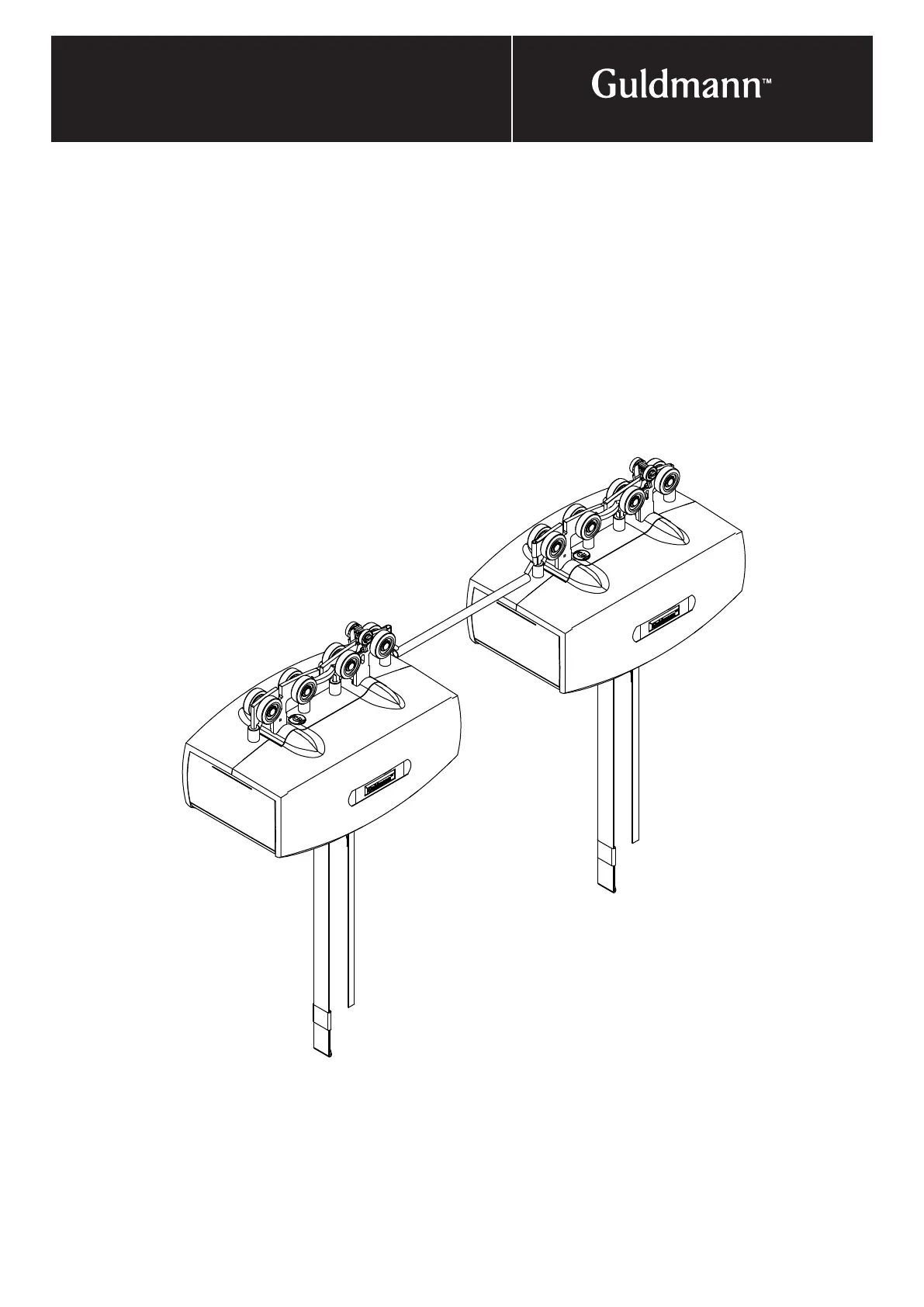

When installing, the connection rod must be fitted between
the two hoists so that it is positioned in the two u-profiles
that are pre-fitted on the castors. The connection bracket
must rest on the yellow guide bushings, and it must turn so
that it is fitted beneath the rail. The cable that connects the
two hoists must be lead through the connection bracket
and connected to the printed circuit boards fitted on the
motor side.
Installing of GH2 HD Twin
