3. InstallatIon
Endstop
Endstops must always be used in connection with rail
stops, whether free hanging, or butting up to a wall or other
elements.
• The endstop is placed in the rail before it is fitted.
• Before the endstop is placed in the rail, check that the
flange nuts are positioned correctly.
• When the rail system has been fully installed, place the
endstops in the correct position at the rail ends.
• If there is a risk that the end stop may fall out, drill a
hole 4.5 mm through the rail and not through
the angle fitting in the end stop.
• Hammer the accompanying cylinder pin into the end-
stop and rail.
• When dismantling the end stop the screws must be
completely screwed out; the angle profile with cylinder
pin can be tilted out so that the pin remains in place in
the angle profile.

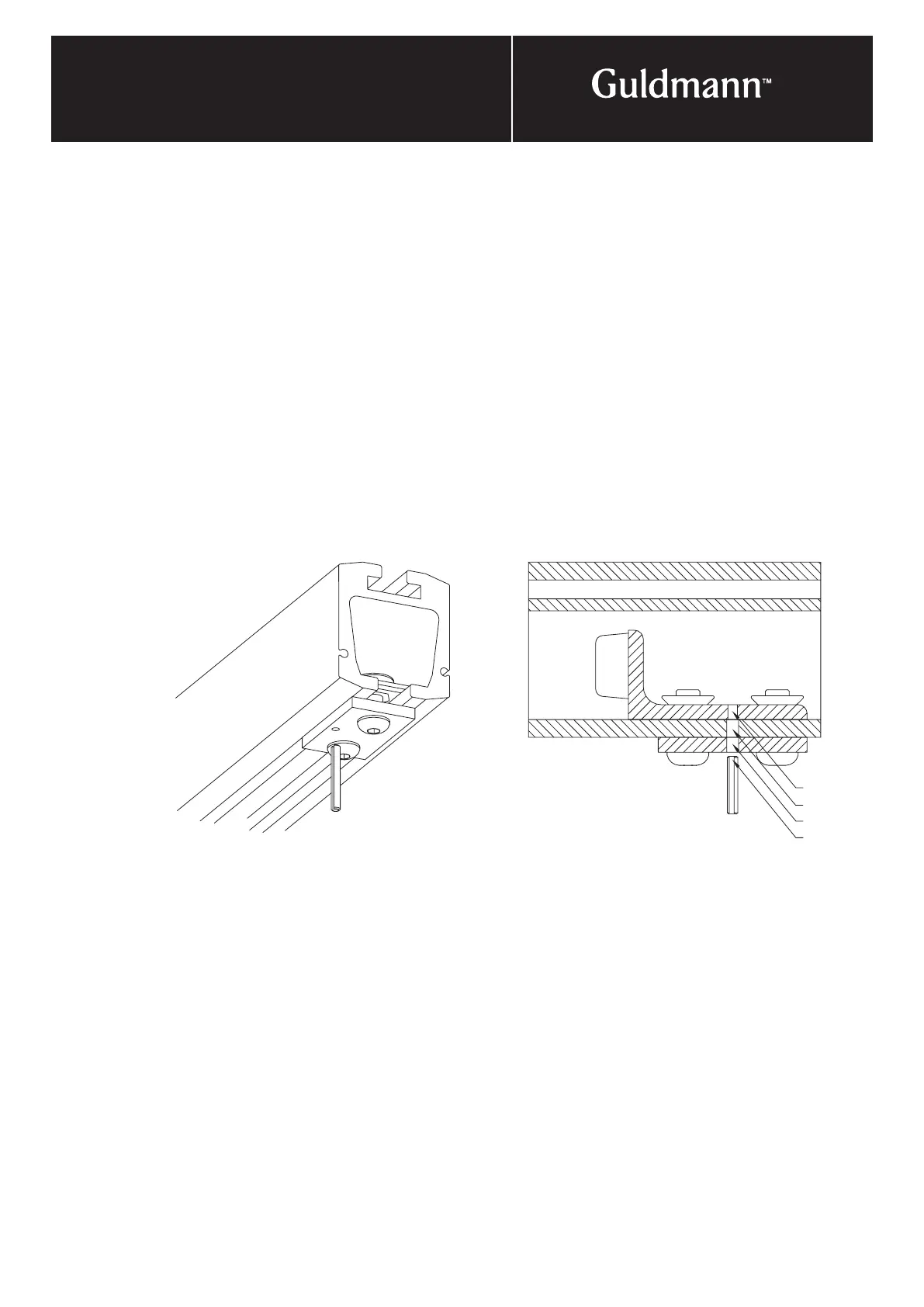

Fitting of endstops
