4. electrIcal connectIon
Combi-locks CL3
Double electrical

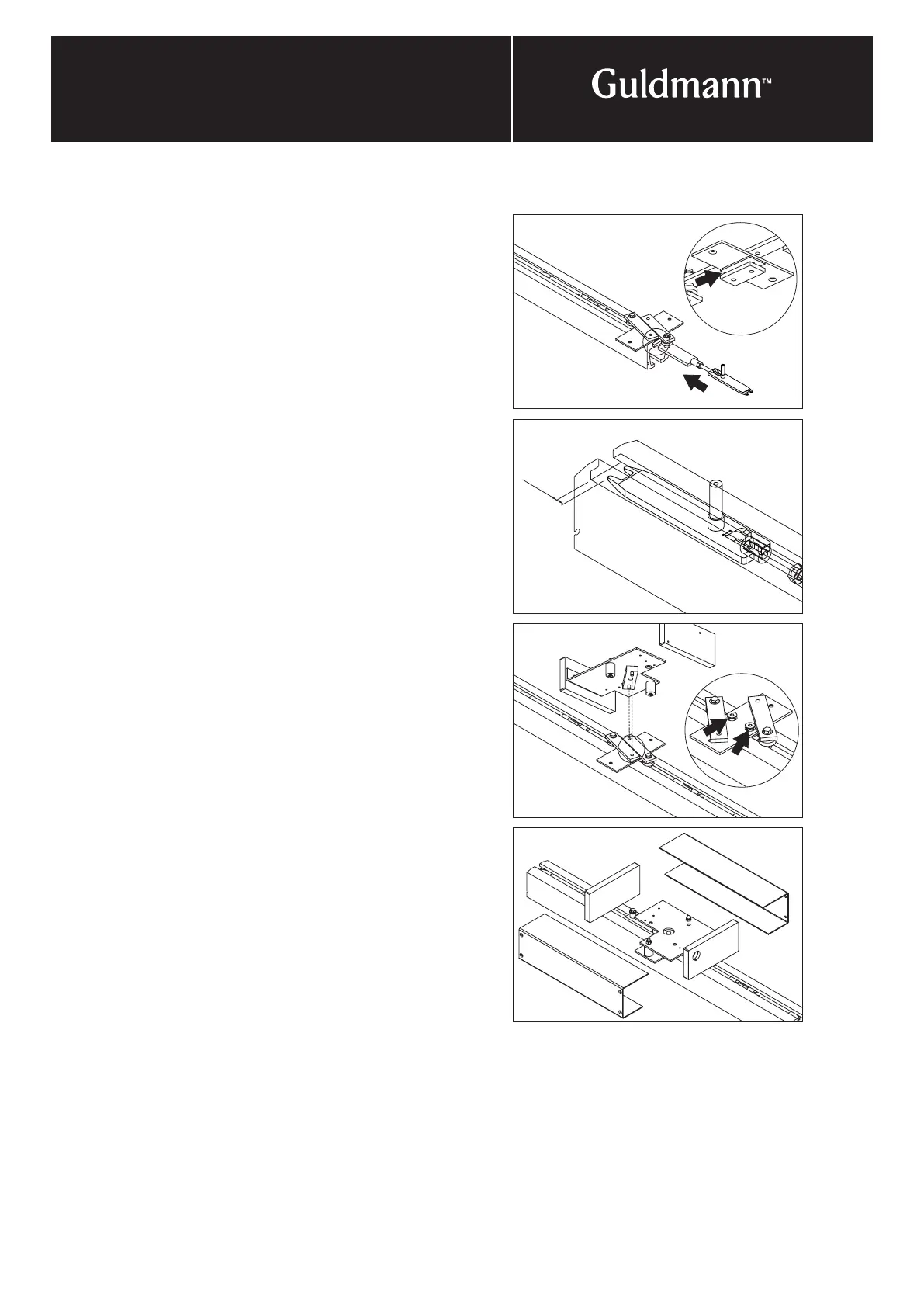

Mounting of double Combi-lock
Remove side and end covers and the motor plate.
The small fixing plate appears, which is pushed into
the rail together with the tongues.
When the length of the rail and tongues are to be adapted,
it is important that the tongues stop max. 0.5mm/ 1/16”
before the rail end.
The tongue must be able to move freely and easily in the
rail track.
The two plastic parts on the tongues must “overlap” as
illustrated. Insert the two pins underneath the motor plate
in the holes of the plastic parts. Now move the Combi-lock
forward and backward in the rail until the correct position
has been found. Remove the motor plate again and mount
the safety locks before fastening the fixing plate with the
screws as illustrated with the arrows.
Now mount the motor plate again on the fixing plate and
connect the wires according to the wiring diagram of the
Combi-lock. Finally mount the side covers.
