GW Instek PSU Series User Manual

PSU Series User Manual
102

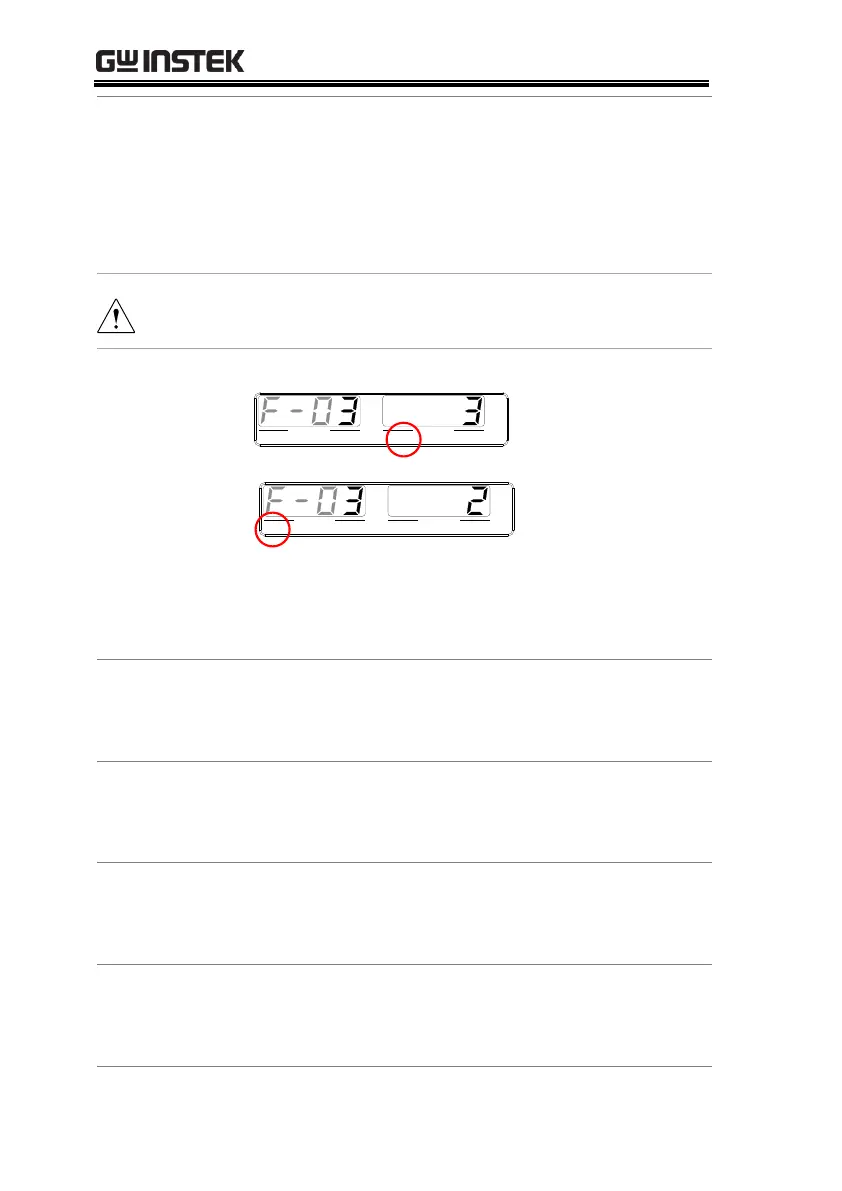

V-I Mode
Selects High Speed Priority or Slew Rate Priority
for CV or CC mode. The voltage or current slew
rate can only be edited if CC/CV Slew Rate
Priority is selected. The ISR indicator will be lit for
CC Slew Rate Priority and the VSR indicator will
be lit for CV Slew Rate Priority.
Note
CC and CV Slew Rate Priority mode are disabled when
voltage/current output is set to external control.
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
V A
CC Slew Rate priority
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
V A
CV Slew Rate Priority
F-03
0 = CV high speed priority
1 = CC high speed priority
2 = CV slew rate priority
3 = CC slew rate priority
Rising Voltage
Slew Rate
Sets the rising voltage slew rate. Only applicable if
V-I Mode is set to CV Slew Rate Priority.
F-04
0.001 ~ max. V/msec
Falling Voltage
Slew Rate
Sets the falling voltage slew rate. Only applicable if
V-I Mode is set to CV Slew Rate Priority.
F-05
0.001 ~ max. V/msec
Rising Current
Slew Rate
Sets the rising current slew rate. Only applicable if
V-I Mode is set to CC Slew Rate Priority.
F-06
0.001 ~ max. A/msec
Falling Current
Slew Rate
Sets the falling current slew rate. Only applicable if
V-I Mode is set to CC Slew Rate Priority.
F-07
0.001 ~ max. A/msec
