GW Instek PSU Series User Manual

COMMUNICATION INTERFACE
165
UART Remote Interface
Configure UART
Overview
The PSU uses the IN & OUT ports for UART
communication coupled with RS232 (GW Part
number PSU-232) or RS485 adapters (GW part
number PSU-485).

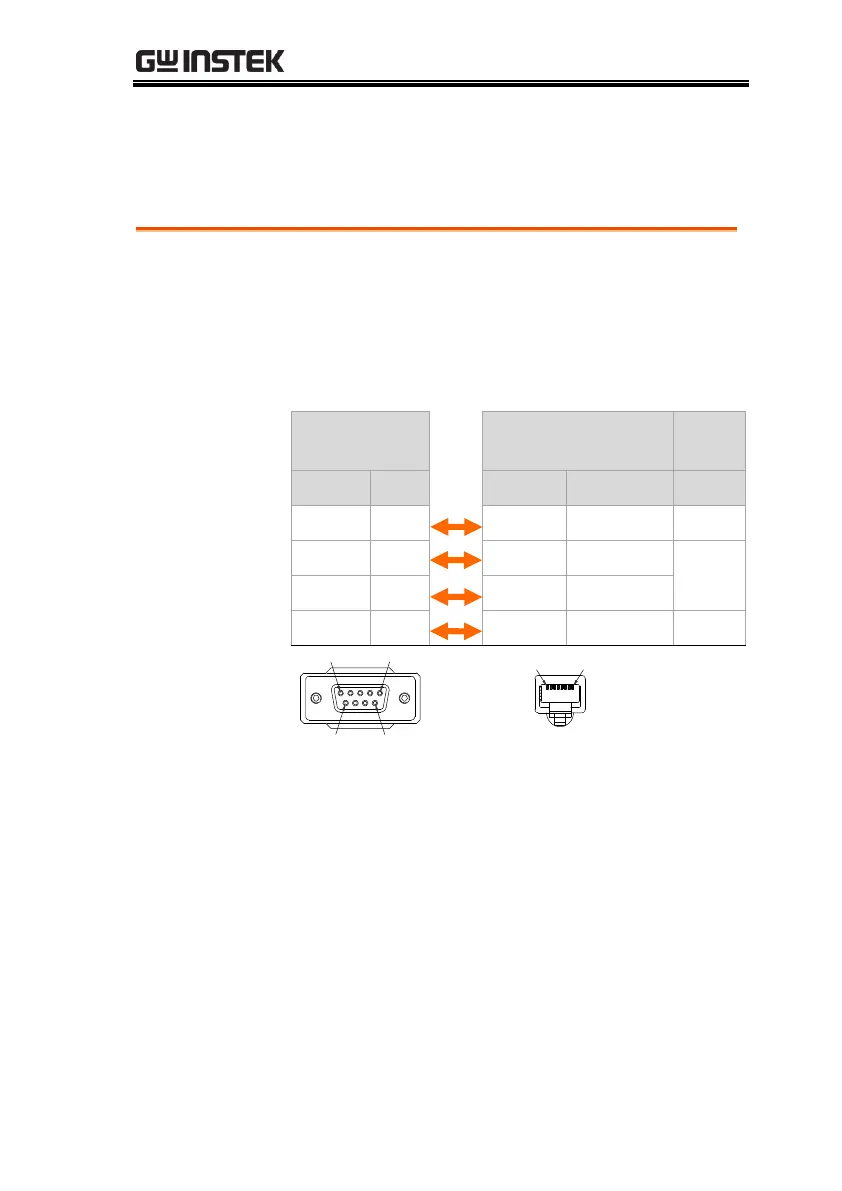

The pin outs for the adapters are shown below.
PSU-232 RS232
cable with DB9
connector
DB-9
Connector
Remote IN Port(RJ-45)
Remark
Pin No.
Name
Pin No.
Name
Housing
Shield
Housing
Shield
2
RX
7
TX
Twisted
pair
3
TX
8
RX
5
SG
1
SG
5 1
9 6
1 8
(RJ-45)
(DB-9)
