GW Instek PSU Series User Manual

OPERATION
61
Voltage Sense
The PSU power supplies can be operated using local or remote
voltage sense. By default the PSU ships configured for local sense.

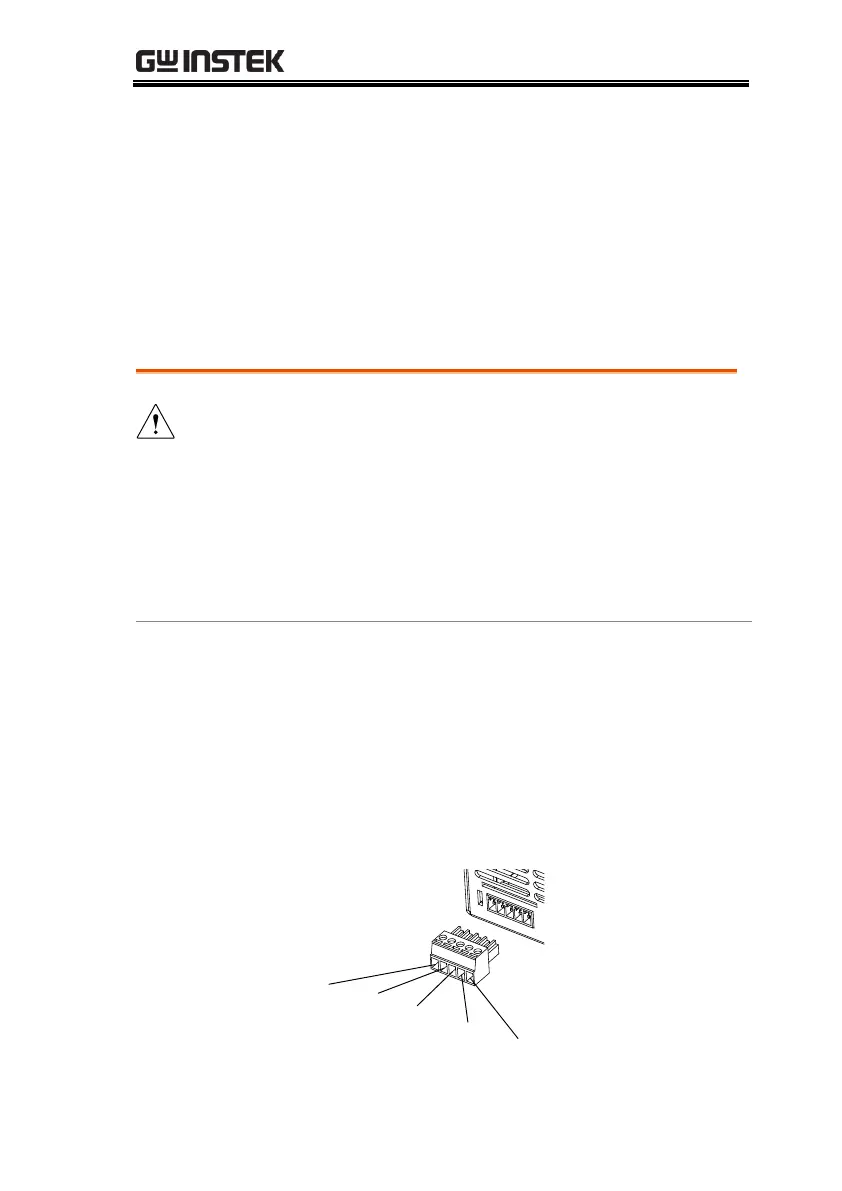

Remote Sense Connector
The Remote Sense connector includes a detachable plug to facilitate
making the sense connections. The remote sense connector also has
a safety cover.
WARNING
Ensure the output is off before handling the remote
sense connector.
Use sense cables with a voltage rating exceeding the
isolation voltage of the power supply.
Never connect sensing cables when the output is on.
Electric shock or damage to the power supply could
result.
Remote Sense
Connector
Overview
When using the remote sense connector make sure
the wires that are used follow the following guidelines:
Wire gauge:
AWG 28 to AWG 16
Wire diameter:
0.320mm-1.29mm
Strip length:
5mm // 0.2 in.
+S
+LS
NC
-LS
-S
+S: Remote(+) sense
+LS: Local (+) sense
NC: Not connected
-LS: Local (-) sense
-S: Remote (-) sense
