GW Instek PSU Series User Manual

OPERATION
81

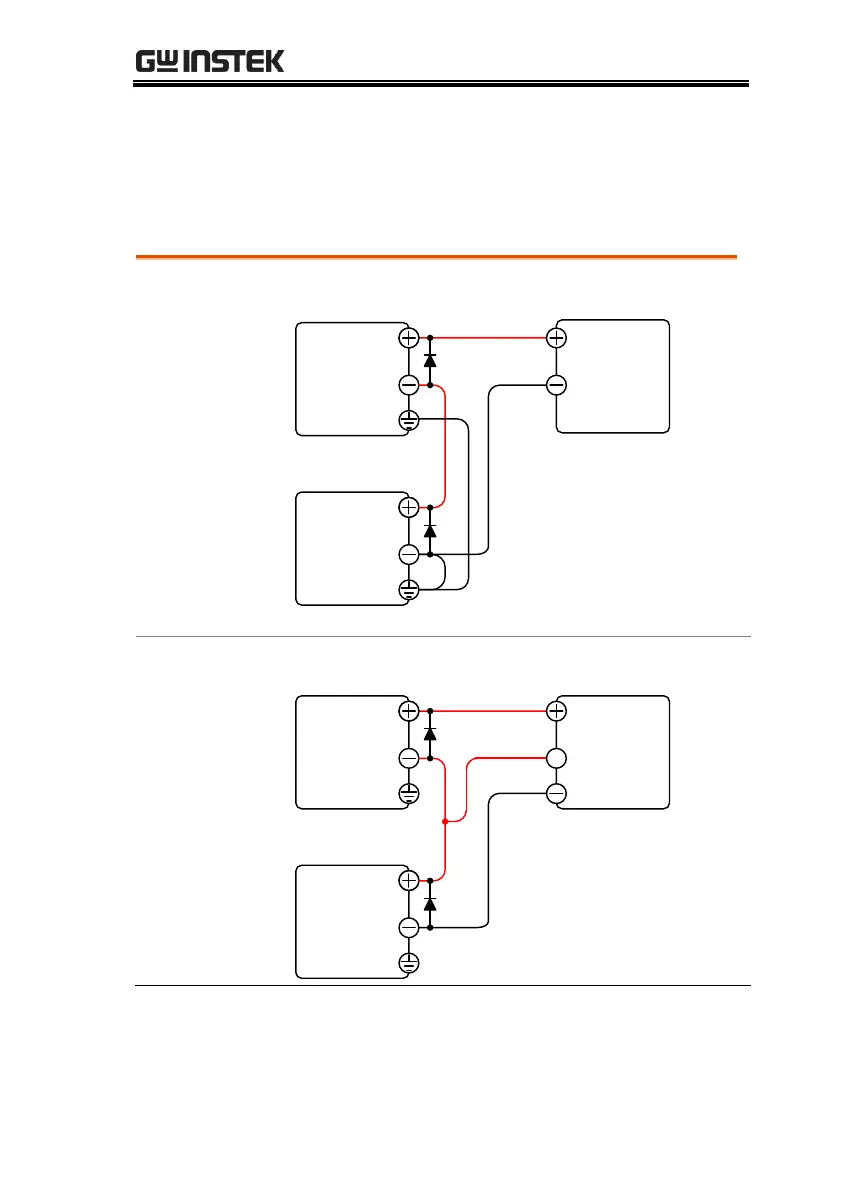

Series Connection
If using the PSU in series, please be aware that each unit acts
independently and thus there are no special communication buses
for serial connections.
Series Connection
to increase
Voltage Output
Unit #2
Unit #1
Load
Input
Input
Output
Ground
Output
Output
Ground
Output
Series Connection
to Output
Positive and
Negative Polarity
Unit #2
Unit #1
Load
Input
Input
Output
Ground
Output
Output
Ground
Output
COM
