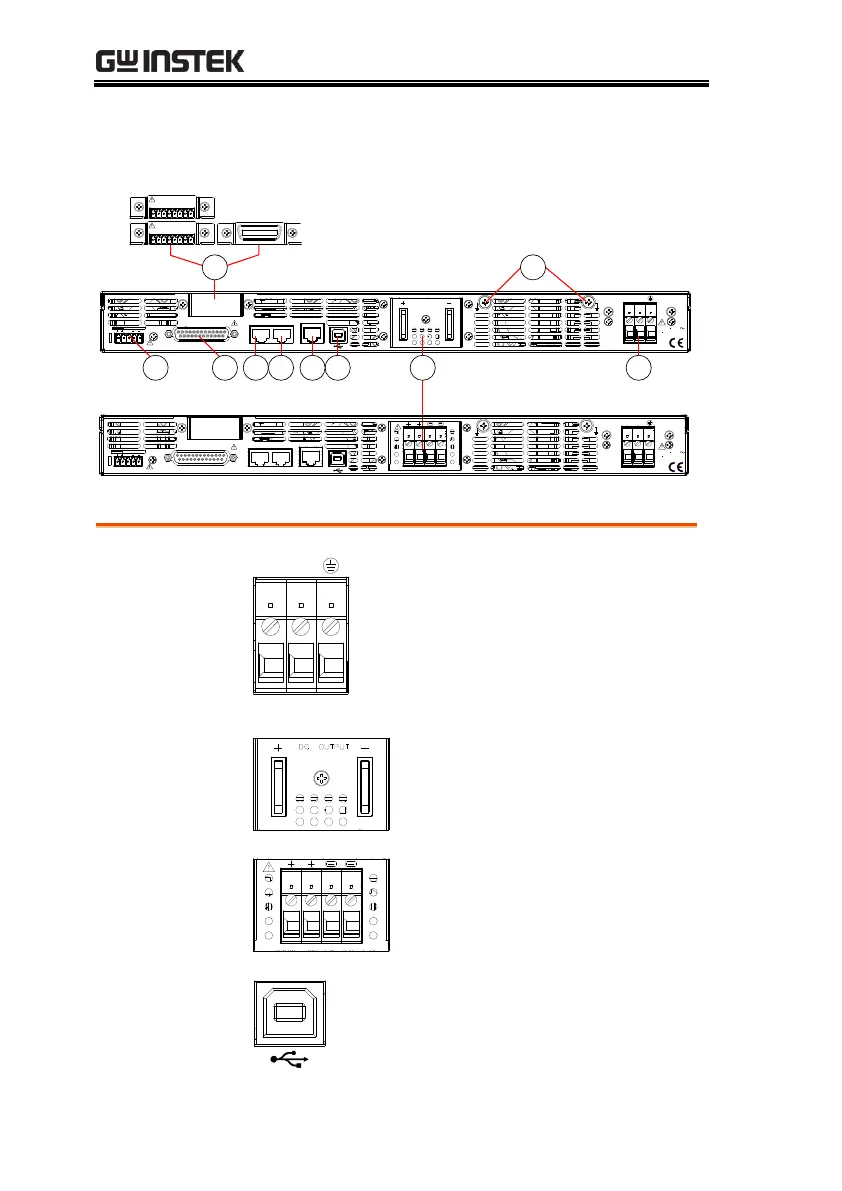

Rear Panel
S LS SLSNC
REMOTE SENSE
ANALOG PROGRAMMING
RS485 / 232
OUT IN
LAN
DC OUTPUT
AC INPUT
L N
100 240V
2000VA MAX.
AC
47 63Hz
234 15678
9 10
6-60V models:
PSU 6-200, 8-180, 12.5-120,
80-600V models:
PSU 80-19, 100-15, 150-10,
S LS SLSNC
REMOTE SENSE
ANALOG PROGRAMMING
OUT IN
RS485 / 232
LAN
L N
AC INPUT
100 240V
2000VA MAX.
AC
47 63Hz
1 2 3 4 5 6 7 8
ISOLATED PROGRAMMING
0 – 5V / 0 – 10V
1 2 3 4 5 6 7 8
ISOLATED PROGRAMMING
4 – 20mA
15-100, 20-76, 30-50,
40-38, 50-30, 60-25
300-5, 400-3.8, 600-2.6
1.
AC Input
L N
AC INPUT
Wire clamp connector.
2.
DC Output
Output terminals for 6V to 60V
models.
Output terminals for 80V to 600V
models.
3.
USB
USB port for controlling the PSU
remotely.
