GW Instek PSU Series User Manual

PSU Series User Manual
24

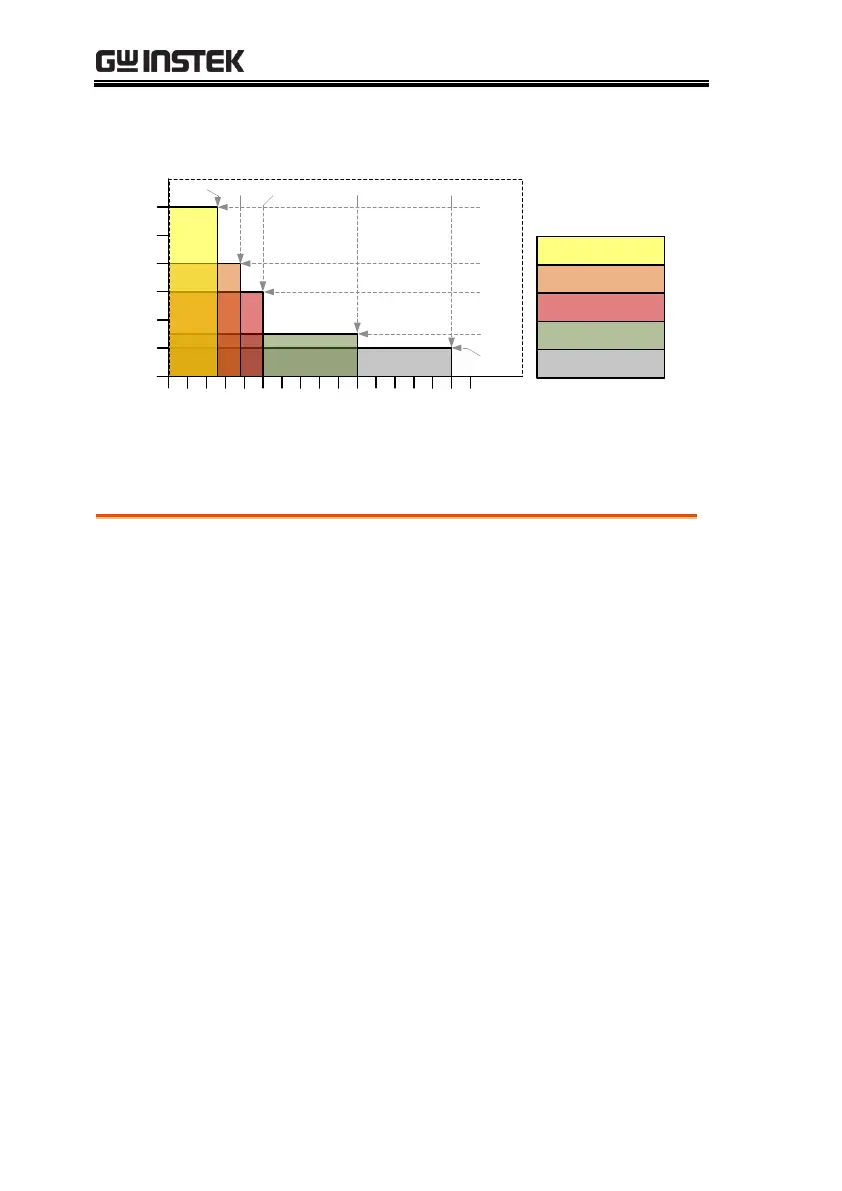

PSU Series Operating Area (100-600V models)
Current (A)
Voltage (V)
300
3.8 5 10
400
12 1686 10
0
14
0
100
200
300
15
600
400
500
600
2.6
100
150
PSU 100-15
PSU 150-10
PSU 300-5
PSU 400-3.8
PSU 600-2.6
42
CC and CV Mode
CC and CV mode
Description
When the power supply is operating in constant
current mode (CC) a constant current will be
supplied to the load. When in constant current
mode the voltage output can vary, whilst the
current remains constant. When the load
resistance increases to the point where the set
current limit (I
SET
) can no longer be sustained the
power supply switches to CV mode. The point
where the power supply switches modes is the
crossover point.
When the power supply is operating in CV mode,
a constant voltage will be supplied to the load,
whilst the current will vary as the load varies. At
the point that the load resistance is too low to
maintain a constant voltage, the power supply will
switch to CC mode and maintain the set current
limit.
The conditions that determine whether the power
supply operates in CC or CV mode depends on
the set current (I
SET
), the set voltage (V
SET
), the load
