GW Instek PSU Series User Manual

APPENDIX
207

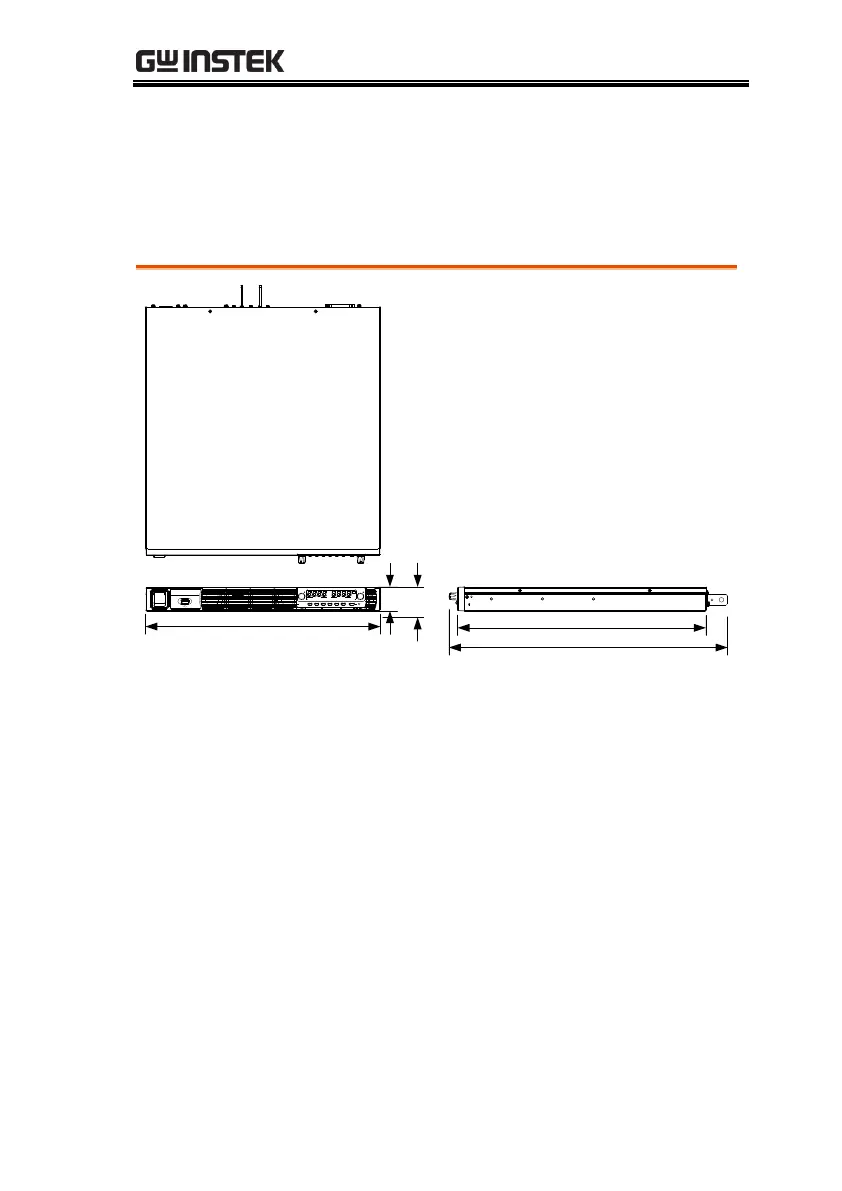

PSU Dimensions
PSU 6-200, PSU 8-180, PSU 12.5-120, PSU 15-100,
PSU 20-76, PSU 30-50, PSU 40-38, PSU 50-30, PSU 60-25
423.0
43.6
56.2
447.2
501.9
Lock/Local PROT Function Test Set
Output
Unlock ALM_CLR M 1 M 2 M 3
Shift
: Long Push
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C C
A
C V
V
VOLTAGE CURRENT
DC Power Supply
0 - 40V / 0 - 38A
Voltage Current
Units = mm

GW Instek PSU Series Specifications

General

Brand	GW Instek
Model	PSU Series
Category	Power Supply
Language	English
