CONFIGURATION

113

Note

Function setting F-89 (Show Version) can only be

viewed, not edited.

Configuration settings F-90~ F-98 cannot be edited in

the Normal Function settings. Use the Power On

Configuration settings. See page 114 for details.

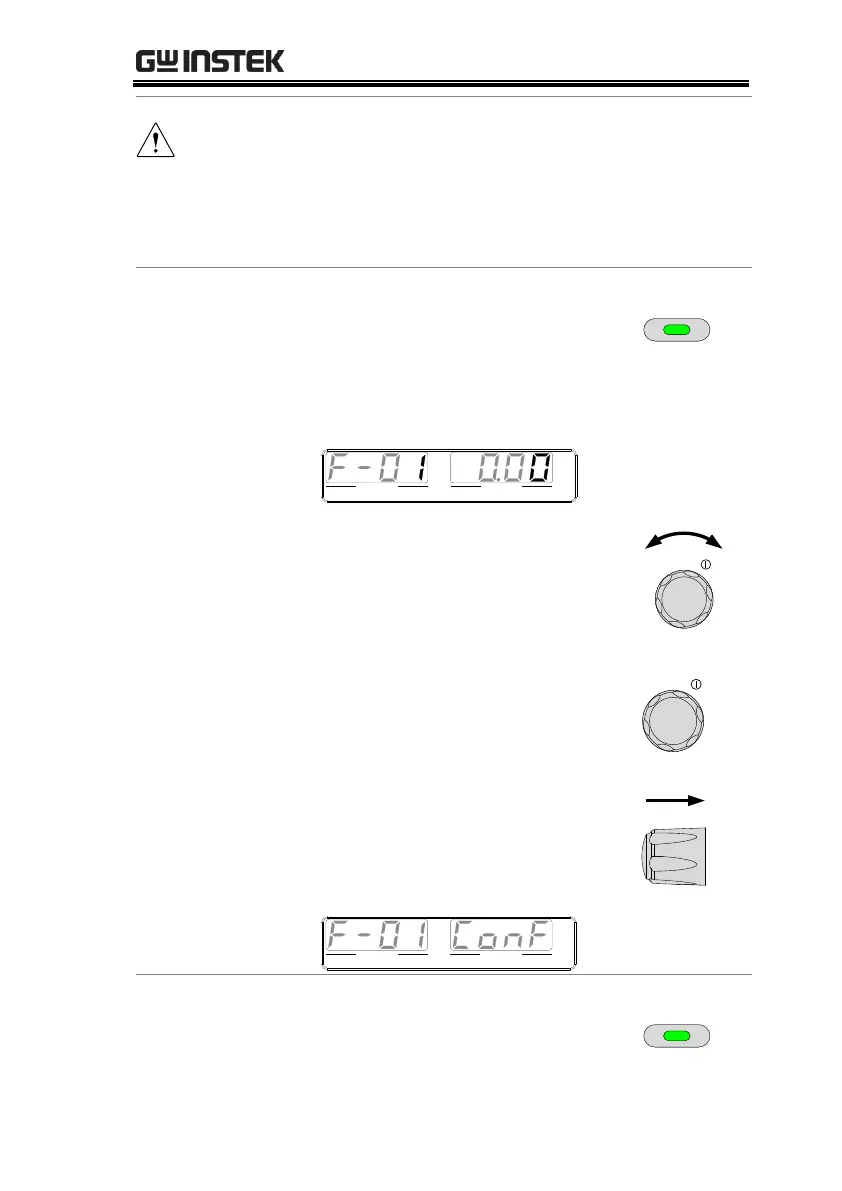

Steps

1. Press the Function key. The

function key will light up.

Function

2. The display will show F-01 on the left and the

configuration setting for F-01 on the right.

VOLTAGE CURRENT

VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN

C V C C

V A

3. Rotate the Voltage knob to change

the F setting.

Voltage

Range

F-00~F-61, F-70~F-78,

F-88~F-98, F100~F122

4. Use the Current knob to set the

parameter for the chosen F setting.

Current

Press the Voltage knob to save the

configuration setting. ConF will be

displayed when it is configuring.

Voltage

VOLTAGE CURRENT

VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN

C V C C

V A

Exit

Press the Function key again to exit

the configuration settings. The

Function key light will turn off.

Function
