PSU Series User Manual
124
Connection

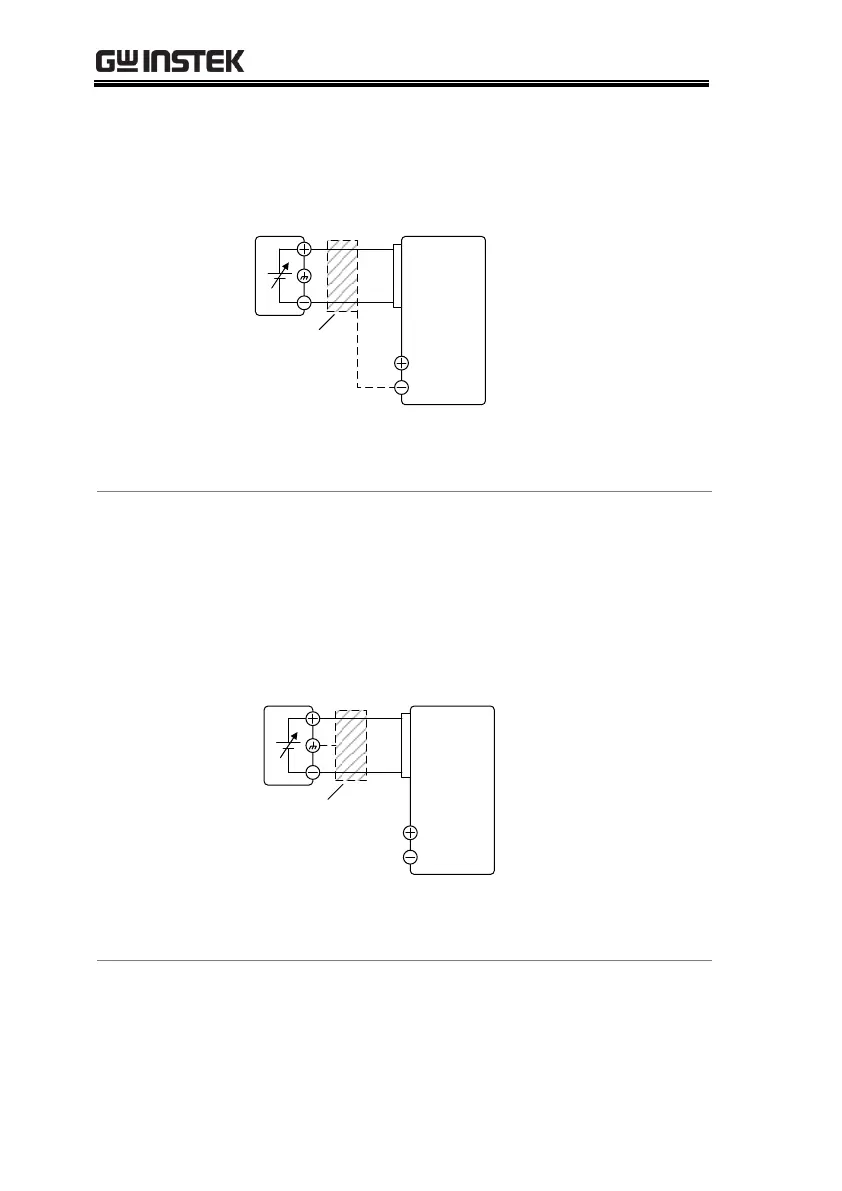

When connecting the external voltage source to the
connectors, use shielded or twisted paired wiring.
PSUEXT-V
Analog
connector
23
21
Output
Terminal
2 core shielded
wire or twisted
pair
Pin23 → EXT-V (-)
Pin21 → EXT-V (+)
Wire shield → negative (-) output terminal
Connection- alt.
shielding
If the wire shield needs to be grounded at the
voltage source (EXT-V), then the shield cannot also
be grounded at the negative (-) terminal output of
the PSU power supply. This would short the
output.
PSUEXT-V
Analog
connector
23
21
Output
Terminal
2 core shielded
wire or twisted
pair
Pin23 → EXT-V (-)
Pin21 → EXT-V (+)
Wire shield → EXT-V ground (GND)
Steps
1. Connect the external voltage according to the
connection diagrams above.
