1. Press the Function key and confirm
the new configuration settings
(F-96 = 0 or 1).
Function
2. An external DMM can now be used to monitor
the voltage or current output.

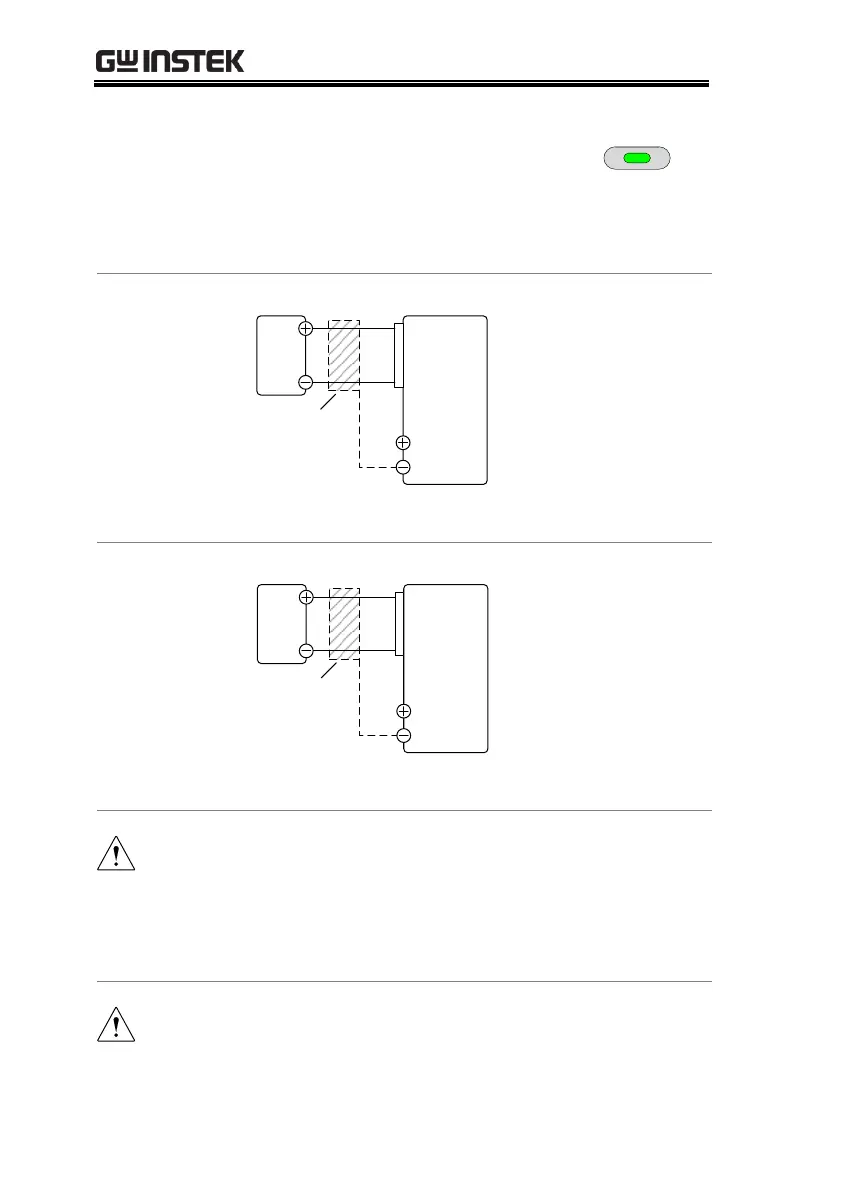

VMON
Connection
PSUDMM
Analog
connector
23
25
Output
Terminal
2 core shielded
wire or twisted
pair
V MON
0→10/
5V
 Pin25 → Pos (+)
 Pin23 → Neg (-)
IMON
Connection
PSUDMM
Analog
connector
23
24
Output
Terminal
2 core shielded
wire or twisted
pair
I MON
0→10/
5V
 Pin24 → Pos (+)
 Pin23 → Neg (-)
Note
Maximum current is 5mA. Ensure the sensing circuit
has input impedance greater than 1MΩ.
The monitor outputs are strictly DC and should not be
used to monitor analog components such as transient
voltage response or ripple etc.
CAUTION
Ensure IMON (pin 24) and VMON (pin 25) are not
shorted together. This may cause damage to the unit.
