GW Instek PSU Series User Manual

OPERATION
37

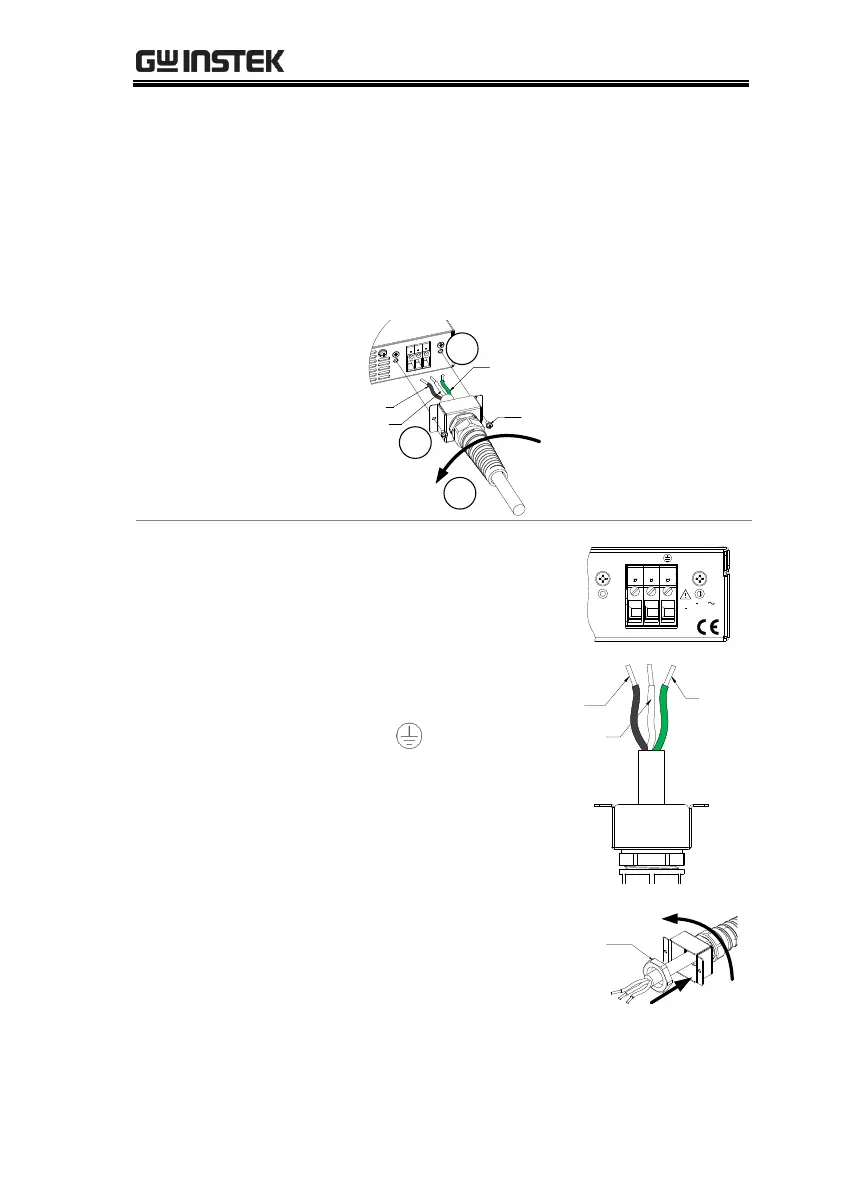

2. Unscrew the power cord protective sheath.
3. Remove the 2 screws holding the power cord
cover and remove.
4. Remove the AC power cord wires with a flat
head screwdriver.
3
2
2-M3x6L
Pan Head Screw
GND: Green or
Green and Yellow
N: White or Blue
L: Black or Brown
4
Installation
1. Connect the AC power
cord wires to the AC input
terminals.
 Black/Brown  Line (L)
 White/Blue  Neutral (N)
 Green /Green & Yellow 
Ground ( )
 Wire gauge: Awg12 to
Awg10.
 Wire diameter: 2.05mm-
2.588mm.
AC INPUT
2000VA MAX.
47 63Hz
100 240VAC
NL
Ground
Line
Neutral
2. Make sure the sheath is
tightened to the lock nut.
3. Re-install the power cord
cover.
Screw on
locknut
