3. If necessary, connect the chassis
ground terminal to either the
positive or negative terminal. See
the grounding chapter for details.
4. Choose a suitable wire gauge and
crimping terminal for the load
cables.
5. Connect the positive load cable to the positive
output terminal and the negative cable to the
negative output terminal.
6. Reattach the output terminal
cover.
Connection
Example
(PSU 6-200, 8-180,
12.5-120, 15-100,
20-76, 30-50,
40-38, 50-30,
60-25)

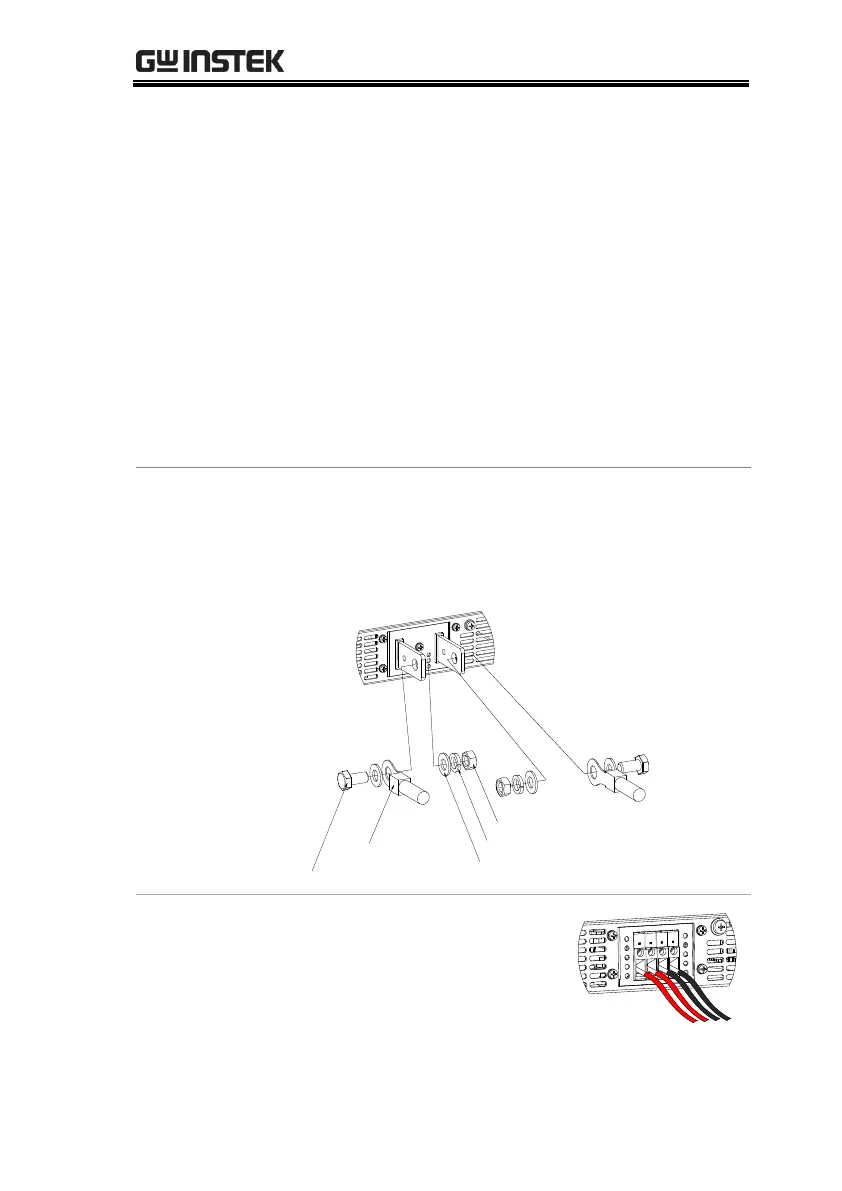

Use the included M8-sized bolt set to connect the
load cables to the output terminals. Make sure that
the connections are tight and that washers and spring
washers are used to ensure a good connection.
2-Wire terminal lug
2-Spring washer
2-Hex Nut
4-Flat washer
2-M8x16L SCREW
(PSU 80-19, 100-
15, 150-10, 300-5,
400-3.8, 600-2.6)
Simply secure the stripped
connectors inside each terminal.
Wire gauge: Awg14 to Awg10
Wire diameter: 1.63mm-
2.588mm
