PSU Series User Manual

F-04 / F-05

0.001V~0.060V/msec (PSU 6-200)

0.001V~0.080V/msec (PSU 8-180)

0.001V~0.125V/msec (PSU 12.5-120)

0.001V~0.150V/msec (PSU 15-100)

0.001V~0.200V/msec (PSU 20-76)

0.001V~0.300V/msec (PSU 30-50)

0.001V~0.400V/msec (PSU 40-38)

0.001V~0.500V/msec (PSU 50-30)

0.001V~0.600V/msec (PSU 60-25)

0.001V~0.800V/msec (PSU 80-19)

0.001V~1.000V/msec (PSU 100-15)

0.001V~1.500V/msec (PSU 150-10)

0.001V~1.500V/msec (PSU 300-5)

0.001V~2.000V/msec (PSU 400-3.8)

0.001V~2.400V/msec (PSU 600-2.6)

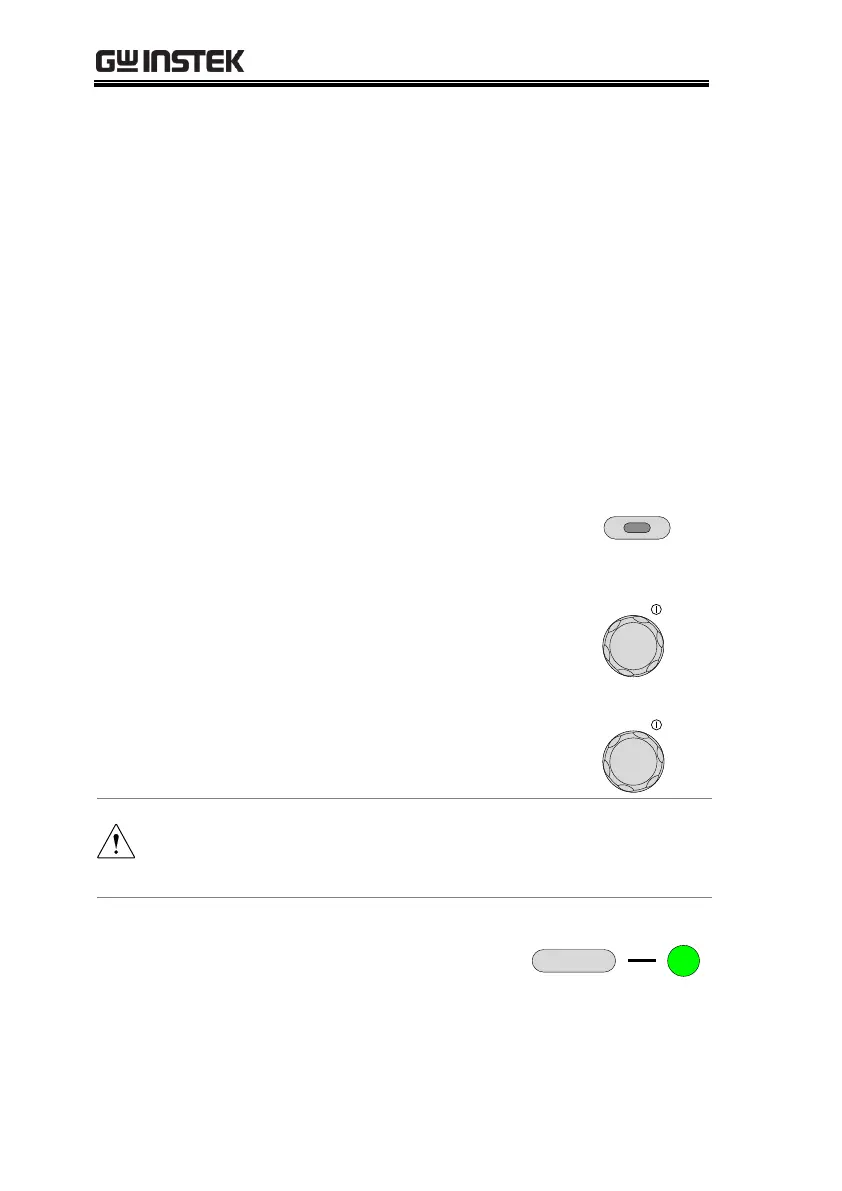

7. Press the Function key again to exit

the configuration settings. The

function key light will turn off.

Function

8. Use the Current knob to set the

current limit (crossover point).

Current

9. Use the Voltage knob to set the

voltage.

Voltage

Note

Notice the Set key becomes illuminated when setting

the current or voltage. If the Voltage or Current knobs

are unresponsive, press the Set key first.

10. Press the Output key. The

Output ON LED becomes

lit.

Output
