Information about the FWB, FWQ distribution board range
Quickset mounts: In the FWQ (Q stands for quickset) cabinet, four mounts made from 2 mm steel are
pre-installed as well as a steel fixation frame at the rear of the cabinet. The steel fixation frame can be removed
from the outside (1), mounted to the wall and aligned with a spirit level, then fixed with standard screws and
wall plugs (2). The cabinet can then be inserted into the steel fixation frame.
If the bottom cabinet bracket on the steel fixation frame has a certain amount of play, the two operating elements
(K) on the bottom brackets can be quickly screwed tighter, either manually or by using a small screw driver.
The K element (3) is operated for removing the cabinet.

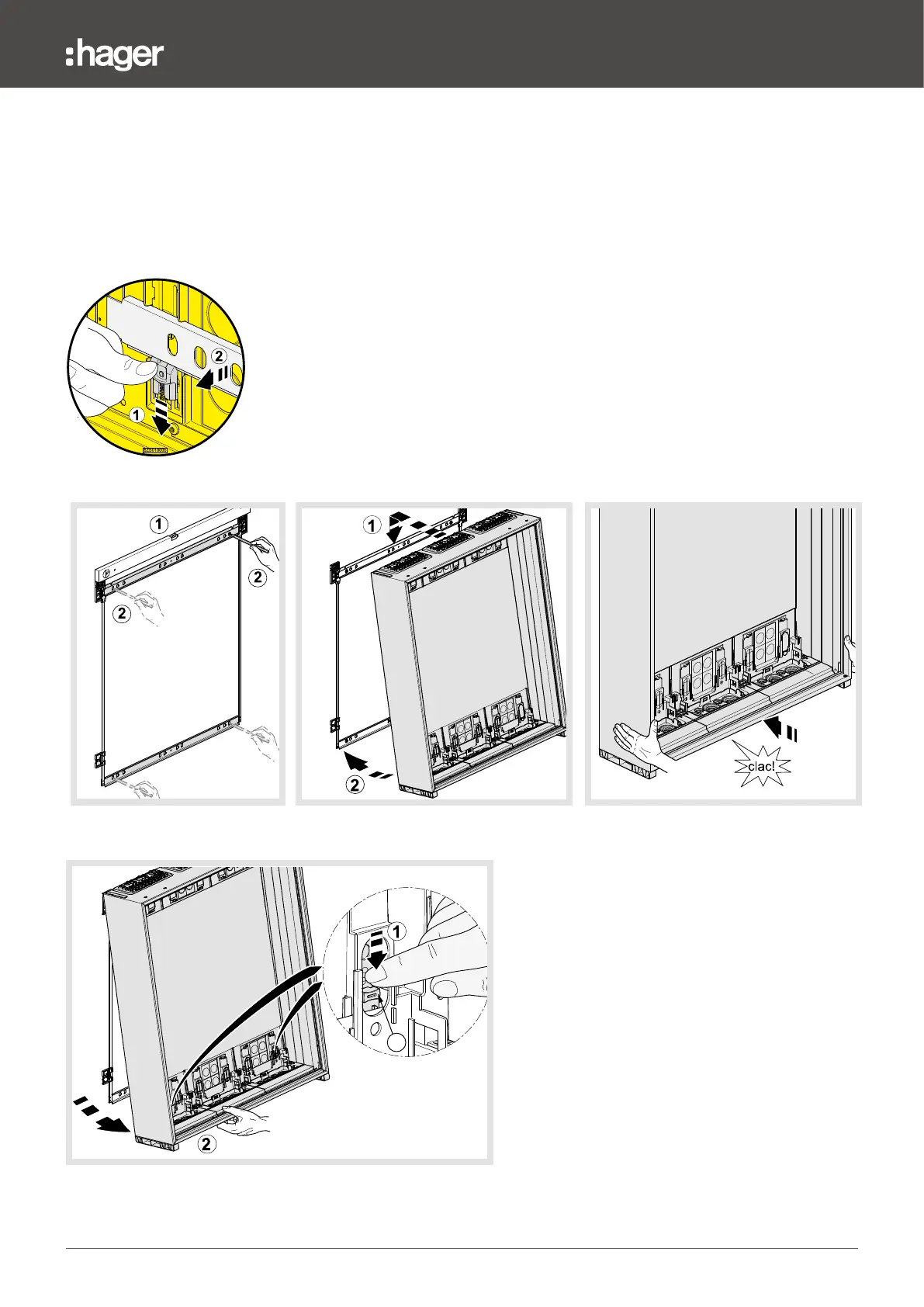

1. Removing the steel fixation frame
2. Installation sequence with quickset bracket
K
3. Removal quickset bracket (operating the K element)
