66 We reserve the right to make changes of a technical nature
univers Z internal system
4x
10x

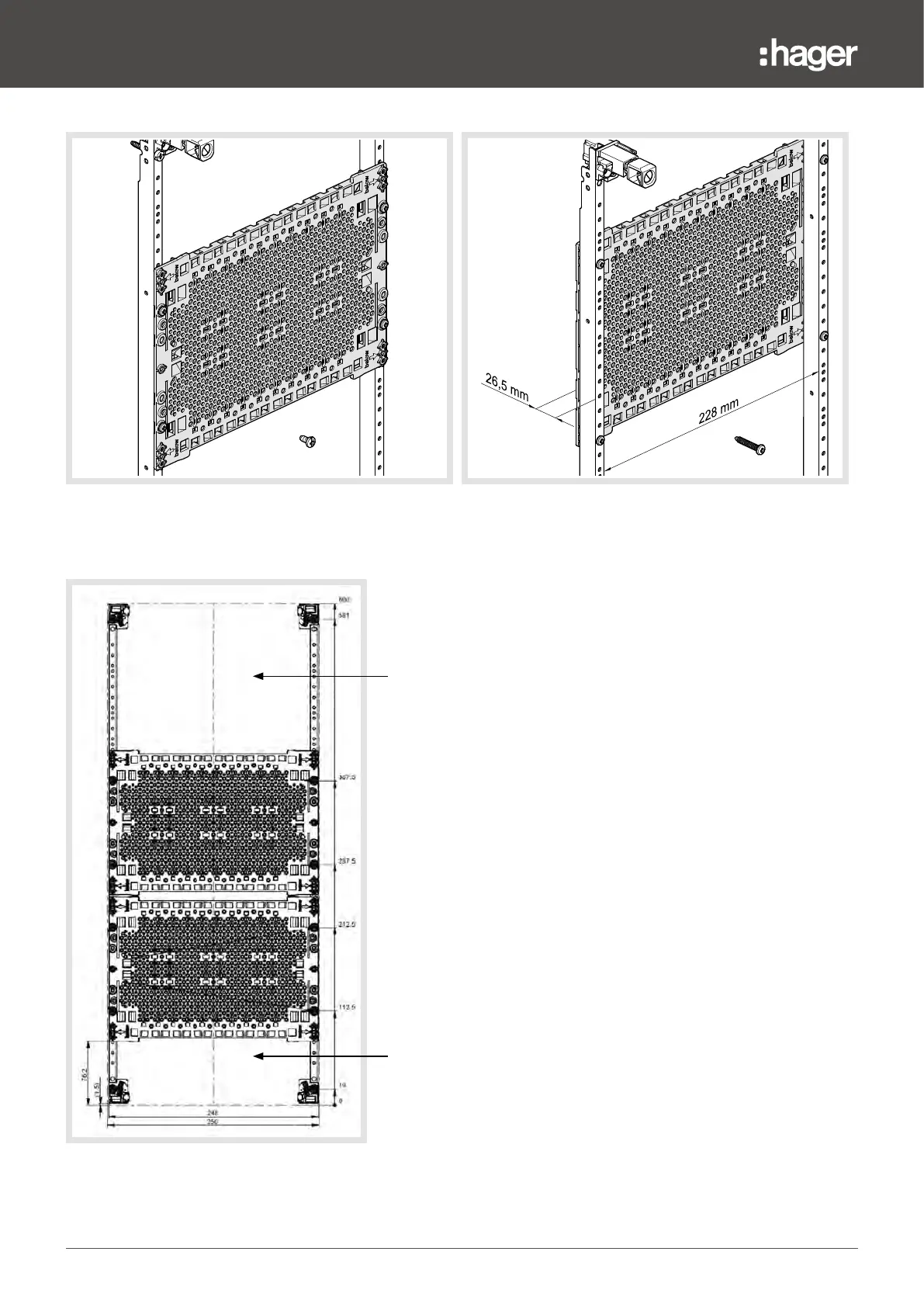

Installation of the plastic mounting plate in UMx1UK
Left: Front of the mounting rails
Right: Rear of the mounting rails
In every UMx1UK panel, the bottom plate is positioned 75 mm from the mounting rail end so that the Volta
multisocket outlet can be installed directly. A patch panel kit can be installed in the top area. See chapter 7.4.
Space for patch panel
Space for multisocket outlet (75 mm)
UMx1UK panel: 75mm distance between the mounting rail edge and bottom plate
When screwing multimedia devices into the plastic mounting plates with screws, the specified maximum
tightening torque must not be exceeded (see “ UW51V plastic mounting plate“ section).
