We reserve the right to make changes of a technical nature 67
univers Z internal system
UNxxTN
The multimedia panels with perforated steel mounting plate UNxxTN remain available. These panels with
the 14 mm, narrower univers FW mounting rails are compatible with the univers Z system; they comprise the
same fixation towers and have a width of 250 mm or 500 mm. They comprise one single panel that cannot be
moved to the bottom. For all of these references, 20 metal screws (short and long) are supplied for fixing multi-
media devices.

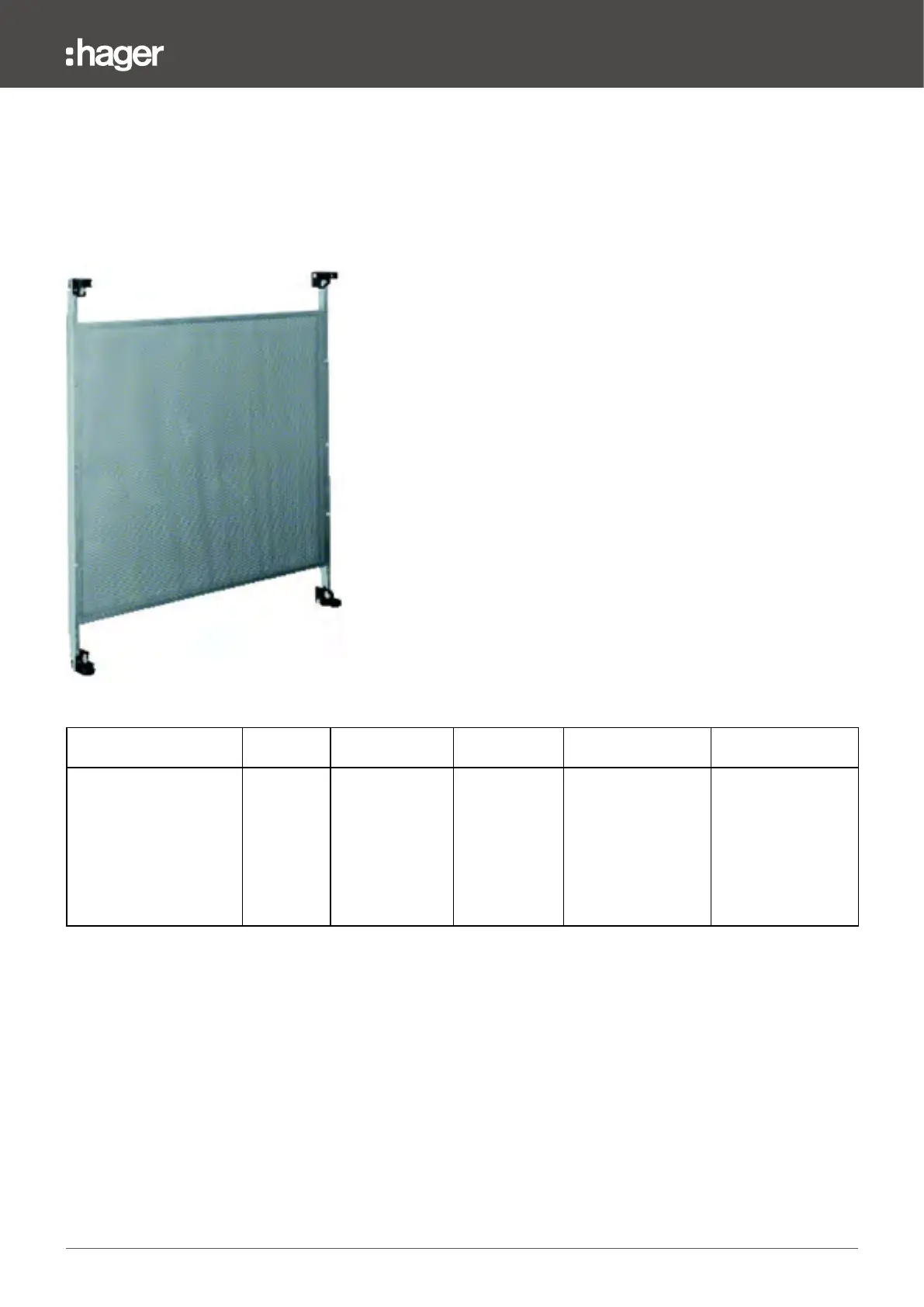

Example: UN42TN (500 mm width)
Panels Height Width 1 (250mm)
Width 2
(500mm)
Number of screws
13 mm depth
Number of screws
22 mm depth
Multimedia panel
with perforated steel
mounting plate
3 (450 mm) UN31TN UN32TN 10 10
4 (600 mm) UN41TN UN42TN 10 10
5 (750 mm) UN51TN UN52TN 10 10
6 (900 mm) UN61TN UN62TN 10 10
7 (1050 mm) UN71TN UN72TN 10 10
8 (1200 mm) - - - -
UNxxTN panels can additionally be screwed to the enclosure with the ZZ41FWB kit if the locking mechanism
has too much play (see page68).
Mounting plates can also be ordered as individual parts and screwed onto univers Z mounting rails (see
page78).
