HQ Pro-Stitcher User Manual07/23/123.10 Installation Instructions

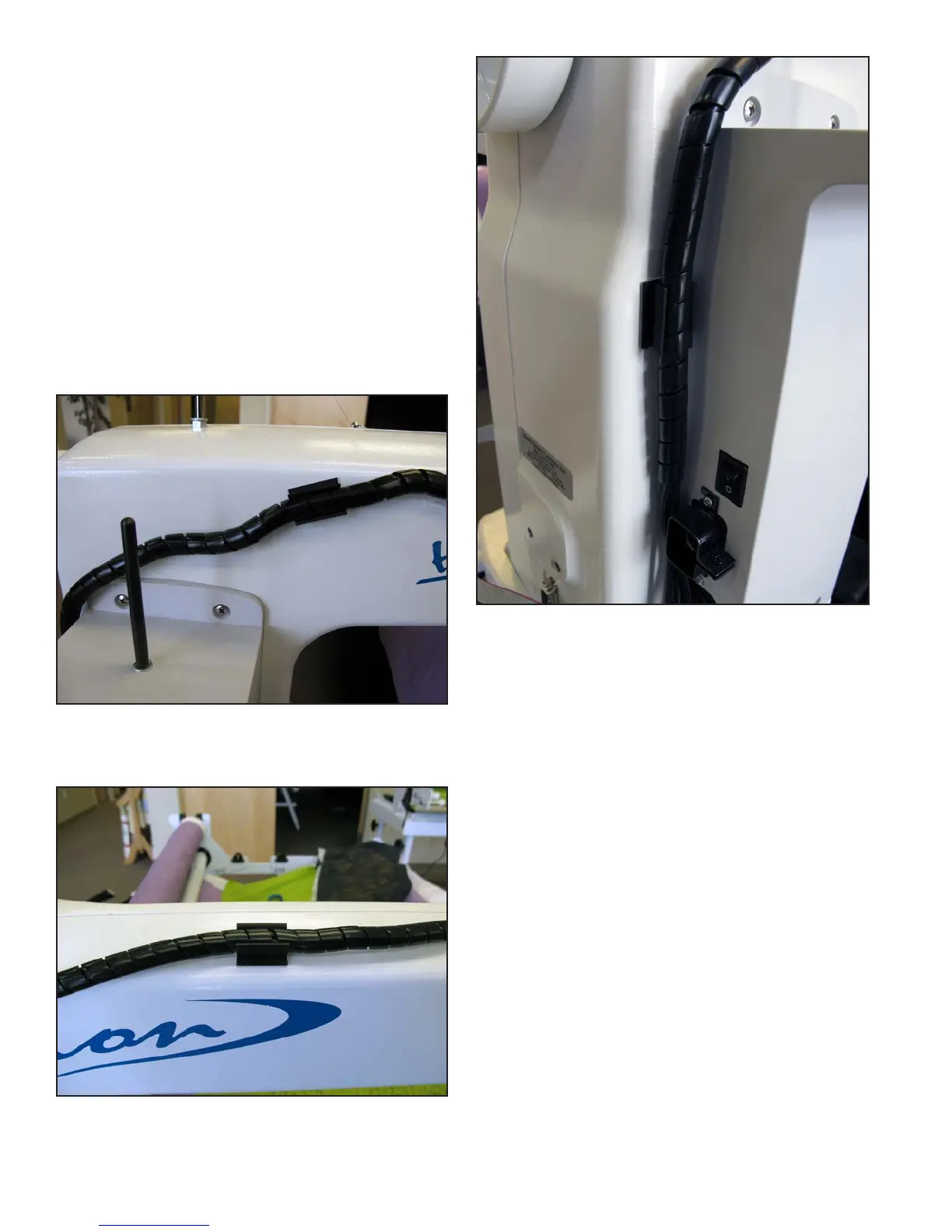

Figure 3.17
5. e black cables attached to the HQ Pro-Stitcher
carriage should be routed up between the rear
handles and the quilting machine, toward the
right-hand side of the machine (looking at the
machine from the back). Place the black cable clips
(Page 3.3, J) as shown in Figures 3.17, 3.18, &
3.19 and route the cable accordingly.
Figure 3.18
Figure 3.19
