HQ Pro-Stitcher User Manual07/23/123.16 Installation Instructions
Item
A. Blue X-axis Flexirack (12 feet)
B. X-axis Flexirack Clamps & Screws
C. 3/32” Drill Bit
D. Emergency Base Plate Repair Kit
E. Carriage Assembly
F. Computer Bracket
G. Y-Encoder Circuit Board*
H. Y-axis Mounting Bracket Assembly
I. “Y” Power Cord (10 foot)
J. Adhesive Cable Mounting Clips
K. USB Flash Drive/Lanyard
L. Art & Stitch Soware
M. Alignment Block
N. HQ Pro-Stitcher Computer
O. HQ Sixteen “Y” Encoder* (Version 2)
P. Power Cord Retaining Clamp*
Q. Stitch Regulator Adapter Board*
R. USB Cable
S. Computer Power Cord
T. USB Extension cable
U. 3 M Command Adhesive Strips
* Item may not be included or needed

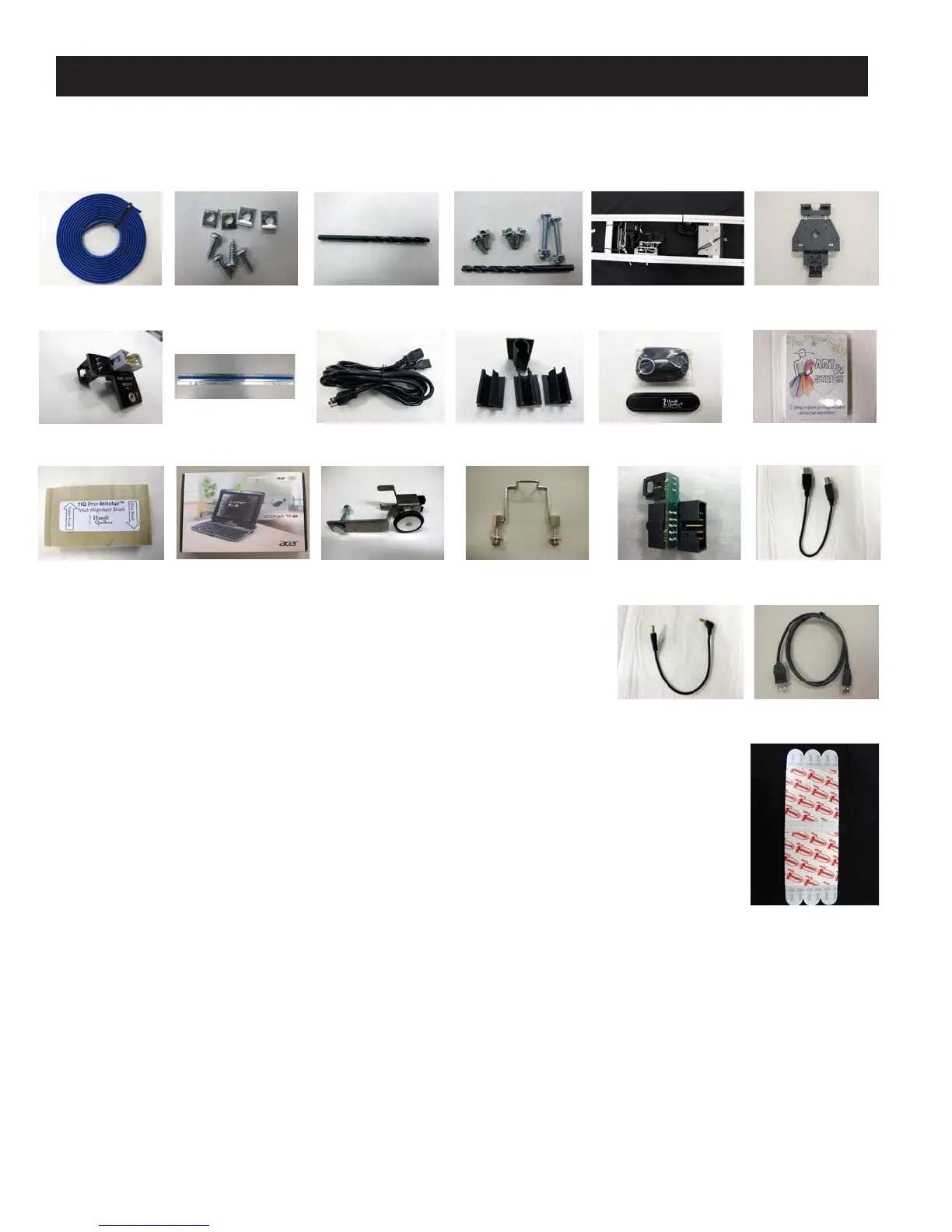

HQ Pro-Stitcher Parts List for HQ Sixteen & HQ
18
Avanté
(4-wheel carriage version)
Quantity
A B C D E F
G H I J K L
M
N
O P Q
1
4
1
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
6
R
S
T
U
Parts List
