www.HandiQuilter.com/ProStitcher 07/23/12 Installation Instructions 3.3

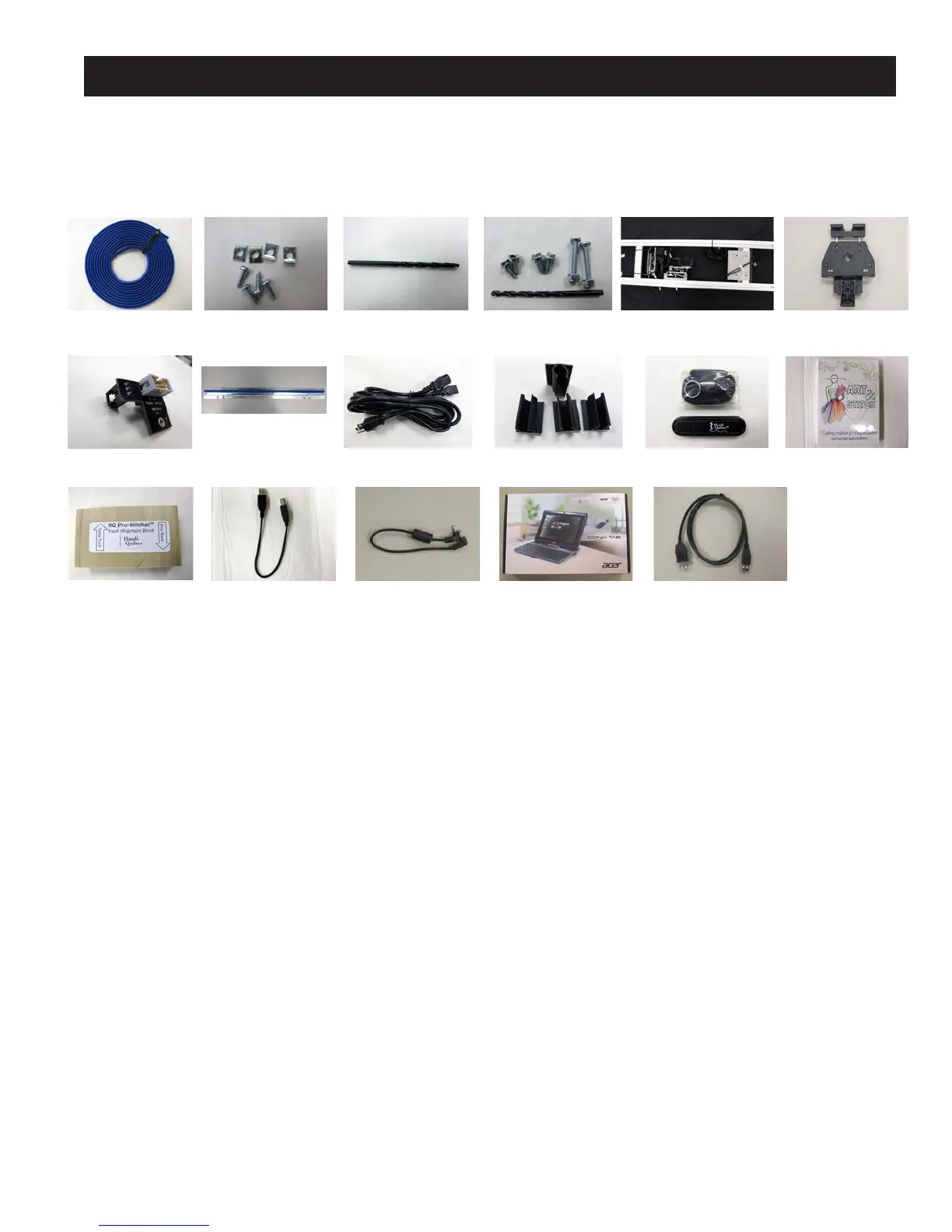

HQ Pro-Stitcher Parts List for HQ
18
Avanté (8-wheel carriage version) & HQ
24
Fusion
See page 3.16 for HQ Sixteen & HQ
18
Avanté (4-wheel carriage version)
Item
A. Blue X-axis Flexirack (12 feet)
B. X-axis Flexirack Clamps & Screws
C. 3/32” Drill Bit
D. Emergency Base Plate Repair Kit
E. Carriage Assembly
F. Computer Bracket
G. Y-Encoder Circuit Board*
H. Y-axis Mounting Bracket Assembly
I. “Y” Power Cord (10 foot)
J. Adhesive Cable Mounting Clips
K. USB Flash Drive/Lanyard
L. Art & Stitch Soware
M. Alignment Block
N. USB Cable
O. Computer Power Cord
P. HQ Pro-Stitcher Computer
Q. USB Extension Cable
*Item may not be included or needed
Quantity
A B C D E
F
G
H I J
K L
M
N O
P
1
4
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
Q
Parts List
