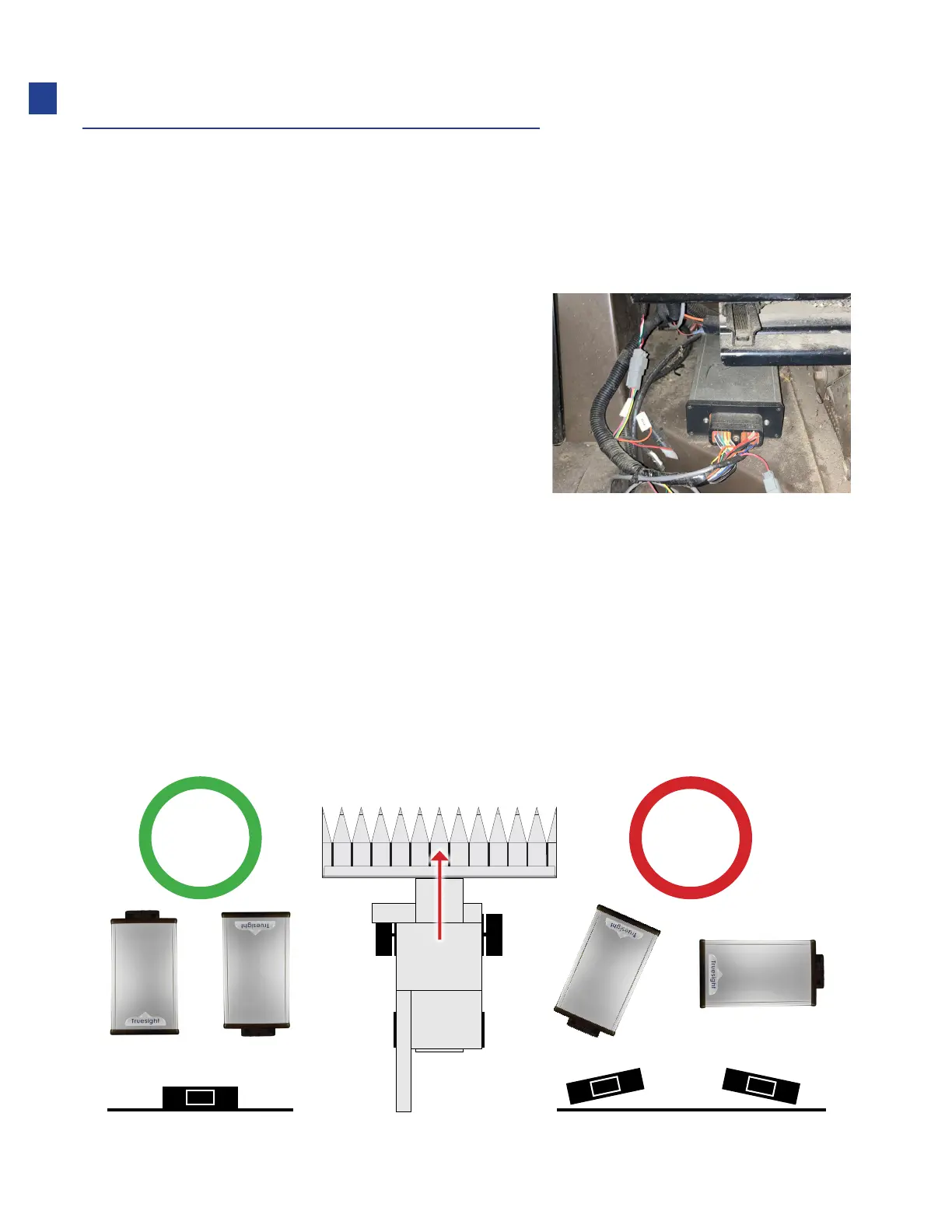

Headsight TRUESIGHT 2 - Base Controller Installation

Base Controller
1. Connect base controller to Y702 of main harness.
•
40 pin Deutsch
•
Use
5
/
32
” Allen wrench to tighten
•
The base must rest on the cab floor
•
Secure controller with velcro provided
2. The controller must be oriented with the
direction of travel of the combine.
•
The base must rest flat on the cab floor or tray
•
The connector may point forward or back
•
See the graphic below
•
Secure controller with velcro provided
Cab Floor Cab Floor
NOOK
10
Installation
