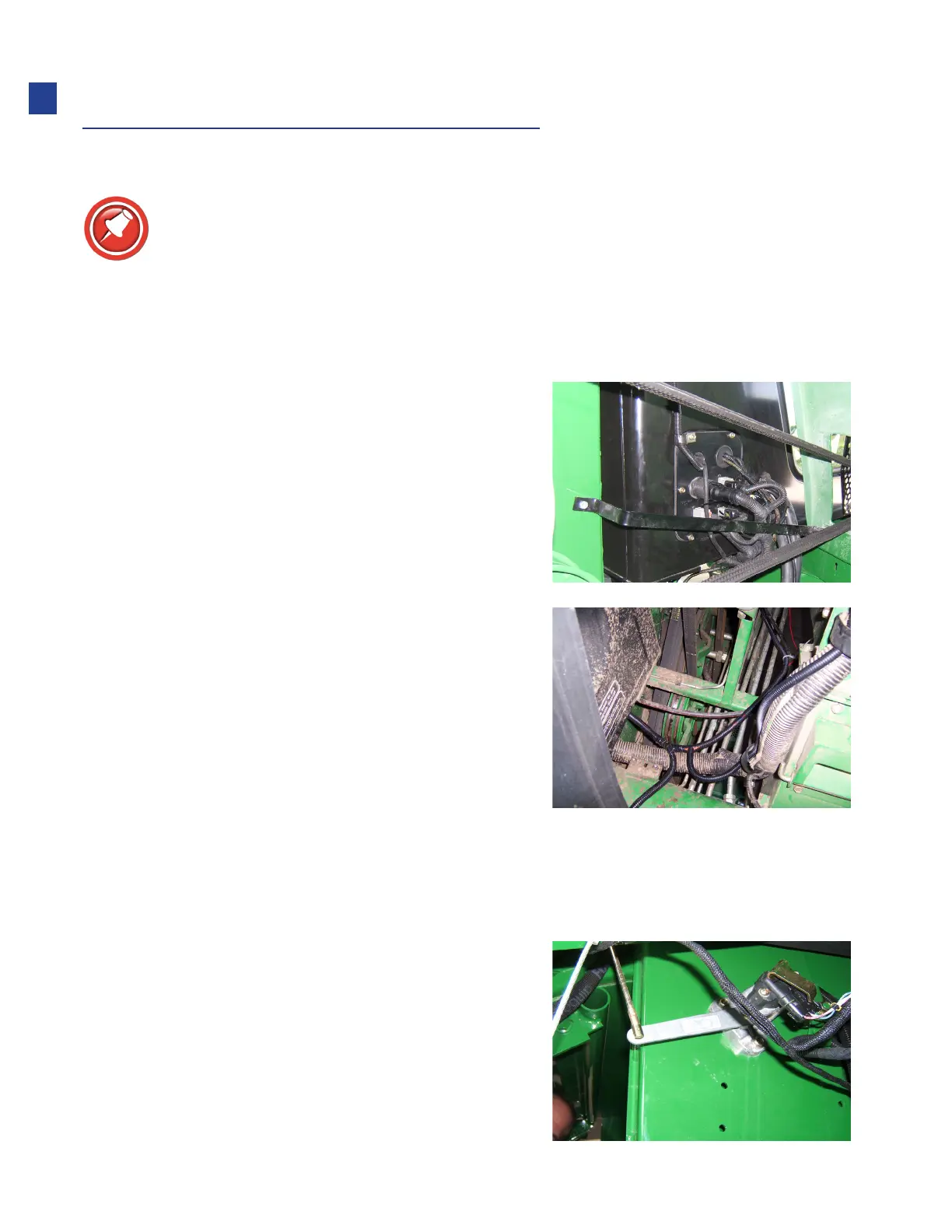

Outside Wiring
Exiting the Cab
Connector Y723 is only used for sidehill combines.
1. Route main Truesight harness through access panel.
•
Start with the harness in the cab in right-rear corner
•
Feed all ‘outside’ connectors (as designated above) out through access panel
•
Route wiring through hole created above
•
Route valve harness tail outside cab (if equipped)
•
Route harness tail with Y7003, Y705,
Y725, Y767 & Y723 outside cab
•
Connector Y705 (wheel angle sensor) should
be on the outside of the panel
2. Route Leg 2 of the harness across under the cab
as shown.
3. Route Leg 3 of the harness as necessary to
the valve system or wheel motor.
4. Install grommet around wiring.
5. Refasten access panel.
Feederhouse Position
Optional Installation for Auto-Resume
1. If you wish to use the auto-resume feature, and your combine
has a aftermarket feeder position sensor installed, contact
Headsight for an adapter to connect Y767 to the sensor.
•
Have information on your sensor and connector available
14
Installation
