Ag Leader Paradigm Valve
1. Connect Y787 and Y788 inline to Paradigm valve harness.
•

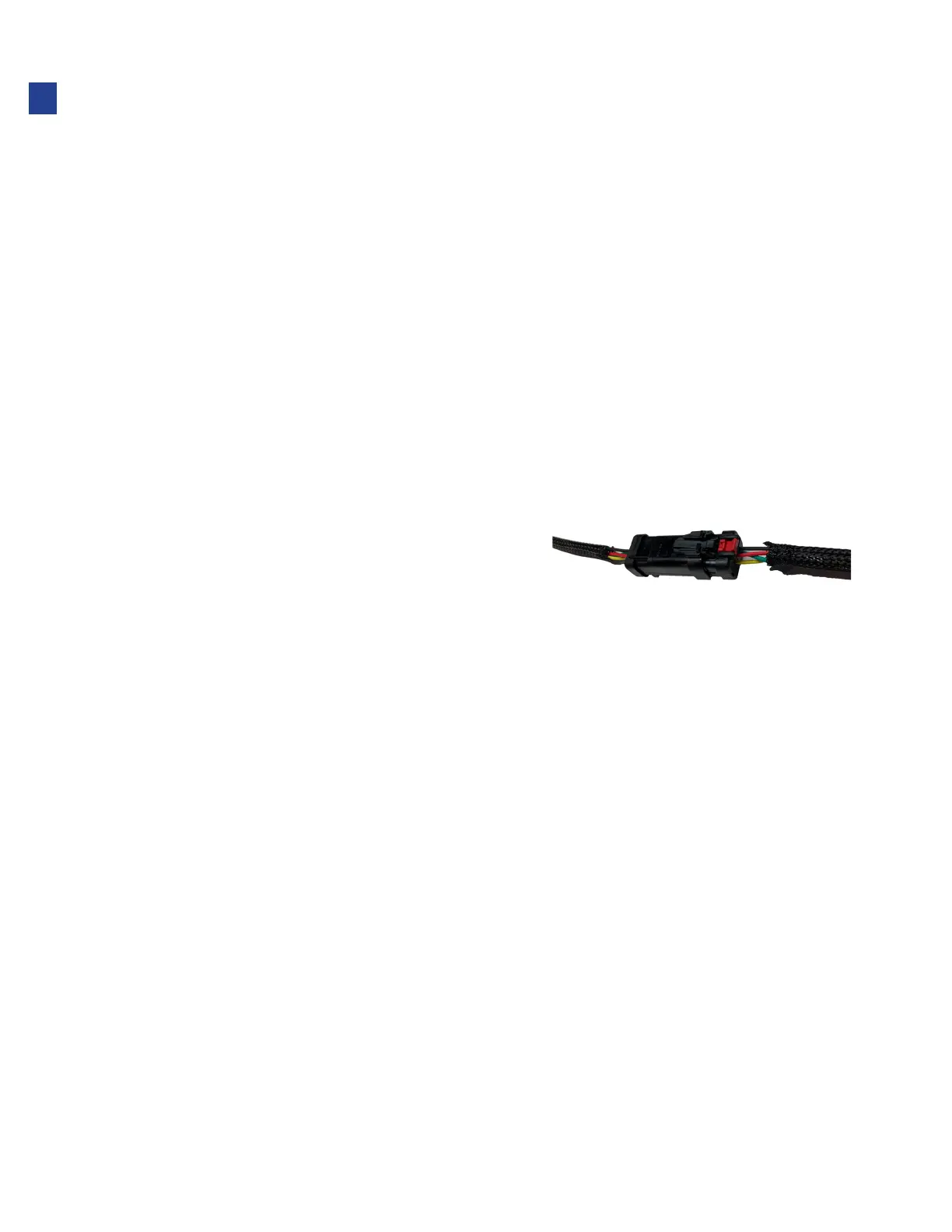

4 pin Weatherpack
2. Install encoder/pressure adapter
•
Pressure Sensor: Connect HT2836 in-line at sensor
•
Flow meter : Connect HT2838 in-line at the flow meter
3. Connect Y765 to encoder/pressure adapter
•
Single pin Weatherpack
Ag Leader SteadySteer Motor
1. The Steady Steer motor harness (4006107-12) must be installed and connected to power thru the
AgLeader system.
2. Connect the CAN plug (4p AmpSeal) on the
AgLeader steering motor harness to Y761.
•
Disconnect motor CAN from the AgLeader
controller when using Truesight
•
Connect motor CAN back to the AgLeader
controller when using GPS steering
3. For systems using VT display: wye into previously
connected VT CAN connection Y902 - Y9002.
•
Connect Y902B to Y9002
•
Connect Y902 to Y9002B
4. For systems using “Remote” display: connect Y902B to Y9002.
20
Installation
