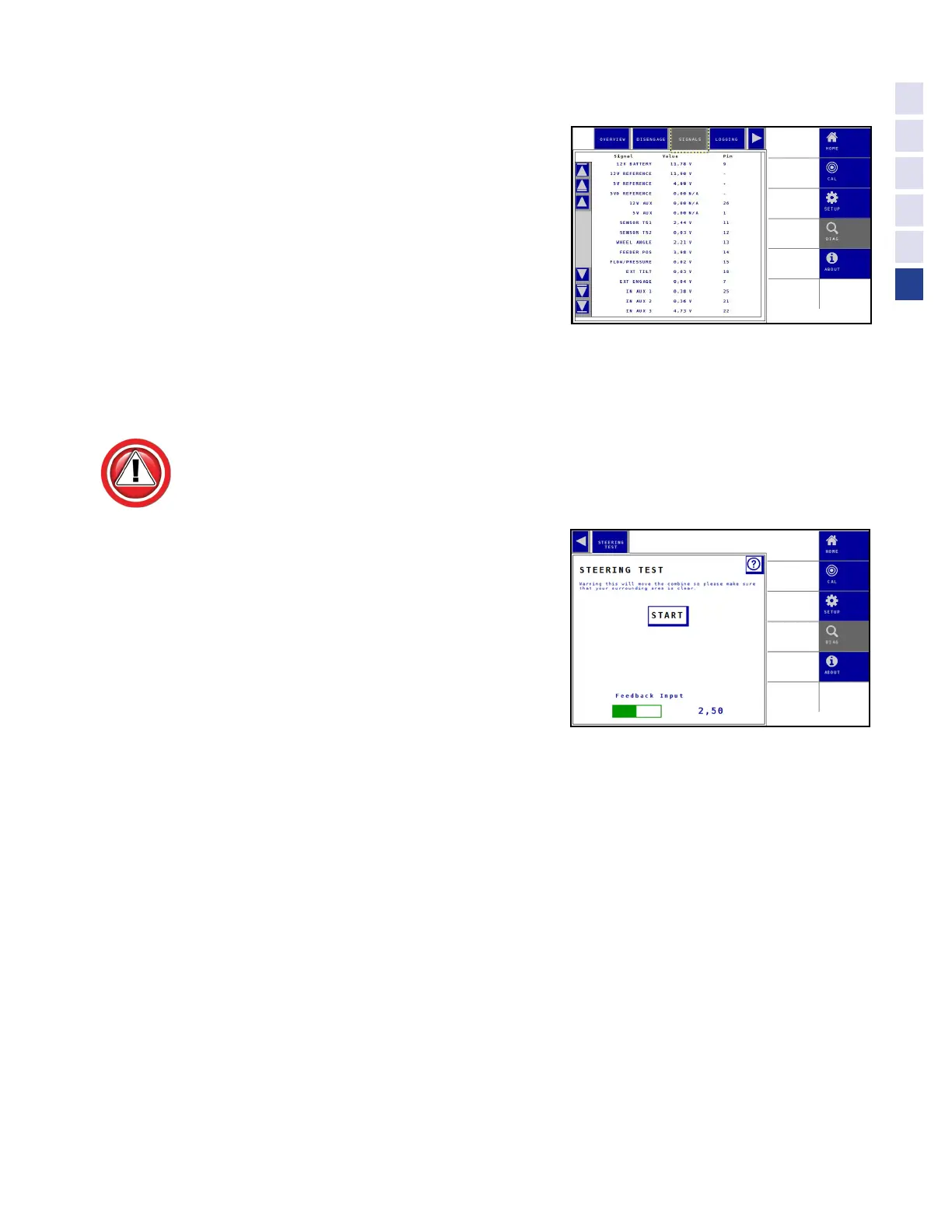

Diagnostics - "Signals"
•
General reference to power, inputs and outputs of Truesight 2
•
Displays - Signal, Value, and pin location on 40 pin connector
Diagnostics - "Steering Test"
Operator must be in seat to proceed with Steering Test.
Ensure area around machine is clear of people or hazards.
1. On VT go to Diag>>Tab Right>>Steering Test.
2. Make sure the area around the machine is clear.
3. Press Start button.
4. Repeatedly press Right or Left button to increase
wheel steer command until the wheels steer.
•
Verify wheels are steering in correct direction
•
Press Left or Right to return steer command to zero
5. Press Stop button to end test.
