Headsight TRUESIGHT 2 - Parts List; Crop Sensor Parts (HT2501)

Parts
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES DIMENSIONS W/O TOL ARE BASIC
THIRD ANGLE PROJECTION
THE INFORMATION CONTAINED ON THIS DRAWING IS PROPRIETARY TO HEADSIGHT, INC. ANY UNAUTHORIZED USE OF SUCH CONTENTS IS STRICTLY PROHIBITED.
CHG LEVEL
DATE
SHEET OF
HEADSIGHT INC.
C
12
3
4
D C
B
A
1
1
E
F
G
H
D C
B
A
E
F
G
H
5
6
78
12
3
4
5
6
78
02
HT2501_PARTS
TRUESIGHT SENSOR PARTS
OCT 30, 14
MATERIAL N/A
HT2501_PARTS

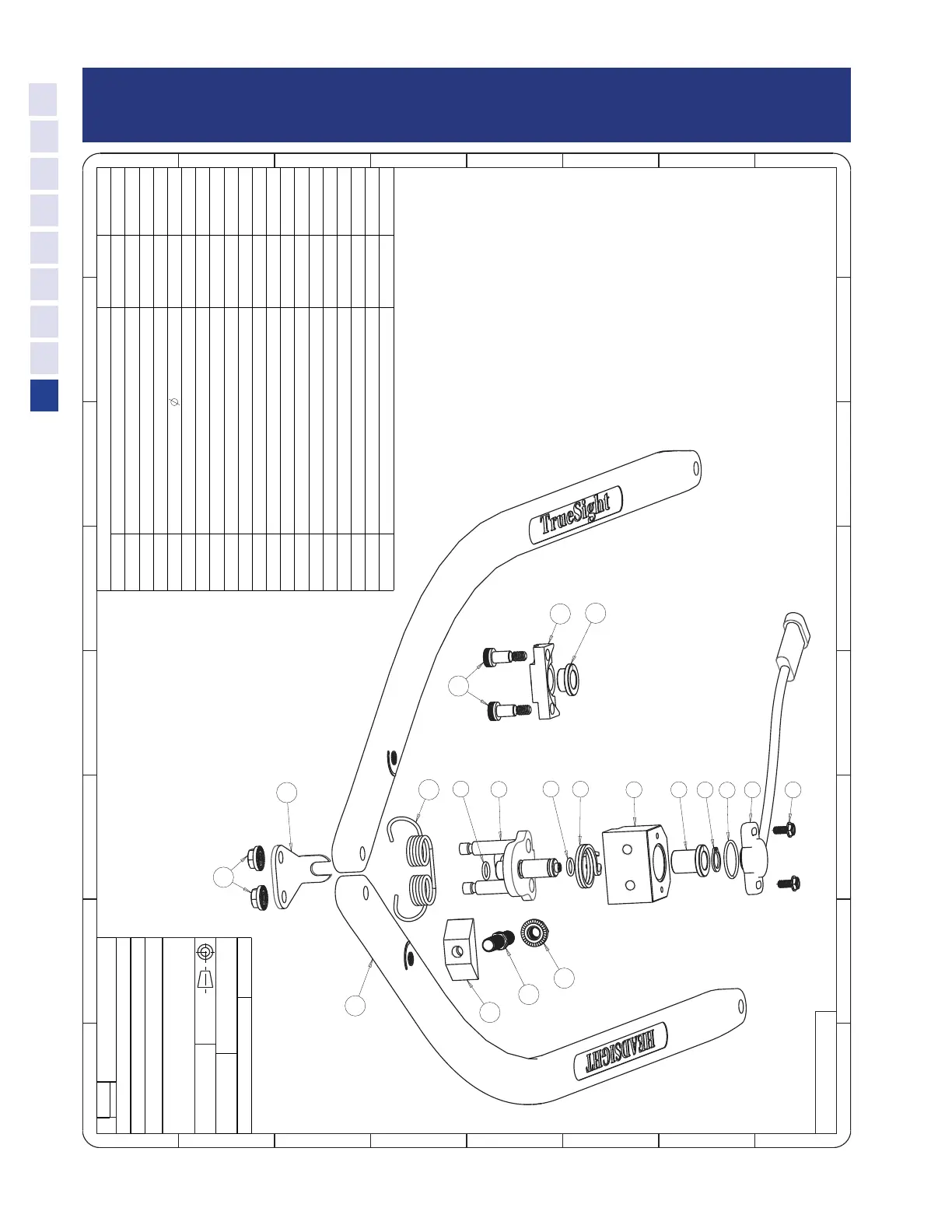

ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 08200157 10-24x1/2 SLOTTED WASHER HEAD HEX SCREW 2 2 HT2128 SENSOR 1
3 08100135 O-RING SIZE-021 1 4 08100132 RETAINING RING 1 5 08100130 BUSHING 1 6 HT2688 SENSOR BODY 1
7 HT2690 SPRING 1 8 08100138 O-RING SIZE-012 2 9 HT2672 PIVOT PLATE (INCLUDES ITEM 8, O-RINGS) 1
10 HT2692 SPRING 1 11 HT2687 SUPPORT 1 12 08200145 5/16-18 SERRATED FLANGE NUT 2 13 08100143 BUSHING 1 14 HT2669 CROP SENSOR CAP 1 15 08200214 1/4-20 THREAD, 5/16
x1/2 SHOULDER BOLT 2
16 08200131 3/8-16 SERRATED FLANGE NUT 1 17 HT2685 SHAFT ADJUSTMENT STUD 1 18 HT2681 CALIBRATION WEDGE 1 19 HT2695 POLY WAND 2
20 HT2501 COMPLETE SENSOR (ASSEMBLY EXCLUDES ITEM 19)
NOTE: SENSOR CALIBRATION TARGET VOLTAGE WITH SENSOR CENTERED = 2.50V
