Outback Bang-Bang Valves

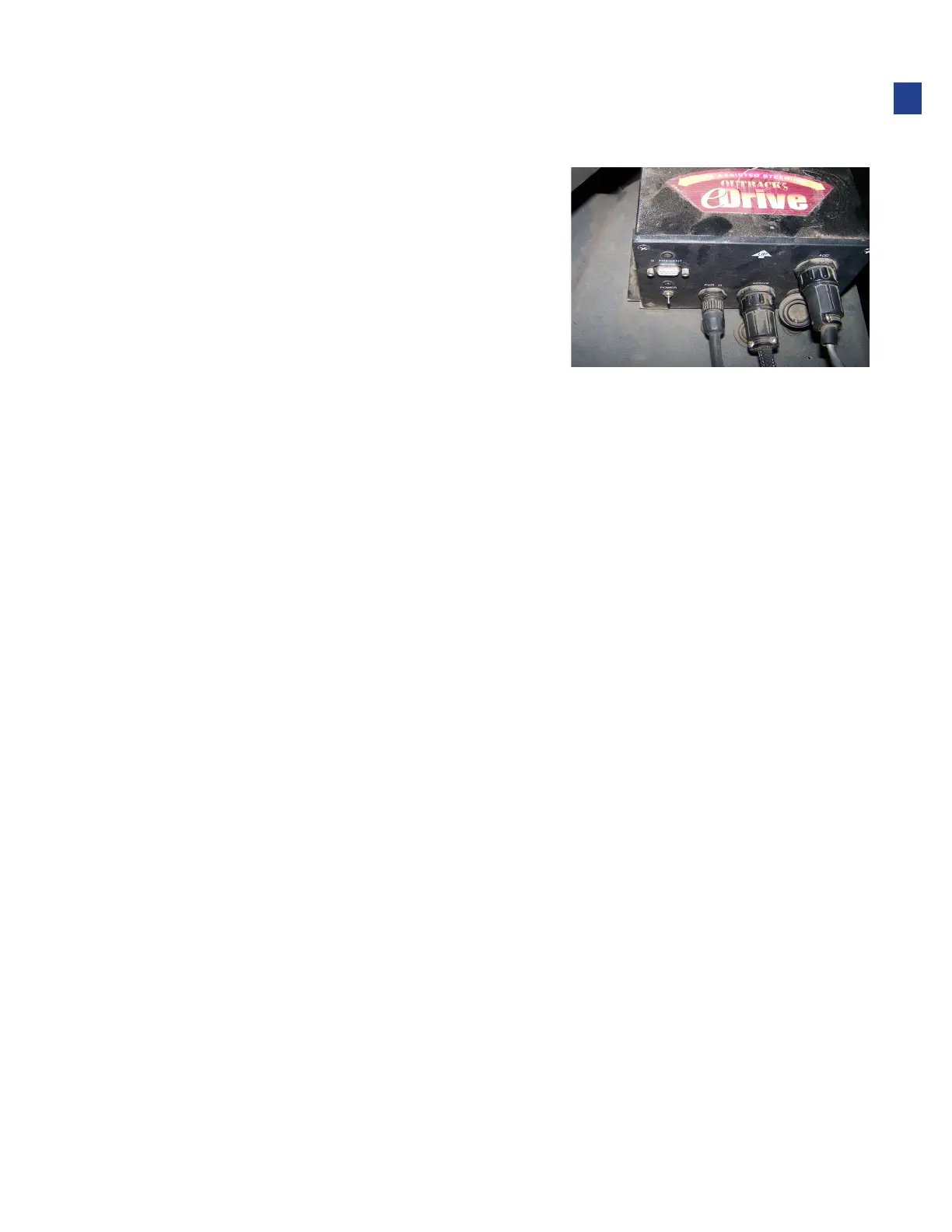

Complete System With eDrive
1. Connect Y777 and Y778 inline between
Outback valve harness and eDrive box.
2. Connect Y775 & Y776 inline to the steering override sensor.
•
2 pin Weatherpack
3. Connectors Y717A, Y718A, and Y799 are not used.
Platform Only System Without eDrive
1. Connect Y777 to Outback valve harness.
2. Connect Y799 and Y775.
•
Power Bypass connection
3. Connect Y776 to the steering override sensor.
•
2 pin Weatherpack
4. Disconnect Y717 and Y718 on main harness.
5. Connect Y717A to Y717 on main harness.
6. Connect Y718A inline to Y718 on main harness.
Outback PWM Valves
1. Outback 0151-0228-000 harness must be installed to valve assembly.
2. Connect Y753 to J1 on the Outback harness.
•
If the Outback Edrive controller is installed, connect Y752 to the Edrive harness
•
If not installing the Edrive, connect Y752B to Y752.
3. Connect Y755 to J2 on the Outback harness.
4. If installing the Edrive controller, connect Y754 to the Edrive harness. Otherwise leave it disconnected.
5. Connect Y706 to Y705 on the Main TS harness.
19
Installation
