03 SPECIFICATIONS
HTLV VALVE AND ACTUATOR SPECIFICATIONS
Valve
Model
Voltage
Input
Absorbed
Current
Absorbed
Power
Temp.
Rating
Working
Time
Max.
Torque
Limit
Switches
Battery
Backup
Option
1 ½”
24Vac 1.0–0.7A 24–17 VA
-4°F to
131°F
8 sec. 266 in-lbs
(2) SPDT
1A @250
Yes
2”
2 ½”
27 sec. 975 in-lbs
3”

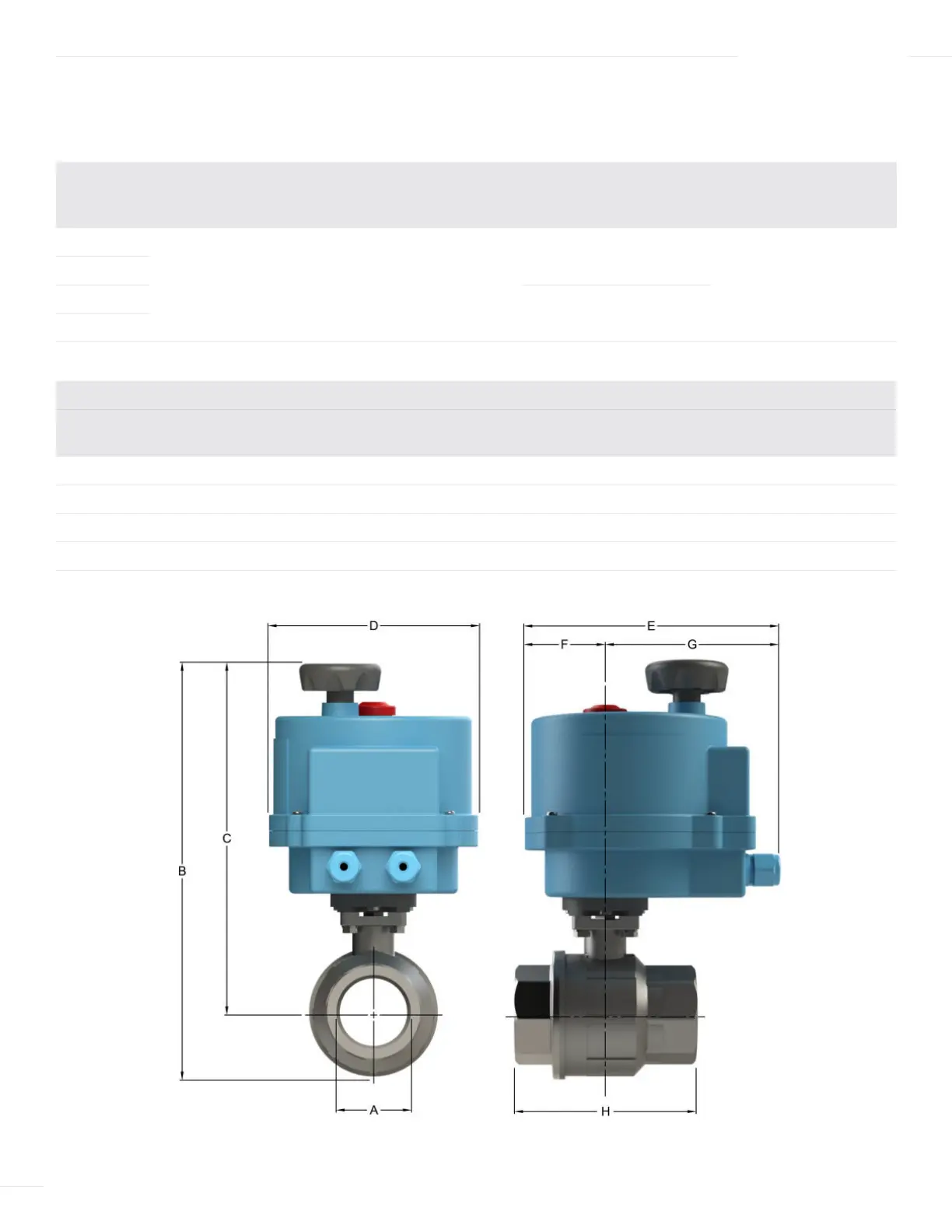

Dimensions (inches) Heat-Timer P/N
A B C D E F G H
With Battery
Backup
No Battery
Backup
1 ½ 11.4 9.88 6.18 7.48 2.38 5.1 4.4 920554–00 920544–00
2 12.15 10.24 6.18 7.48 2.38 5.1 5.31 920555–00 920521–00
2 ½ 15.06 12.74 7.28 8.43 2.66 5.77 6.32 920556–00 920546–00
3 16.51 13.77 8.31 9.33 3.31 6.02 7.01 920557–00 920561–00
