heat-timer ETV Platinum Plus - HTLV VALVE AND ACTUATOR SPECIFICATIONS

059305–00 REV. E
HEAT-TIMER CORP.
|
11
HTLV VALVE AND ACTUATOR SPECIFICATIONS
03 SPECIFICATIONS
Valve
Model
Voltage
Input
Absorbed
Current
Absorbed
Power
Temp.
Rating
Working
Time
Max.
Torque
Limit
Switches
Battery
Backup
Option
½”
24Vac 0.6A 15 VA
-4°F to
131°F
10 sec. 133 in-lbs
(2) SPDT
1A @250
Yes
¾”
1”
1 ¼”

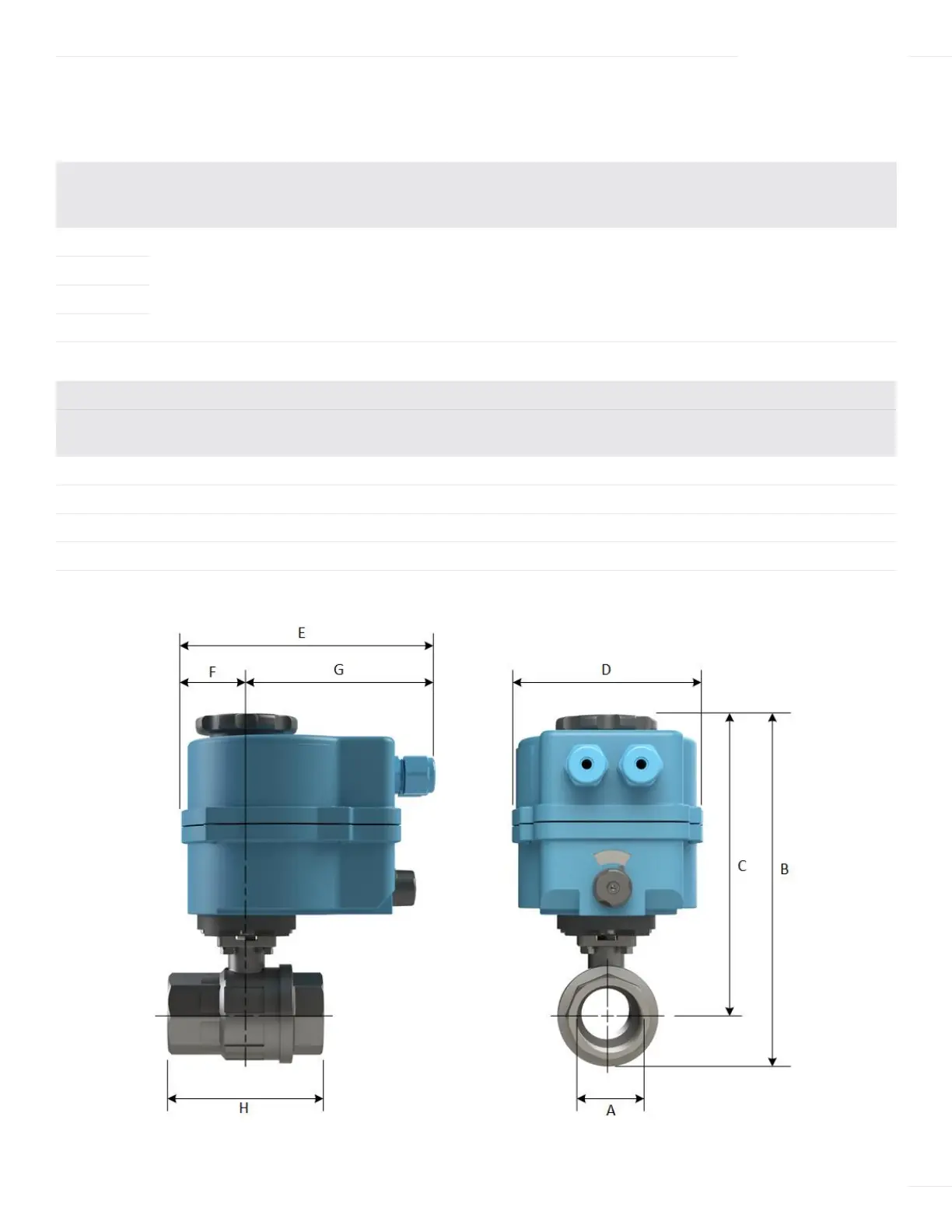

Dimensions (inches) Heat-Timer P/N
A B C D E F G H
With Battery
Backup
No Battery
Backup
½ 9.36 8.68 6.18 7.48 2.38 5.1 2.63 920550–00 920540–00
¾ 9.59 8.76 6.18 7.48 2.38 5.1 3.07 920551–00 920541–00
1 10.16 9.15 6.18 7.48 2.38 5.1 3.54 920552–00 920501–00
1 ¼ 10.56 9.29 6.18 7.48 2.38 5.1 3.93 920553–00 920543–00
