DISPLAY AND VARIABLE-FUNCTION BUTTONS

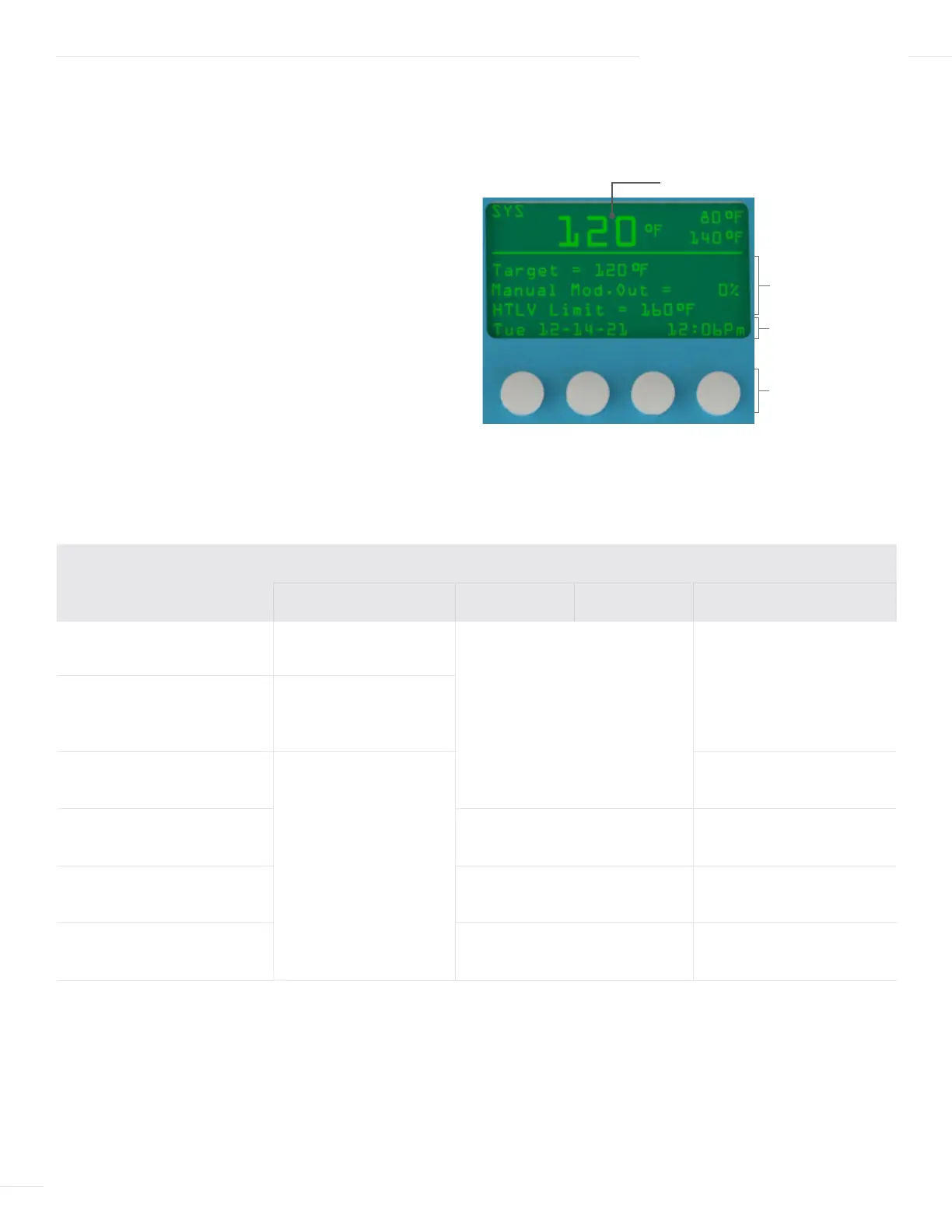

The ETV Platinum Plus display shows the system sensor
temperature and operation messages. By default, the display
shows the current Setpoint, Alarm Limit (if applicable), or
the Modulation Output percentage. See “Display Icons and
Messages” on page 41 for more information.
The area above the variable-function buttons displays the
current function for each button. This area may not be
displayed if button activity is stopped for 30 seconds in
the ETV + HTLV mode.
BUTTONS
BUTTON FUNCTION
DISPLAY
MESSAGES
SYSTEM TEMP.
The display button functions vary based on the current screen displayed, as described in the following table:
SCREEN
BUTTON
LEFT
▲ ▼
RIGHT
Default Has no function
Has no function
MENU
Enters the menu mode
In Lockout
LOCKOUT
Enter the Lockout
Reset menu
Lockout Reset
BACK
Goes back one
menu step
RESET
Ends current alarm
Menu Scrolls through the menu
SELECT
Selects current menu item
Setting Changes the current setting value
SAVE
Saves current setting
Configuration
NEXT or EXIT
Jumps to next view or exits
