heat-timer ETV Platinum Plus - Network Communication Options; Set Present Date and Time

059305–00 REV. E
HEAT-TIMER CORP.
|
47

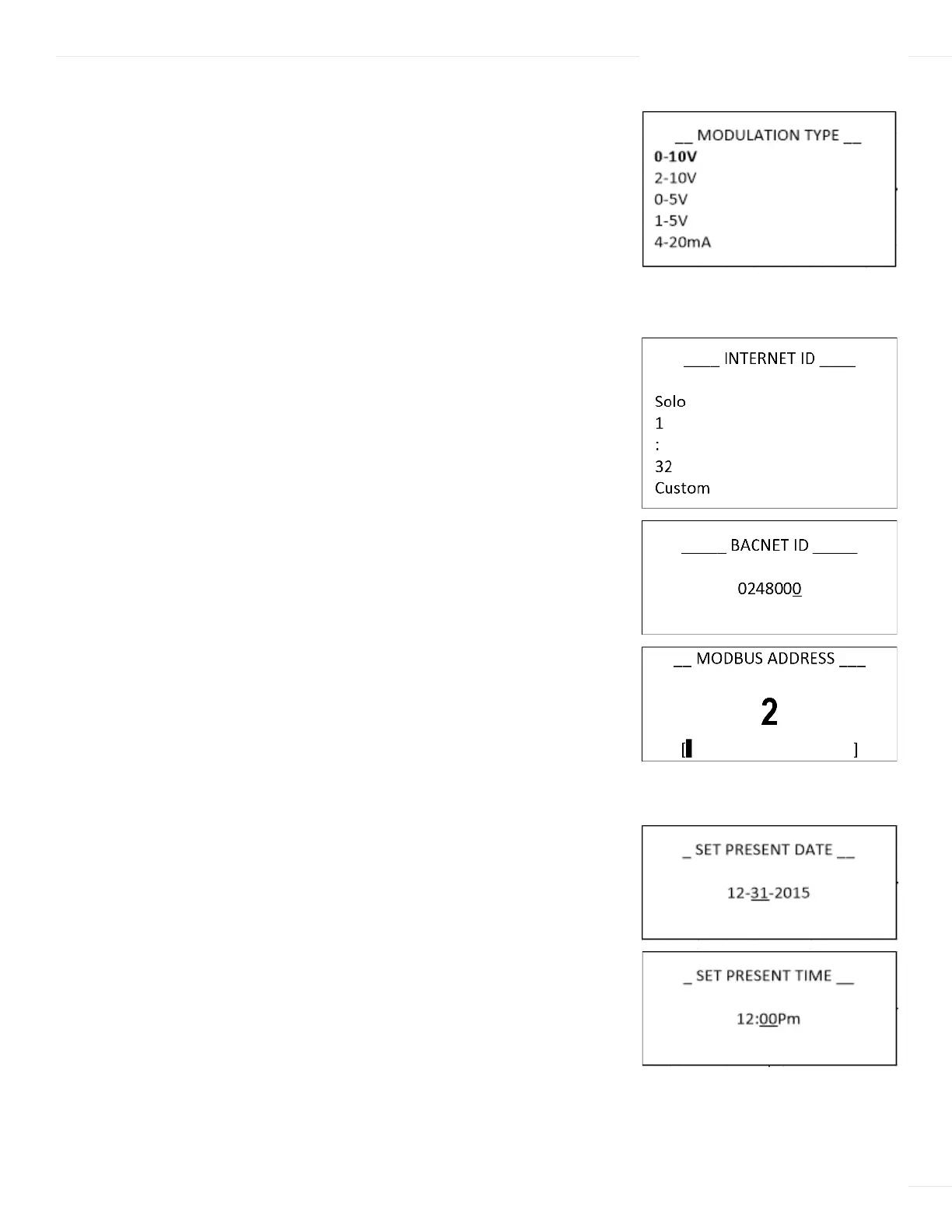

Selections: 0–10V, 2–10V, 0–5V, 1–5V, 4–20mA Default: 0–10V
Available in Control Mode: ETV or ETV + HTLV
Menu Path: /System Startup > Display Unit > Setpoint Input> AUX1 Input > AUX2
Input> ... > Modulation Type
Description: The ETV is capable of operating a variety of 3-way valve Actuators. Heat-
Timer factory-supplied Actuators are set to 0–10V signal.
The modulation signal selected must match the Actuator modulation signal.
NETWORK COMMUNICATION OPTIONS
Selections: Network communications settings
Available in Control Mode: All
Menu Path: /System Startup > ... > Modulation Type > {comm options}
Description: During startup, the ETV Platinum Plus detects an installed network option.
If no network is detected, network configuration screens are bypassed.
• RINET–Internet ID (Solo, 1–32, or Custom)
– Solo: if the ETV Platinum Plus is directly connected to the modem
– Internet ID 1–32: if the ETV Platinum Plus is connected to a router (Port
Forwarding must also be configured on the router)
– Custom: IP address, Subnet mask, Default gateway, DNS server
• BACnet–BACnet ID, BACnet option (IP or MSTP)
– BACnet IP: IP address, Subnet mask, Default gateway,
BACnet port
– BACnet MSTP: MSTP address and Baud rate
• Modbus–Modbus address, Modbus option (Serial, TCP, or UDP)
– Modbus Serial: Baud rate
– Modbus TCP or UDP: IP address, Subnet mask, Default gateway,
DNS server
SET PRESENT DATE AND TIME
Selections: Numerical values for Month, Day, Year, and Time
Available in Control Mode: All
Menu Path: /System Startup > ... > Modulation Type > {comm options} > Set
Present Date > Set Present Time
Description: Sets the present date and time on the control. The date and time are used
to regulate the Schedule.
The ETV battery is used to maintain the date and time during power outages.
