06 DISPLAY AND PROGRAMMING
DAYLIGHT SAVING
Selections: Enable, Disable Default: Enable
Available in Control Mode: All
Menu Path: /System Startup > ... > Set Present Date >
Set Present Time > Daylight Saving
Description:
Enables or disables Daylight Saving mode. When enabled, the present
time on the control will be automatically adjusted for Daylight Savings Time.
- OUTDOOR CUTOFF -
65
o
F
[ ]
BACK ▲▼ SAVE
Outdoor Temperature (in °F)
70 60 50 40 2030 0 -1010 -20
120
140
130
150
160
170
180
100
110
Water Temperature (in °F)
Custom Reset Ratio
Point1: System=120°F
Oudoor=60°F
Point2: System=170°F
Oudoor=0°F
Point1
Point2
Customized Reset Ratio
Max Target
Min Target
MINIMUM WATER TEMP
70
o
F
[ ]
BACK ▲▼ SAVE
------- OFFSET ------
+0
o
F
[ ]
BACK ▲▼ SAVE
Outdoor Temperature (in °F)
70 60 50 40 2030 0 -1010 -20
120
140
130
150
160
170
180
100
110
Water Temperature (in °F)
Custom Reset Ratio
Point1: System=120°F
Oudoor=60°F
Point2: System=170°F
Oudoor=0°F
Point1
Point2
Customized Reset Ratio
Max Target
Min Target
7060504020300-1010-20
120
140
130
150
160
170
180
100
110
Water Temperature (in °F)
Outdoor Temperature (in °F)
Target Offset
Offset=10°F
Reset Ratio=1.5 : 1.0
Reset Ratio
Max Target
Min Target
Reset Ratio + 10F Offset
Min Target=120°F
Max Target=170°F
MINIMUM WATER TEMP
70
o
F
[ ]
BACK ▲▼ SAVE

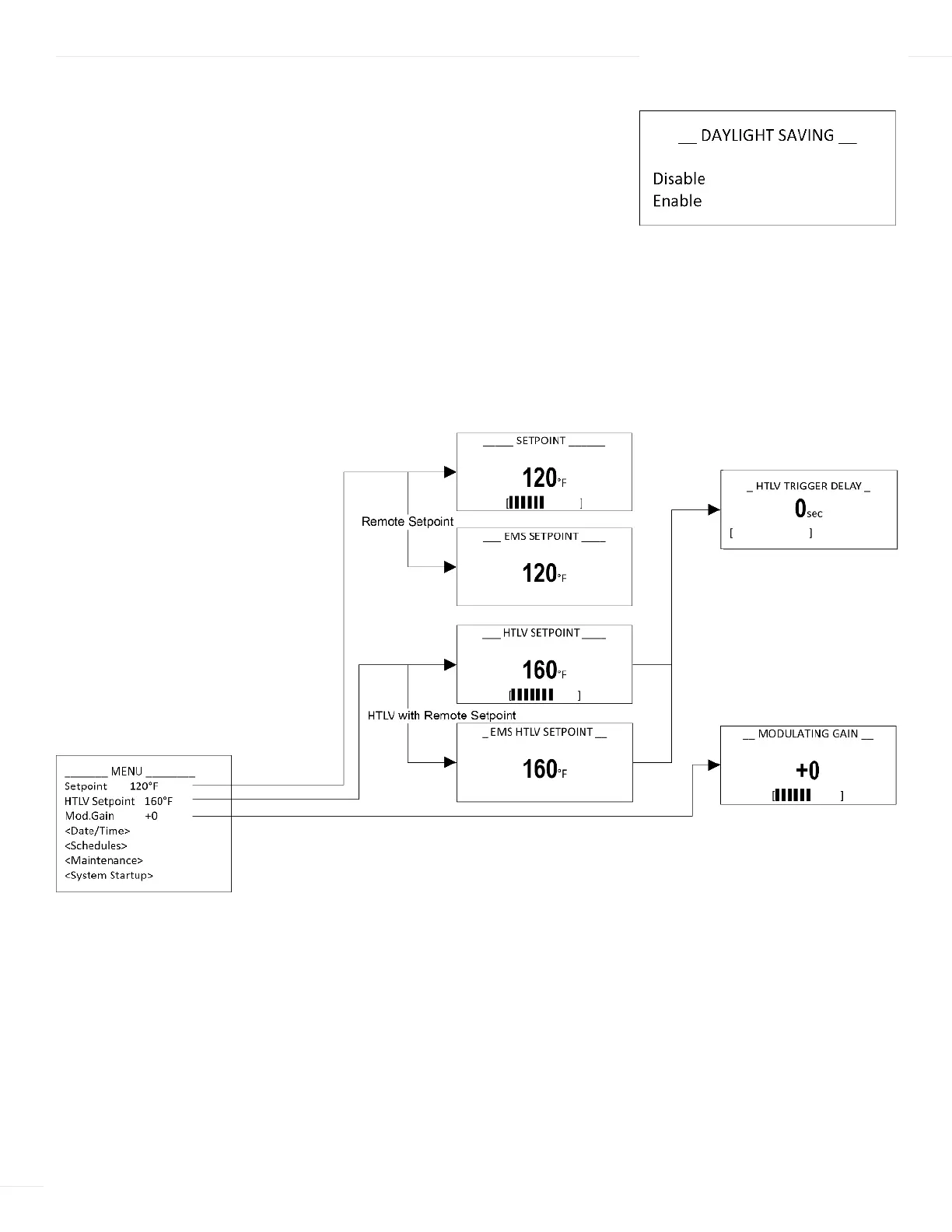

MAIN MENU
The main Menu is used to configure setpoints, HTLV, and modulating gain.
