01 CONTROLS, INDICATORS, AND CONNECTIONS
ITEM DESCRIPTION
1 Output Status LEDs
See “ETV Platinum Plus Control Module Output
Status LEDs” on page 8
2 Digital Display
See “Display and Variable-Function Buttons”
on page 39
3 Variable-Function Buttons
See “Display and Variable-Function Buttons”
on page 39
4 Internet/BACnet/Modbus Connection
Communications interface
5 Prove Input Connection
6 EMS 4–20mA Remote Setpoint Connection
7 AUX Inputs—Sensor or Switch (2)
8 System Temperature Sensor Input Connection
ITEM DESCRIPTION
9 Program/Run Switch
Places the ETV Platinum Plus in programming
mode or run (normal operation) mode
NOTE: Programming mode may be password
protected—See page 52
10 Motorized Mixing Valve Modulating Signal
Connections for Valve 1 and Valve 2
11 HTLV (High Temp Limit Valve) and Alarm
Output Connections
NOTE: The Outputs do not provide power. A
separate power source must be provided
12 Communication Modem Reset
NOTE: Used if Internet communication is lost
for more than one hour
13 Actuator 24Vac Power Source Connection
14 120Vac Power Input Connection

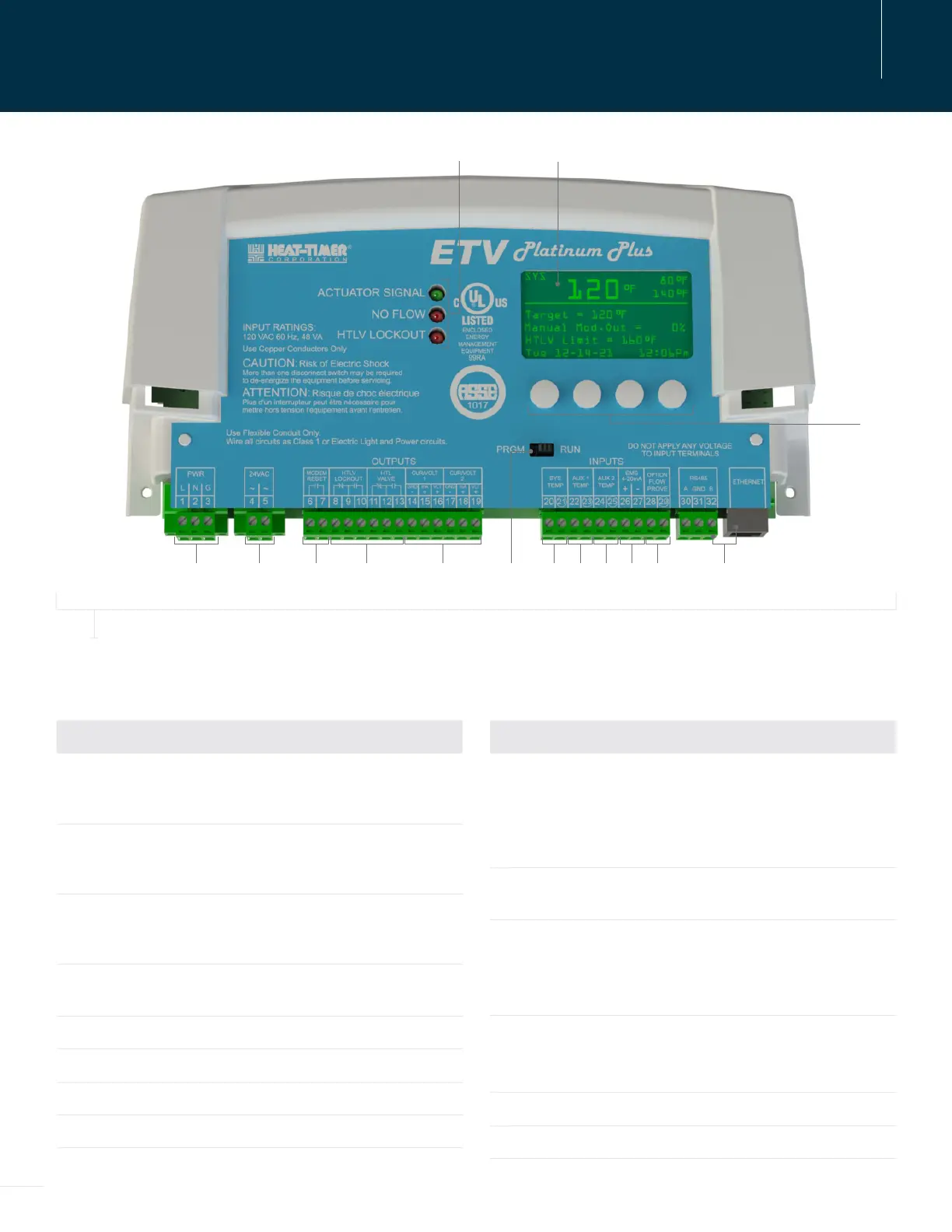

FIGURE 1
ETV PLATINUM PLUS CONTROLS, INDICATORS, AND CONNECTIONS
2
9
12 11 101314 8 7 6 5 4 4
3
1
