2.2 Rear Panel
2.2.1 General equipment rear panel introduction

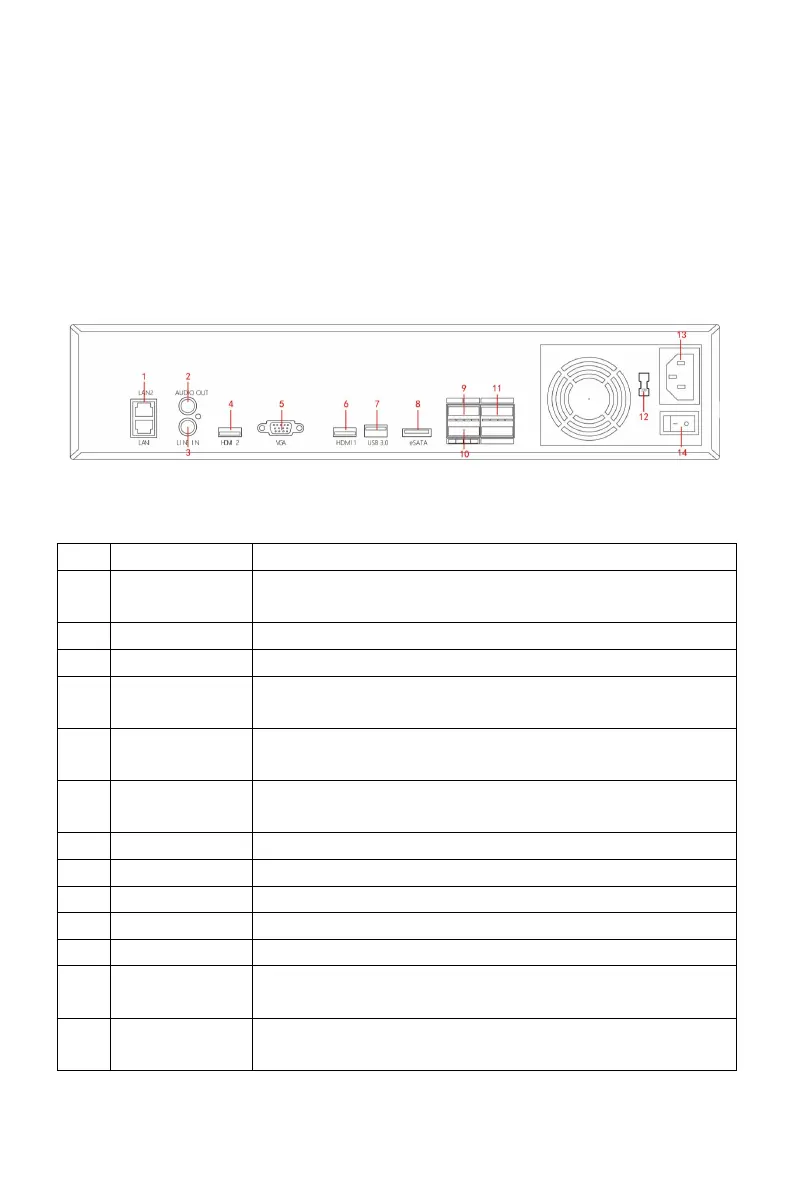

The schematic diagram of the rear panel of the common equipment is as
follows:
Figure 2-2
The corresponding description of each interface in Figure 2-2 is shown in the
following table:
No.
Name
Description
1
Ethernet port
1/2
Connect Network
2
Audio output
Equipment audio output interface
3
Audio Input
Equipment audio input interface
4
HD Video
Output 2
Connect HD display devices such as computer
monitors
5
VGA
Connect VGA display devices such as computer
monitors
6
HD Video
Output 1
Connect HD display devices such as computer
monitors
7
USB3.0
Connect the mouse or U disk backup
8
eSATA
External hard drive interface
9
Ground 485
Alarm when equipment is grounded
10
Alarm Output
Equipment alarm output interface
11
Alarm Input
Equipment alarm input interface
12
Power toggle
switch
115V/230V Switch
13
Power
Connector
Device power connector
