HeroSpeed NVR - 3.2 Device Connection

16
(3) (4)
Figure 3-1

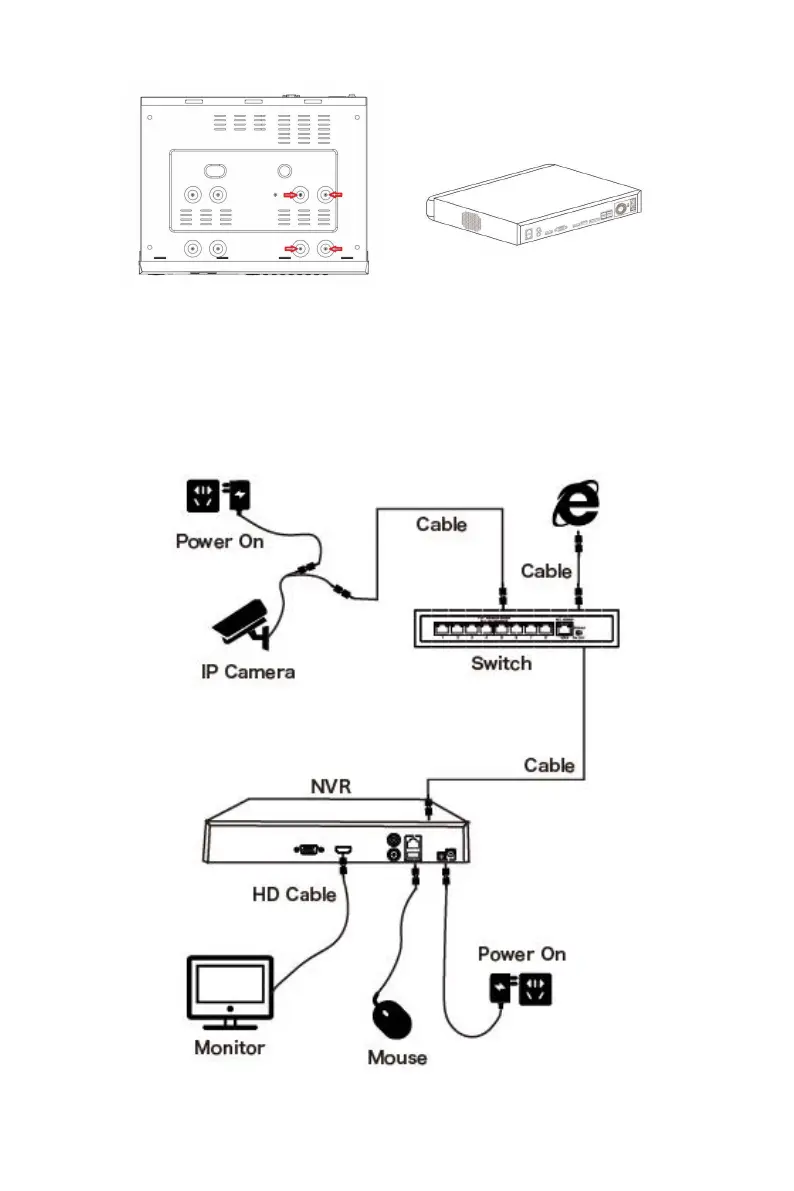

3.2 Device Connection
Use VGA cable or HD cable to transmit the NVR signal to the display. If it is a
controllable PTZ, use wire to connect RS485 A cable and RS485 B cable to the
corresponding RS485 interface on NVR, as show in Figure3-2.
Figure3-2
