1 Overview
This section provides a high level overview of the features of the Ultrastar Data60.
1.1 Ultrastar
®
Data60 Description

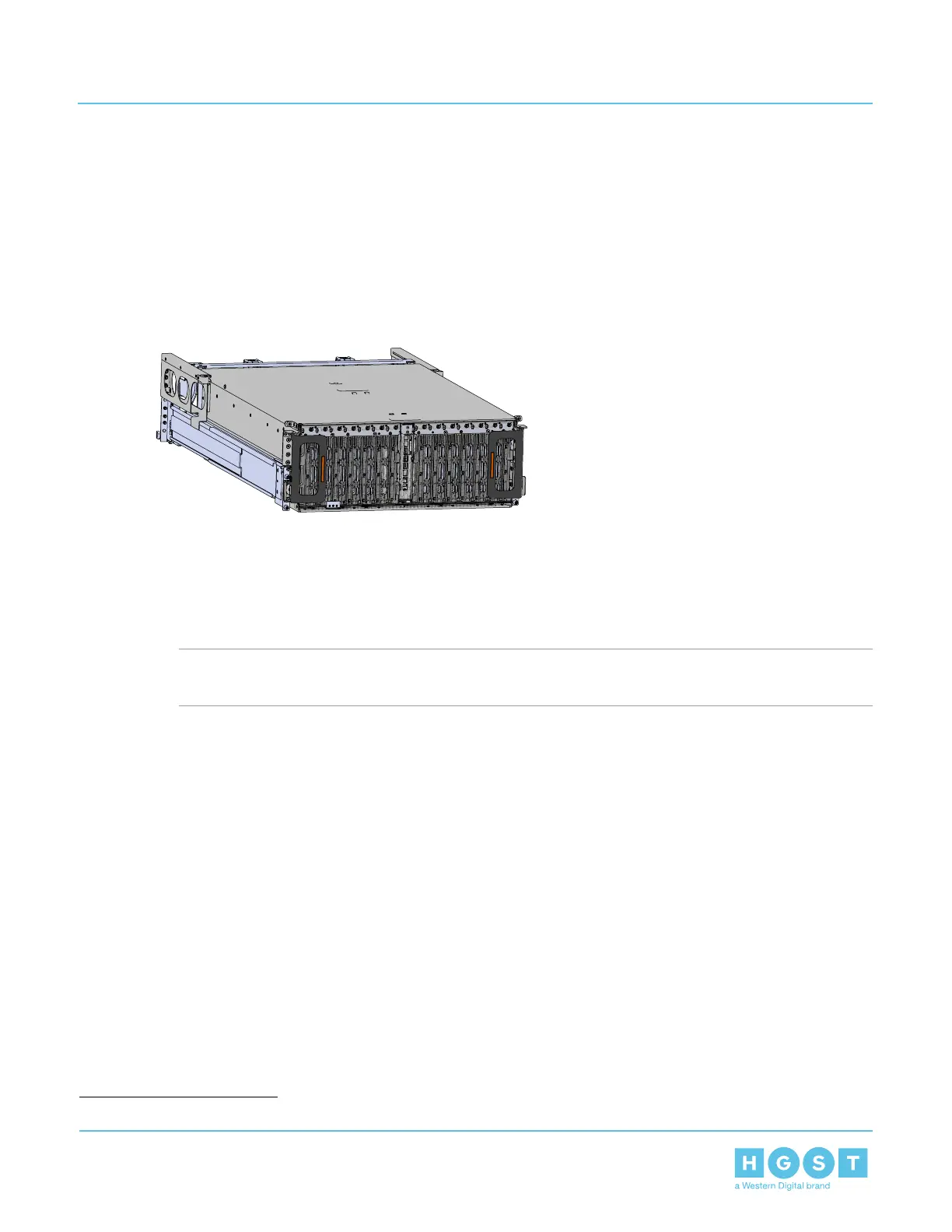

Figure 1: Ultrastar Data60
The Ultrastar
®
Data60 is a 4U form factor, high availability, high density, rack-mounted storage enclosure that
is capable of hosting up to 60 SAS or SATA drives. The maximum data storage capacity of the Ultrastar
Data60 is 840 TB using 14TB HGST Ultrastar
®
HC530 drives . (For a full list of compatible drives and total
storage capacities, see the List of Compatible Drives on page 23.) The enclosure runs on an input voltage
of 200 - 240 VAC and consumes ~1000W of power under typical conditions. It requires a maximum of ~1250W
at full load.
Note: Max and Typical Power Consumption values represent the output power to the system. Input
power will vary depending on the PSU efficiency and load sharing between PSUs
It is designed to fit within a 4U rack space and requires 900mm (35.43in.) usable rack space, frame to frame.
A fully loaded system will add 79.4 kg. / 175 lbs. of static load when fully loaded with drives.
• 4U Storage Enclosure
• Supports up to 60 Drives
• Can support 3.5” drives and 2.5” SSD drives (2.5" requires an adapter) in the 60 available drive bays.
• Up to 12W per drive slot for the 60 data storage drives (Cannot exceed 85A on the 5V rail)
• House and control four (4) N+1 redundant 80mm rear fans
• House and control a dual rotor 40mm internal IOM Fan
• Controlled by two (2) redundant I/O Modules
• Powered by two (2) redundant 1600W PSUs
• Full high availability with independent dual paths to all HDDs
• Toolless replacement of all Customer Replaceable Units (CRUs)
• Fits within a standard EIA-310 rack including all necessary cable management
• Supports up to 4m passive SAS cables and also supports active cables
• Supports Highline Input Power
1
SATA based models will only include 1 IOM
10
1 Overview
User Guide 1.1 Ultrastar
®
Data60 Description
