1.3 System Level Block Diagram

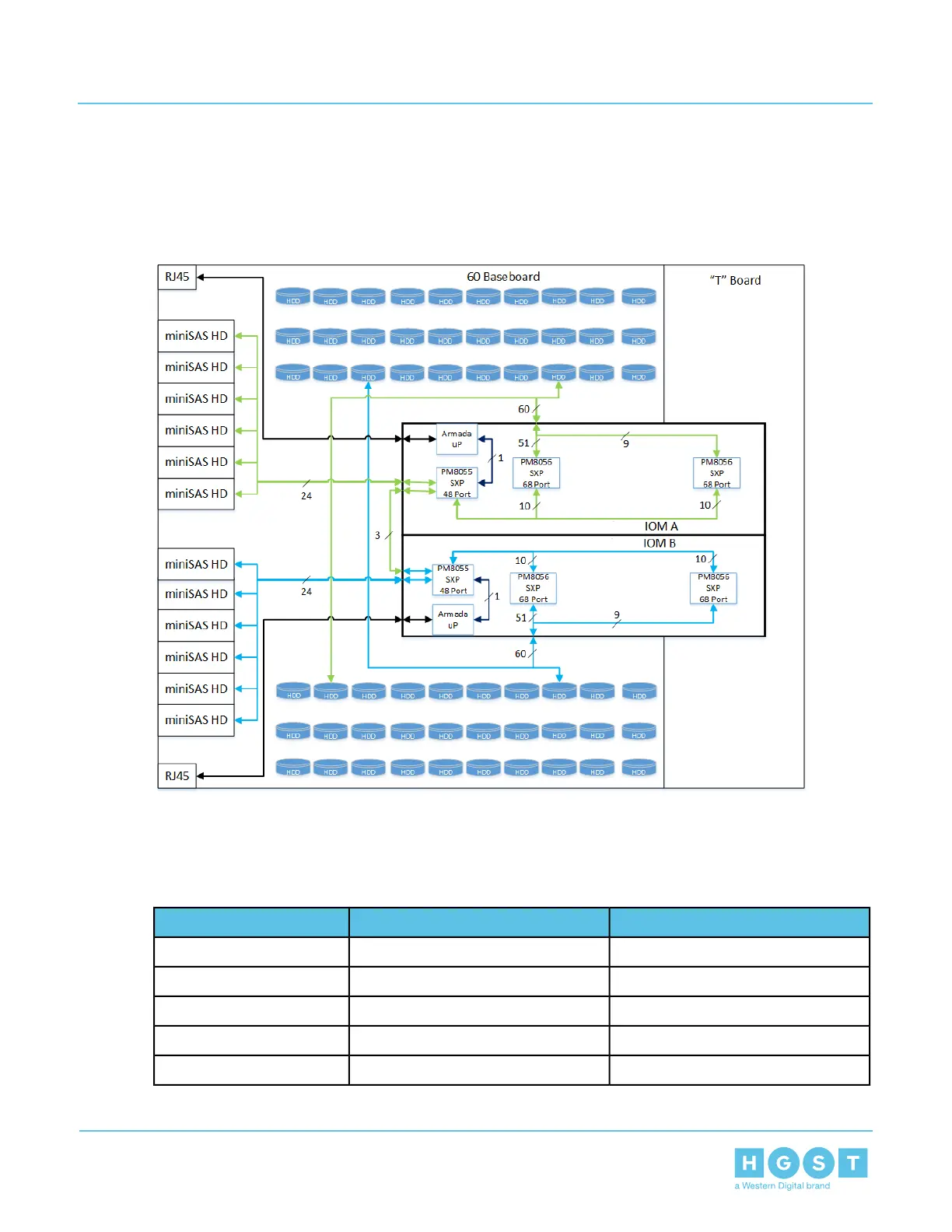

The following image shows the system block diagram for the Ultrastar Data60. .
Figure 2: System Block Diagram
1.4 Ultrastar Data60 Specification Summary
Table 1: Environmental Specification Summary
OperationalNon-OperationalSpecication
5°C to 35°C-40°C to 70°CTemperature
20°C per hour maximum30°C / HrTemperature Gradient
1°C per 125m above 950m1°C per 300m above 3000mTemperature De-rating
8-90% Non-Condensing8-90% Non-CondensingRelative Humidity
30% per hour maximum30% per hour maximumRelative Humidity Gradient
