3.2.3 IOM Blank Description

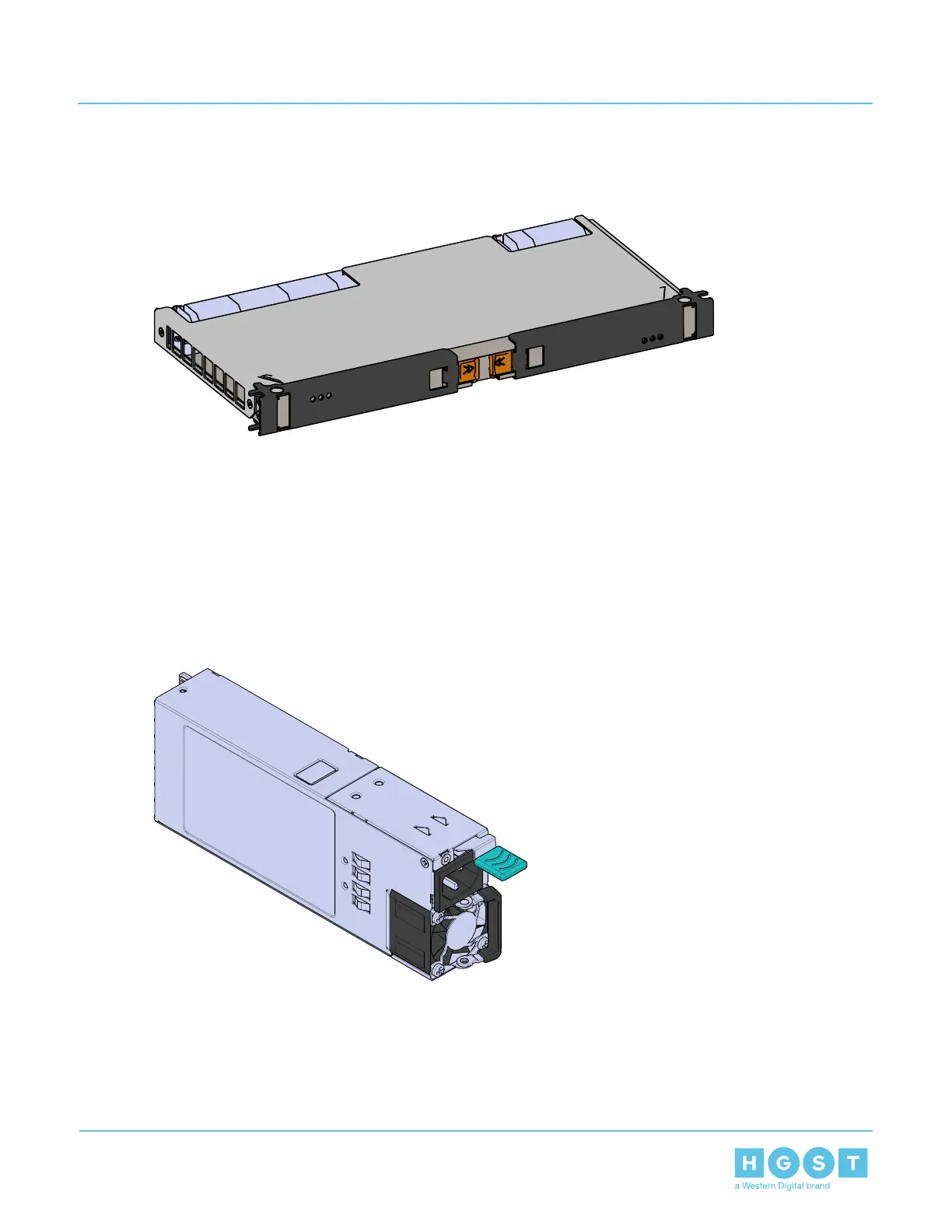

Figure 16: Overview Image
The IOM Blank is a placeholder component that is used to fill the unused IOM slot. in versions of the Ultrastar
Data60 that do not leverage redundant IOMs. The IOM Blank may only be installed into IOM slot B under all
circumstances. When at the front of the enclosure, Slot B is the left-hand slot. It is necessary to have a blank
installed in this unused slot in order to ensure the proper airflow dynamics that are within operational parameters
designed for the enclosure, but has no functional component beyond this feature.
3.3 PSU Description
Figure 17: Overview Image
Ultrastar Data60 contains redundant 1600W Power Supply Units (PSU). Each PSU requires an input voltage
of between 200 - 240 VAC. The PSUs are 80 PLUS Platinum certified, and utilize C14 power cable receptacles.
38
3 Component Overviews
User Guide 3.3 PSU Description
