Chapter
3
3 Component Overviews
This section is intended to give an overview of all of the major components contained within the Ultrastar
Data60. Each section includes specifications, descriptions, and images that explain the features of each
component.
3.1 Chassis Description

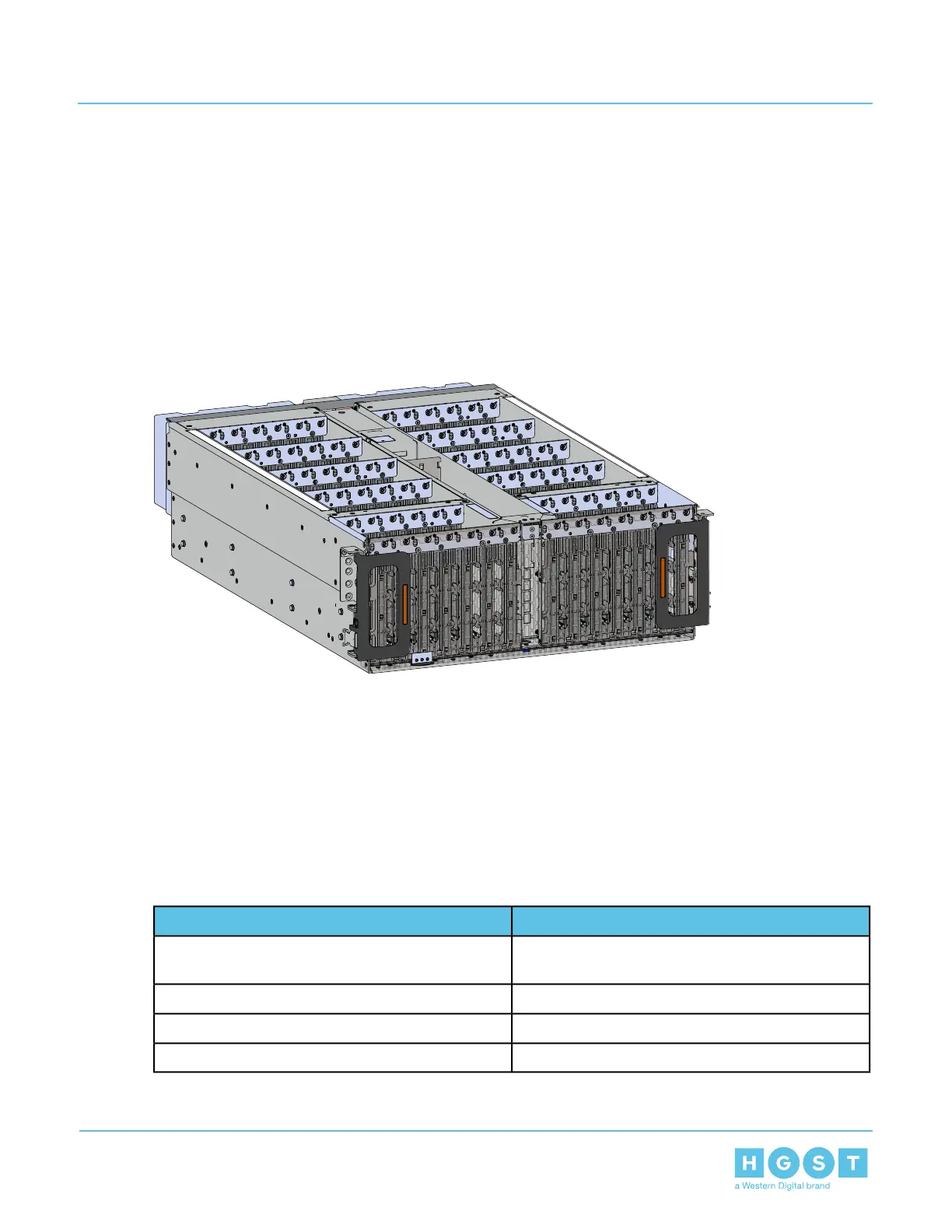

Figure 12: Overview Image
The chassis is the primary housing that contains and connects all of the system components that comprise
the Ultrastar Data60. The chassis is comprised of the drive bay that contains all of the system data storage
drives and a number of other bays that contain the major system components such as the PSUs and . Other
system components are attached to the exterior of the chassis such as the rear fans and rails to provide
system cooling andrackmounting capability. The chassis also houses the baseboard which is mounted in the
bottom of the chassis' tub and is the primary data pathway that connects all of the enclosure's system
components. The chassis has internal backflow preventers to prevent hot air from re-entering the enclosure.
3.1.1 Chassis Specifications
Table 17: Specification Summary
ValueSpecication
447 mm x 807 mm x 172.7 mm / 17.6 in. x 31.77 in. x
6.8 in.
Dimensions
1EX0443 / 1EX0442 for single IOM chassis replacementPart Number
NoHot Swappable?
20 kg / 44 lbsWeight
34
3 Component Overviews
User Guide 3.1 Chassis Description
