4. Slide the clamp back toward the drive making sure that the two plastic pins on the side of the drive properly
install into the drive screwholes. If these pins are not seated properly, unlatch the clamp and retry.

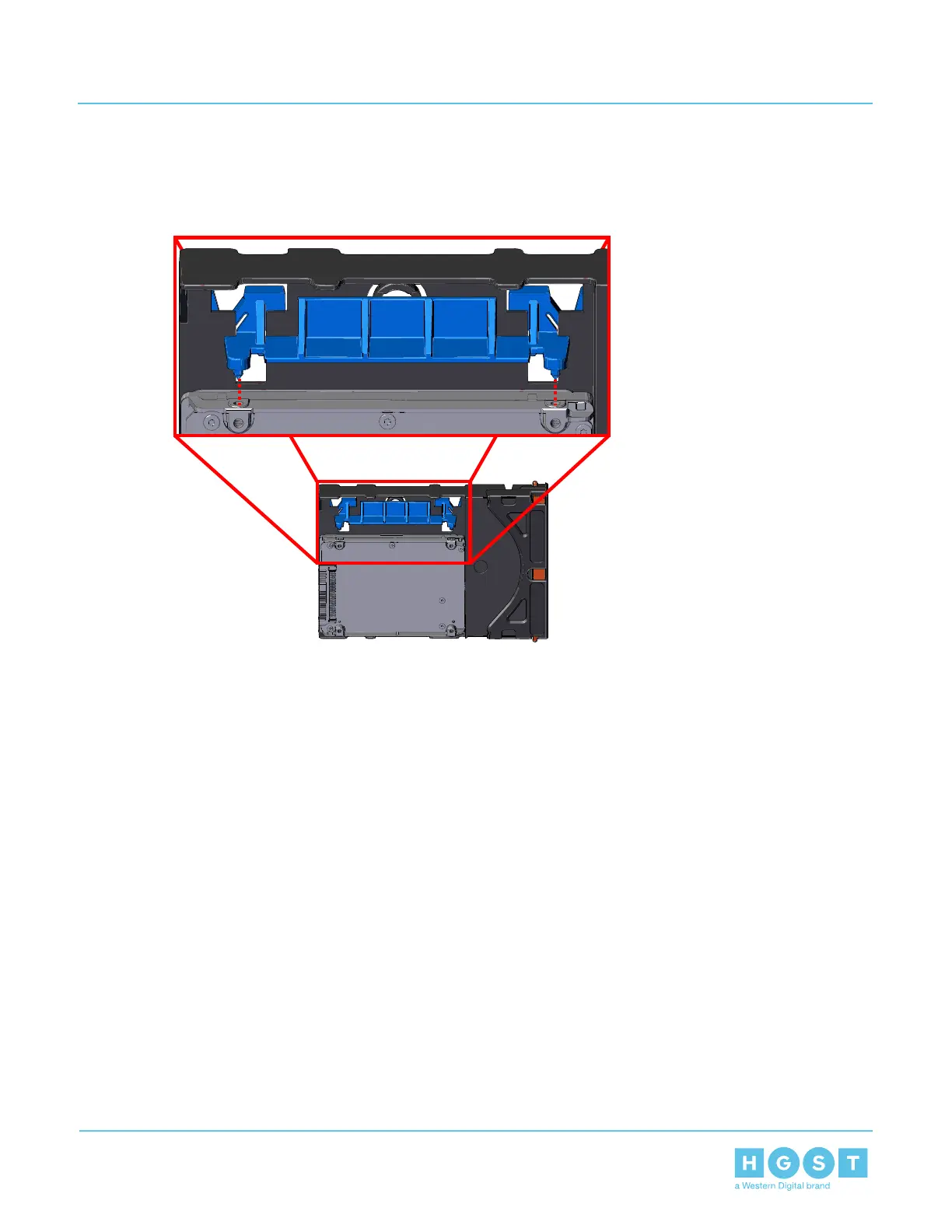

Figure 34: Clamp Pins (clamp shown in blue for visual clarity)
3.8.4 Drive Blank Description
The drive blank is a placeholder component that is used to fill empty drive slots in the chassis when a Ultrastar
Data60 enclosure is partially populated with drives. The purpose of the drive blank is to maintain proper airflow
and cooling of the enclosure and the components within the enclosure. For more information on requirements
for a partially populated enclosure, see: Partially Populated Enclosures on page 183.
55
3 Component Overviews
User Guide 3.8 Drive Assembly Description
