5.4.2 One Host Cable Configurations
This section provides the information required to connect two or more enclosures to a single host via SAS
connections. Choose the cable map that fits the preferred daisy chaining requirement.

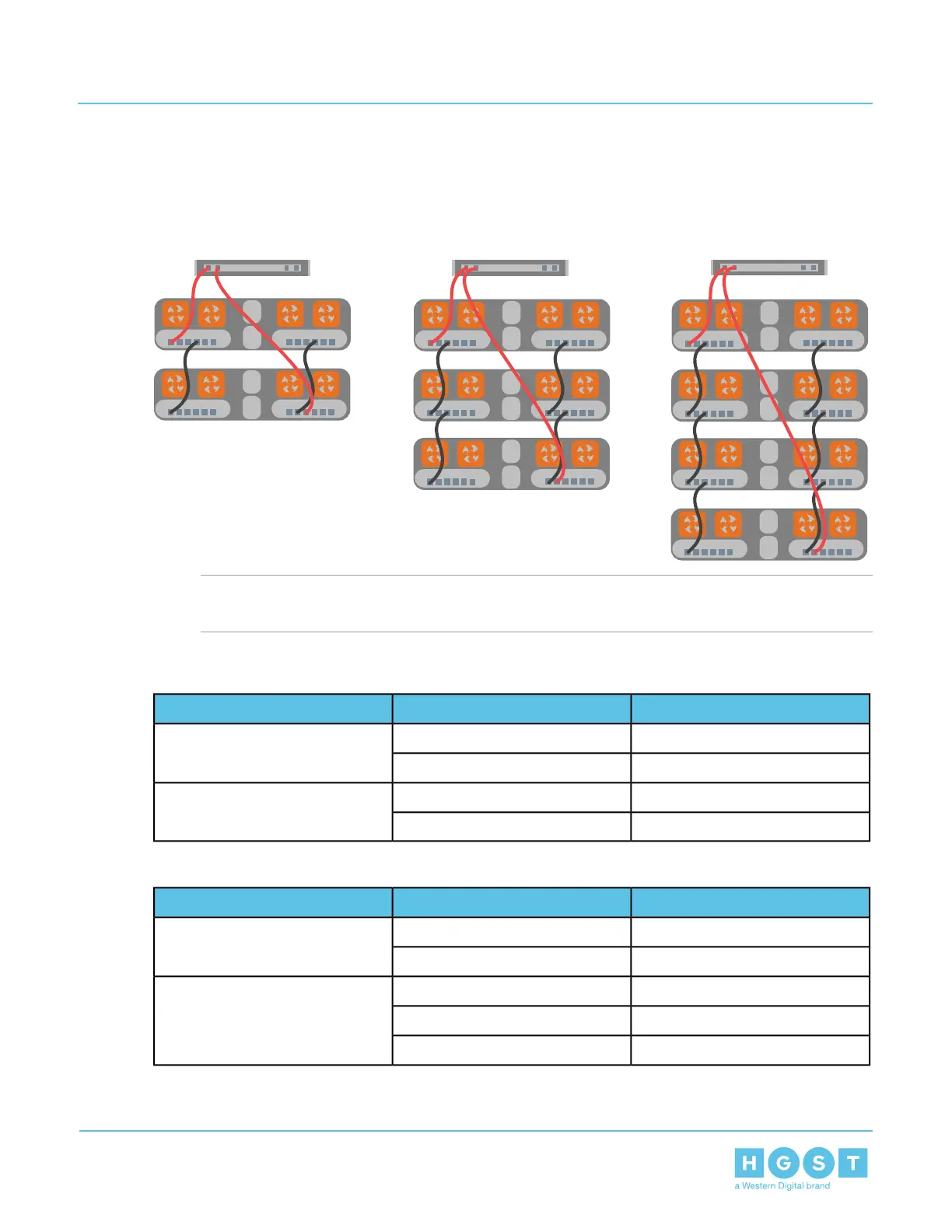

Figure 202: Enclosure Configurations with One Host with a Single HBA
Note: The diagram displays red SAS cables to indicate passive connections between the host and
the enclosure. The black SAS cables indicate active connections between each enclosure.
Table 46: Two Enclosures: One Host with a Single HBA
Destination DeviceSource DeviceHardware
Enclosure1: IOMA, A1Host1: P1Host Connections
Enclosure2: IOMB, B3Host1: P2
Enclosure2: IOMA, A1Enclosure1: IOMA, A4Enclosure Connections
Enclosure2: IOMB, B2Enclosure1: IOMB, B4
Table 47: Three Enclosures: One Host with a Single HBA
Destination DeviceSource DeviceHardware
Enclosure1: IOMA, A1Host1: P1Host Connections
Enclosure3: IOMB, B3Host1: P2
Enclosure2: IOMA, A1Enclosure1: IOMA, A3Enclosure Connections
Enclosure2: IOMB, B1Enclosure1: IOMB, B3
Enclosure3: IOMA, A1Enclosure2: IOMA, A3
191
5 System Management
User Guide 5.4 Daisy Chaining
