OperationalNon-OperationalSpecication
450mm (17.72in.) with 465mm (18.31in.) ± 1.5mm nominal hole spacing.
See EIA-310 Rack Standard
Required Rack Width
900mm (35.43in.) usable rack space, frame to frameRequired Rack Depth
4URack Units (U)
24 in. - 32 in.Vertical Rack Rail Spacing
Table 4: Performance Specifications
ValueSpecication
60Number of Drive Slots
12Gbps SAS / 6Gbps SATAData Transfer Rates
840 TB using 14TB HGST Ultrastar
®
HC530 drivesMax Raw Data Storage Capacity
12 x Mini-SAS HD ( 6 per IOM)
2 x 10/100/1G Ethernet
SAS Ports
1.5 Ultrastar Data60 Layout

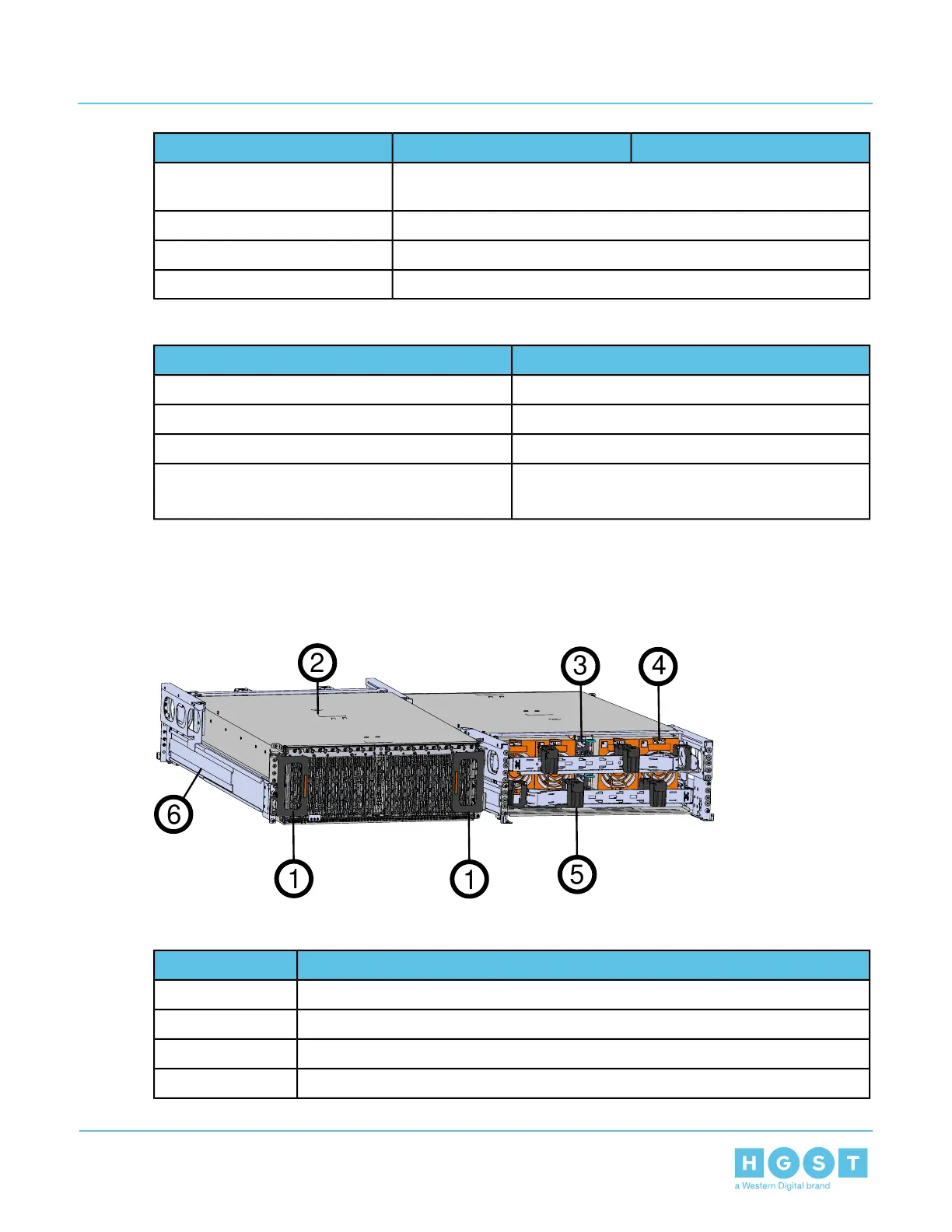

Figure 3: Front and Rear Product Layout
6
2
1
1
5
3 4
Table 5: Front and Rear Component Identification
ComponentNumber
Enclosure Handles1
CMAs2
CMA Tray3
Rear Fans4
14
1 Overview
User Guide 1.5 Ultrastar Data60 Layout

HGST Ultrastar Data60 H4060-J Specifications

General

Brand	HGST
Model	Ultrastar Data60 H4060-J
Category	Server
Language	English
