ComponentNumber
PSUs5
Chassis Cover6
Rear Alignment Brackets7
Rails8

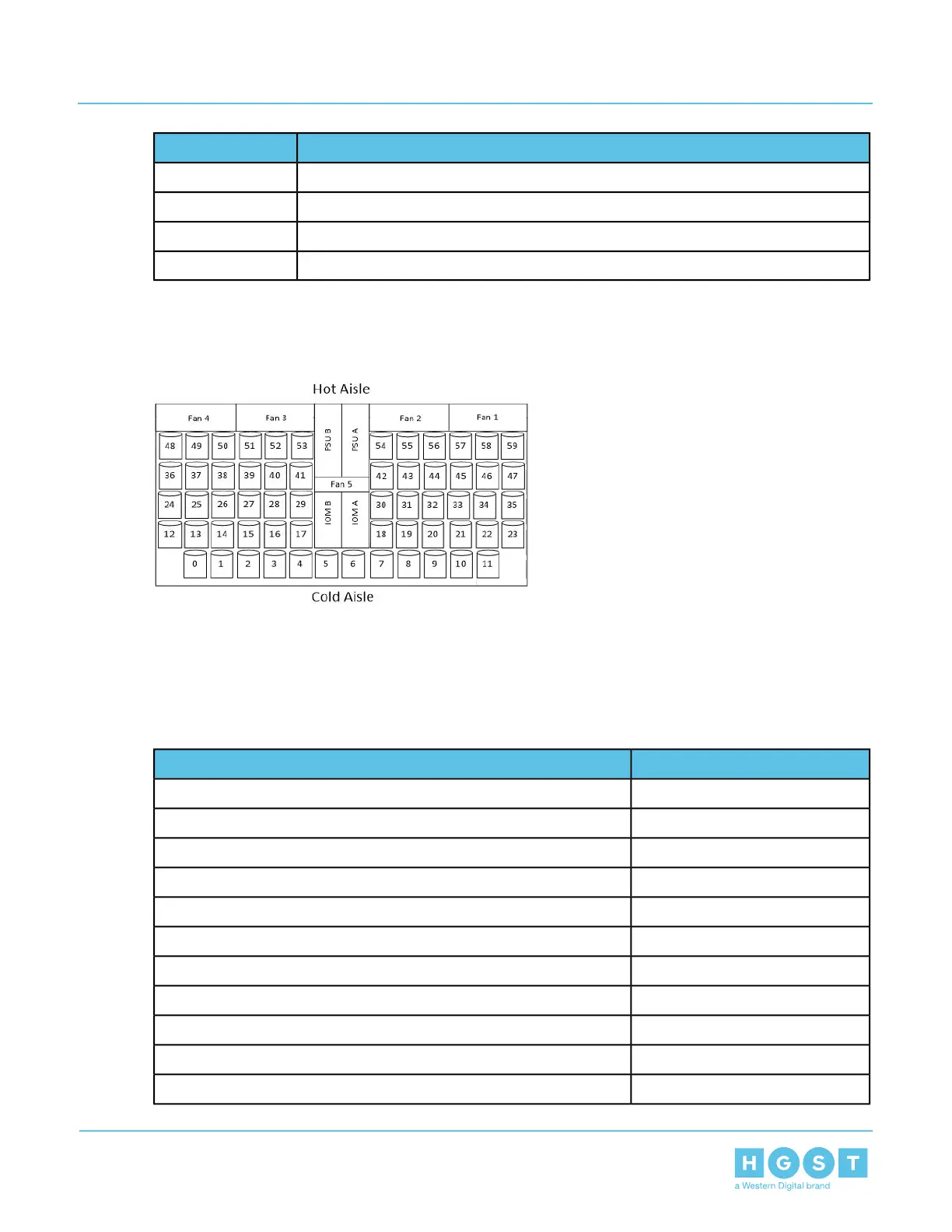

The following is an image of the layout of the major system components inside the Ultrastar Data60.
Figure 4: Component Layout
1.6 List of Customer Replaceable Units (CRUs)
The following table lists the replaceable components and their part numbers.
Table 6: List of Replaceable Components
Part NumberComponent
1EX0442Ultrastar Data60 Chassis with a single IOM and PSU
1EX0443Ultrastar Data60 Chassis with IOMs and PSUs
1EX0430IOM
1EX0431IOM Blank
1EX0434PSU 1600W
1EX0433Rear Fan
1EX0432IOM Fan
1EX0435Rails
1EX1174CMA
1EX1119CMA Cable Tray
1EX04383.5 in. Drive Carrier, Qty=1
