b) Find the LED pointer on the top of the drive carrier. This pointer should point toward the front of the unit
as shown in the following image.
Figure 59: LED Pointer Orientation
c) Align the drive with the empty slot that will receive it. Lower it into the slot, making sure it stays level
and does not snag.

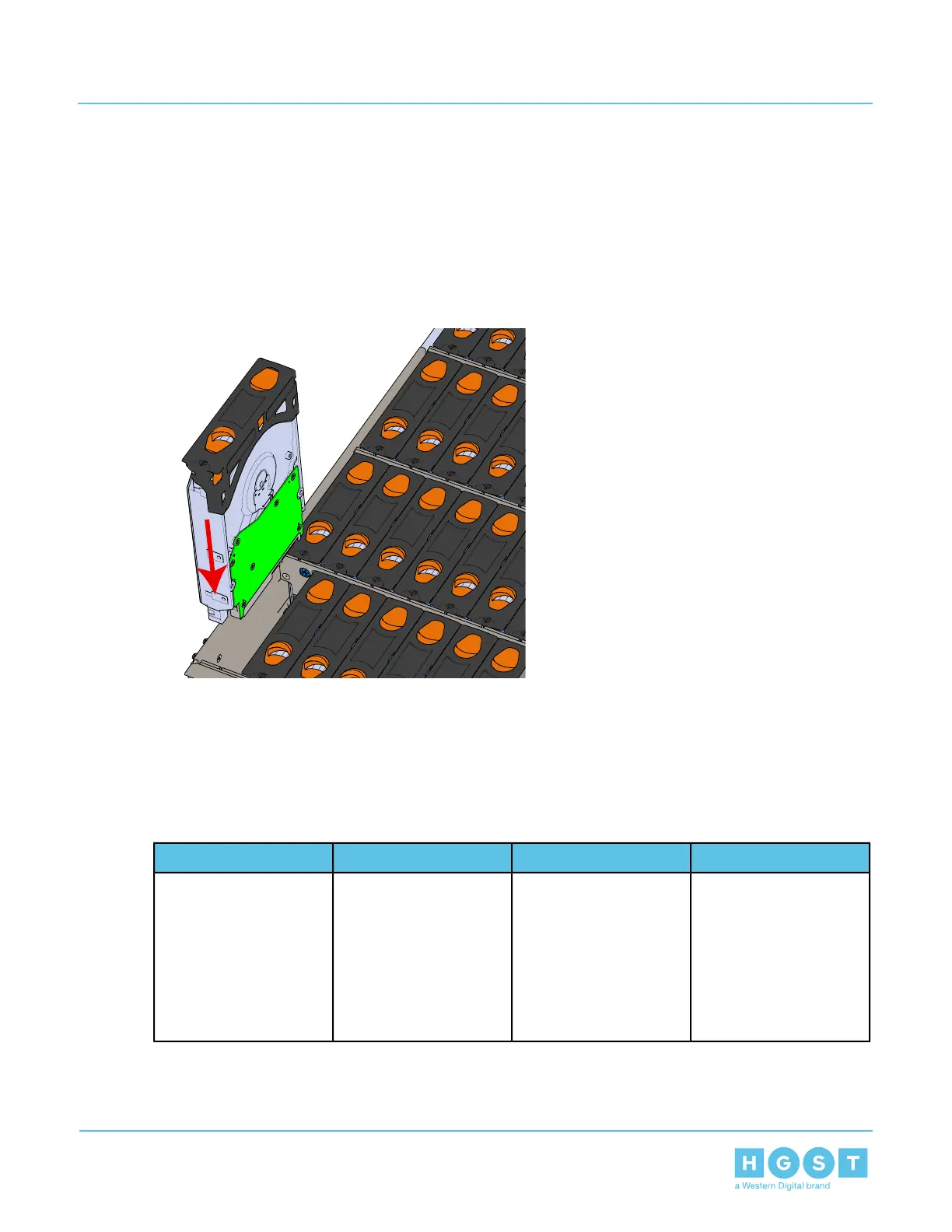

Figure 60: Installing a Drive Assembly
d) Pinch the latch release and carefully press downward to seat the Drive Assembly the rest of the way.
6. Push the enclosure back into the rack to ensure proper cooling.
4.7 CMA Replacement
Table 40: Replacement Procedure Info
Time Required# of People RequiredRequired PartsRequired Tools
15m1•• Low-Profile
M4 x 3.2mm
Philips screws
# 2 Philips
Screwdriver
• Cable Ties (for
configurations
with greater
than 10 total
cables)
• Tape Measure
1. Place both CMAs into service position.
71
4 Part Replacement
User Guide 4.7 CMA Replacement
