3.8.3 2.5" Drive Carrier Description

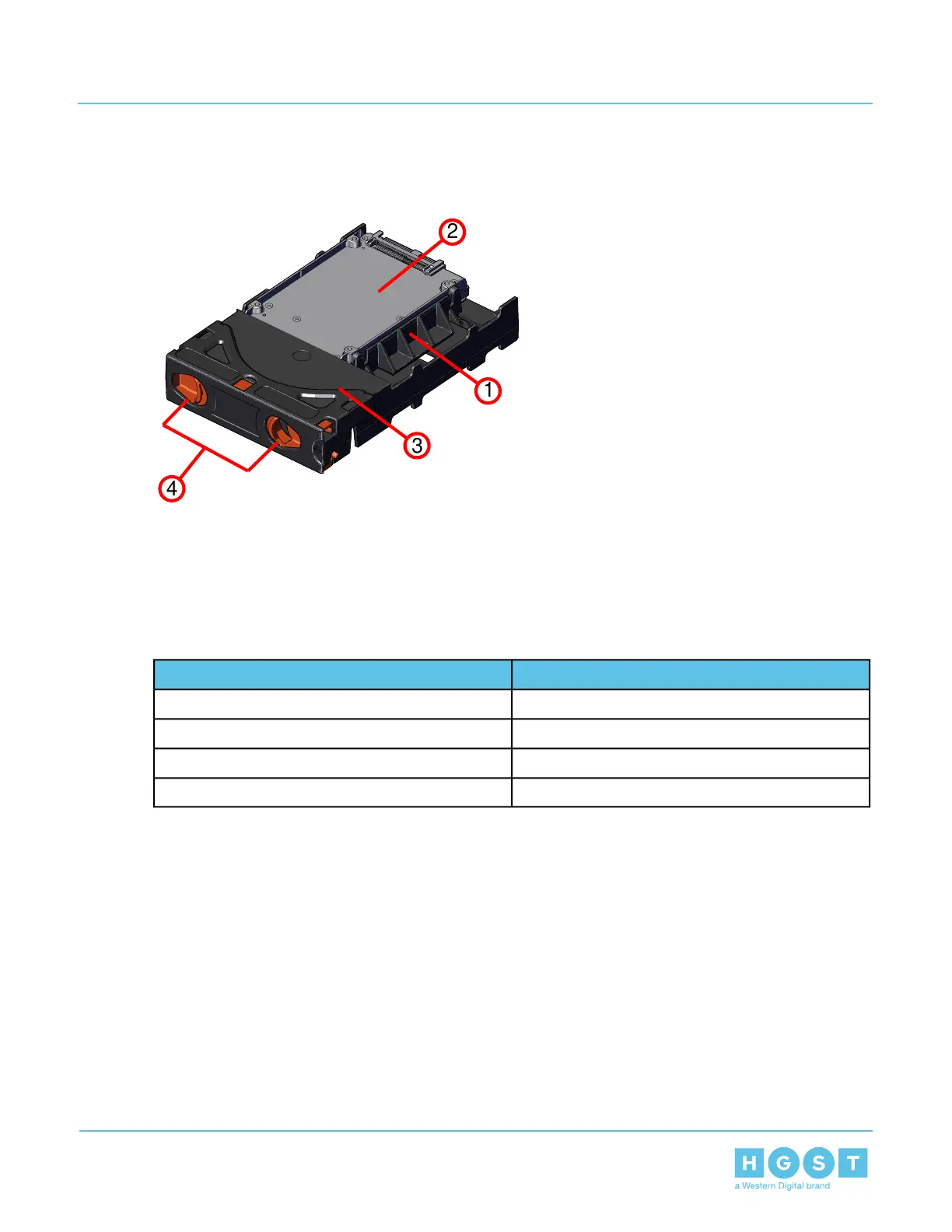

Figure 31: Overview Image
The 2.5" carrier assembly is used to adapt a 2.5" form factor data storage drive to the 3.5" drive slots in the
Ultrastar Data60 drive bays. This allows the enclosure to accommodate high speed SSD drives as its primary
data storage medium. The carrier operates by utilizing an innovative clamping mechanism. The 2.5" drive is
seated in the orientation shown the overview image. Then the clamp is inserted to apply pressure to the SSD
and secure it in place.
Table 33: SSD Features
FeatureNumber
Drive Holder Clamp1
SSD2
Carrier Shell3
Drive Latch Release4
3.8.3.1 Operating the 2.5" Drive Carrier
Follow these steps to operate the clamping mechanism and install a 2.5" drive in the carrier.
53
3 Component Overviews
User Guide 3.8 Drive Assembly Description
