The following section provides specific information necessary to install, service, and remove the Ultrastar
Data60. The installation of the Ultrastar Data60 requires two people and a space of 914.4mm / 36in. in front
of the installation space. The servicing of the enclosure requires one person and a minimum of 863.6mm /
34in. of space in front of the installation space. The removal of the enclosure requires two people, 914.4mm
/ 36in. of space in front of the installation space, and 24in. on either side of the enclosure for two people to
remove the enclosure.
Warning: The handles on the front of the chassis are not intended to be used to support the weight of
the Ultrastar Data60. Lifting the unit by the chassis handles or trying to support the unit on the handles
can cause them to fail. This can cause serious damage to the unit or serious bodily harm to those
handling the unit. Always team lift the chassis by gripping the underside of the unit, and never try to lift
a chassis that is filled with drives.

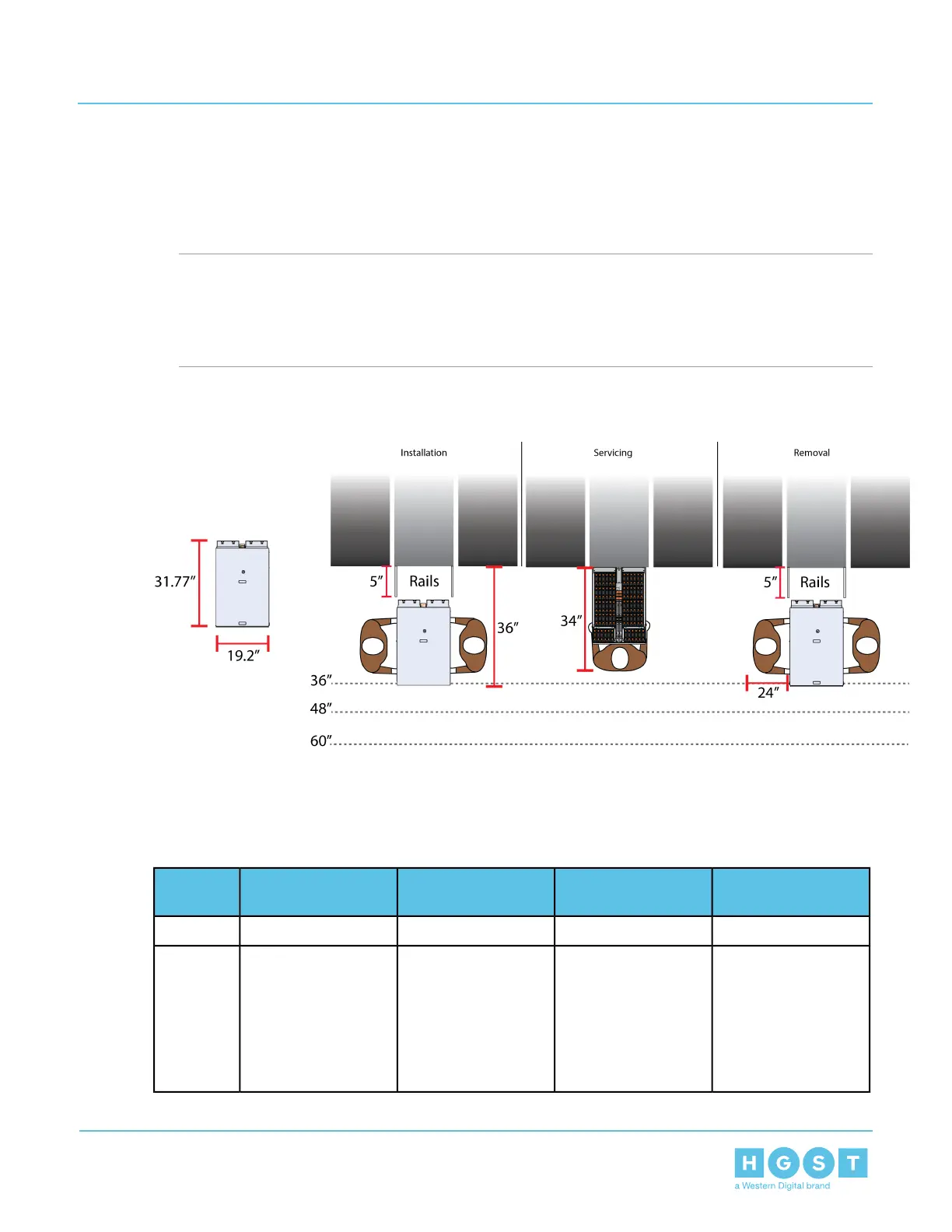

Figure 213: Installation, Servicing, and Removal
A.4.1 Compatible Hardware Configuration
The following table(s) list the approved hardware configurations for the Ultrastar Data60:
Table 65: Compatible Hardware Configuration 1
Additional Mounting
Bracket Hardware
PDU Mounting
Bracket
PDU (Vertical)RackParameter
VariousServer TechnologyServer TechnologyCRENLO/EMCORVendor
4 x M6 x 16 Hex Cap
Screws
KIT-MBVPT-1B (one
kit per PDU)
412-0761-11_STV-4501
412-0761-20_STV-4502
AS-160099-03
(Drawing Number
EMCOR 526121 Rev
5)
Part
Number
8 x M6 Fender
Washers
412-0761-23_STV-4503
4 x M6 Hex Nut with
Nylon Lock
215
A Site and System Operation Requirements
User Guide A.4 Ultrastar Data60 Rack Requirements
