Part NumberComponent
1EX04393.5 in. to 2.5 in. conversion Drive Carrier, Qty=1
1EX04293.5 in. Drive Blank, Qty=1
1EX1530Power Cable for PDU, C13-C14, 18AWG, 3m, Qty=1
1EX1161Dual Port 1/10/25GbE Unied Wire Adapter
1EX1533HD Mini-SAS to HD Mini-SAS, 3m, Qty=2
1.7 LEDs
1.7.1 Front and Rear IO LEDs
The Ultrastar Data60 has a number of LEDs on the exterior of the enclosure that display various system
statuses. There are three on the front and three on the rear that mirror each other and provide general status.
This allows the status of the enclosure to be visible from either side of the rack.

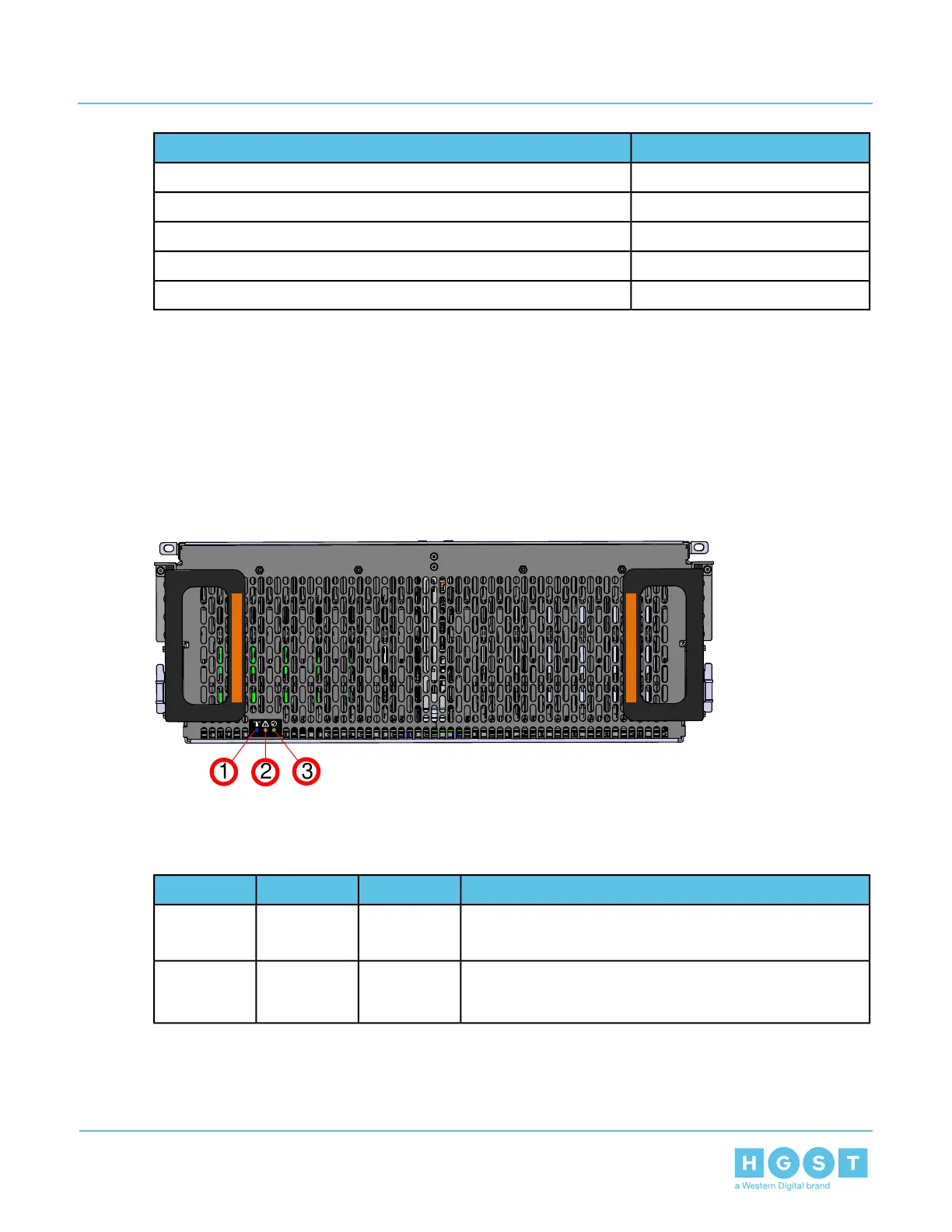

Figure 5: Front LEDs
From the rear there are the three enclosure status LEDs and LEDs on the Ethernet and SAS ports.
Table 7: Front LED Identification
BehaviorColorLED NameNumber
Blink @ 1 Hz – Blinks only when Identication has been
activated. Will blink when any component is identied.
BlueIdentify1
Blink @ 1 Hz –Enclosure has a fault
AmberFault2
Off – Enclosure has no fault
16
1 Overview
User Guide 1.7 LEDs
